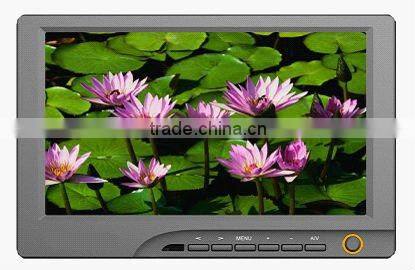

8" Touch LCD HDMI/DVI computer monitor
Model: KP8069NP/C/T (with touch)
Model: KP8069NP/C without touch function)
Function
4 or 5 wire resistive touch panel(optional)
HDMI/DVI input;
Touch screen control;
With VGA input, connecting directly to PC, as a Personal Computer;
With AV input, connecting directly to DVD player, as a car entertainment system;
With touch screen operation, can as a display terminal unit of industrial equipment.

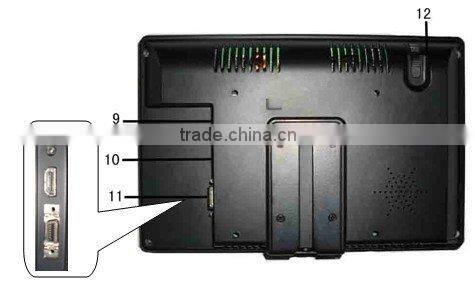

9. Power : DC 12V
10. HDMI input
11. 14P SKS input
12. Touch pen
Specification
Panel Size: 8" TFT LCD
Resolution: 800 x 480, up to 1,920 x 1,080 pixels
Touch Panel: 4-wire resistive (optional: 5-wire resistive)
Brightness: 250cd/m2
Contrast: 300:1
Viewing Angle: 130°/120°(H/V)
Input Voltage: DC 12V
Input Signal: PC(VGA), AV1, AV2, HDMI, DVI
Power Consumption: ≤8W
Audio Output: ≤1W
Size(LWD): 211×136×31mm
Weight: 560g

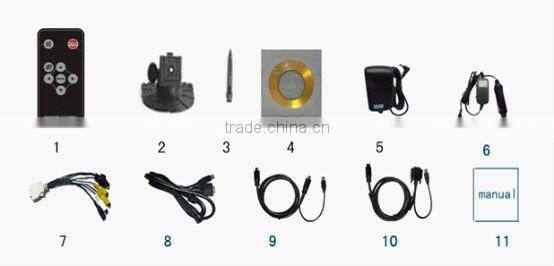

Accessories
VGA 9-Pin Cable 1 Piece
14-Pin SKS Cable 1 Piece
HDMI Signal Cable 1 Piece(optional)
DVI Line 24+5/DVI-D Cable 1 Piece(optional)
Standalone Bracket 1 Piece
Touch Pen 1 Piece (on the back of device)
Drive Disk 1 Piece
Remote Control 1 Piece
DC 12V Home Power 1 Piece
12V Car Power Adapter 1 Piece
Operation Manual 1 Piece
Our company produce USB monitor, camera monitor, porble computer monitor, portable lcd tv, and specially in satellite finder and oscilloscope.
