Home > Products > Intelligent Video Analytics > 23x Optic Intelligent PTZ Camera

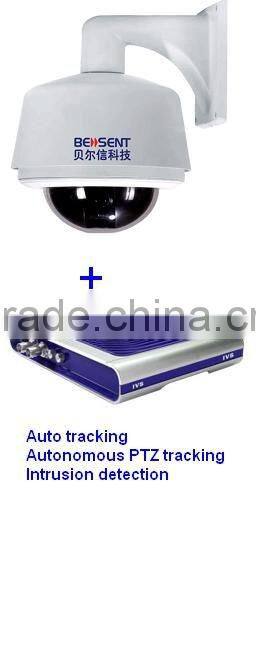

23x Optic Intelligent PTZ Camera
- 5000 Set / Sets per Month
- Shenzhen
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Bellsent | Model Number: | BE-PT423W |
Type: | Other, High speed dome camera | Style: | Other, High Speed Dome camera | Sensor: | CCD |
Technology: | Pan / Tilt / Zoom | Special Features: | Waterproof / Weatherproof |
Product Description
Product Features
• Multiple Integrated Camera/Optics Packages
• Graceful outlook, Vandal proof available
• System preheat in low temperature environment
• Programmable Multi-protocol
• 360° continuous pan, 180° Tilt “Auto Flip”
• 6 tours (27 presets/tour), 4 patterns, 4 cruise
• 8 Privacy Mask, 8 titled zones
• Port for Software up-grade
• Built-in Alarm, 7 Inputs/2 Outputs
• Built-in Surge and Lightning Protection
• Speed Amplify to fit different control keyboard
• Auto Running Memory Against Power Outage
• Auto Running Resume after Manual Operation
• On-Screen display for compass and tilt angle,
System and environment temperature, fan status
Dome Drive Unit
• 360° continuous pan, 180°Tilt “Auto Flip”
• Discreet Liner with Sealed Fixed Bubble•
• 220 presets, ±0.1° preset accuracy
• 300°/s Pan/Tilt Preset Speed
• 6 tours max. 27 presets/tour
• 6 patterns, 4 cruises, 8 titled zones
• 8 privacy mask
• OSD Menu password protection
• Built-in alarm, 7 input/2 output
• Multiple RS485 protocol/Coaxial
• Locations of Labels and On-Screen Displays
• Software Up-gradable
• FIFO alarm priority levels
• Alarm driven Pattern, preset etc.
• Position Resume After Alarm
• Variable Cruise Speed 0.1-150°/sec
• OSD Menu for Programmable Functions
• Proportional Pan/Tilt Speed
• Vertical Tilt Unobstructed 0° to -90°
• Auto Running Memory against Power Outage
• Auto Running Resume after Manual Operation
• System preheat before camera power on
• On-Screen display for compass and tilt
Camera/Optics
Image Sensor | 1/4” Exview HAD CCD |
Effective pixels | 795×596 (PAL)/ 811× 508 (NTSC) |
Resolution | 480TVL /540TVL |
Lens | 23X f=3.6~82.8mm F1.6~F3.7 |
Digital Zoom | 23X10 |
Zoom Speed | 3.9s~6.3s |
Angle of View | 54°~2.5° |
Sync system | Internal/external |
Min. Illumination | 0.05Lux (color), 0.01Lux(BW) |
S/N Ratio | >50db |
Iris | Auto/Manual |
White Balance | Auto/Manual |
Gain | Auto |
AE Control | Auto/Manual |
BLC | On/Off |
Privacy Mask | Yes |
Focusing system | Auto/Manual |
Video Output | 1.0±0.2Vp-p |
