toilet tissue making machine
toilet tissue making machine description
1.International advanced PLC computer programming technology.
2.Frequency control, electronic brake and touch-screen interface operation system.
3.Coreless rewinding system.
4.Automatic trimming, adhesive, sealing, punching, auto feeding, removing shaft and squashing are integrated in one.
toilet tissue making machine main parameters
| Name of machine | Tissue Paper Making Machine | |||||
| Model | HY-1092 | HY-1575 | HY-1880 | HY-2400 | HY-2600 | HY-2800 |
| Width of raw paper | 1300mm | 1800mm | 2200mm | 2350mm | 2550mm | 2750mm |
| Outer diameter of raw paper | 1100mm(adjustable) | |||||
| Diameter of finished products | 60-120mm(customizable) | |||||
| Inner diameter of core(raw paper ) | 76.5mm(adjustable) | |||||
| Programmable controller | PLC computer programming | |||||
| Production speed | 150-200m/min | |||||
| Bottom embossing roller | Felt roller, wool roller, rubber roller, etc.(customizable) | |||||
| Embossment | Single embossment, double embossment, steel to steel embossment, etc.(customizable) | |||||
| Mechanical drive | Continuously variable transmission(CVT),main engine is without belt drive, ensuring accuracy pitch and length. | |||||
| Unwinding stand | 1-3 layer | |||||
| Braking system | Electronic brake, pneumatic control. | |||||
| Main power | 3.5-11kw | |||||
| Overall dimension | 6200mm*3200mm*1800mm(vary with different models) | |||||
| Weight | 3000-9000kg | |||||
toilet tissue making machine advantage
1. Advanced PLC computer programming technology is applied to full automatic toilet paper rewinding machine. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.
2. It is equipped with frequency control, electronic brake(EABS), and touch-screen interface operation system. Automatic trimming, gluing, sealing, punching, auto feeding, removing shaft and squashing are integrated in one. Ensuring lower consumption when the roll paper is feed into band-sawing machine. So products are of high grade and high efficiency.
3. It is equipped with coreless rewinding system, reducing labor costs, making products more beautiful.
4. With high precision screwy perforation knife. With 4 perforation blades to make low noise and high definition when perforating. The perforating pitch is controlled by gearbox.
5. Automatic detection of paper break and wrap up, to guarantee the high quality of the finished rolls even in the high speed operation.
6. Coreless rewinding system has changed traditional method to take out the core to make high quality solid coreless roller. Reducing the manpower.
7. With three-layer horizontal unwinding stand, pneumatic feeding system. Each roll of raw paper has its individual control unit for tension adjusting device.
8. The web can be threaded on the machine by the two jog buttons, it is more safe and easier to feed the web.

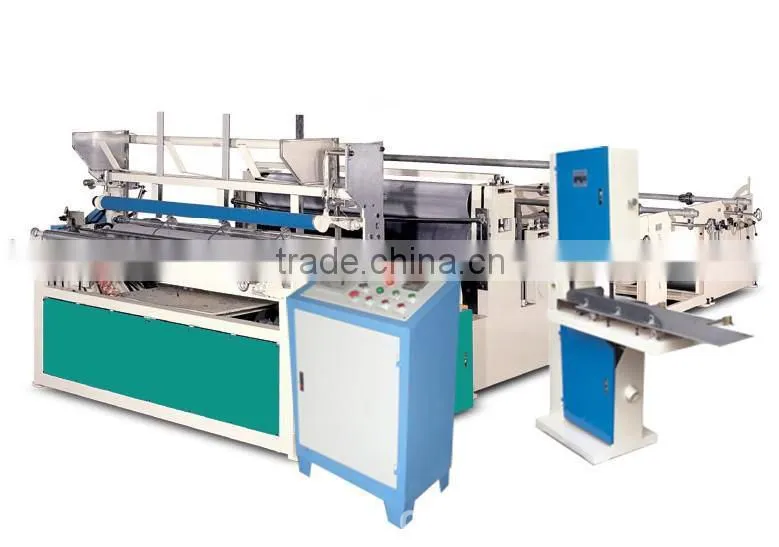

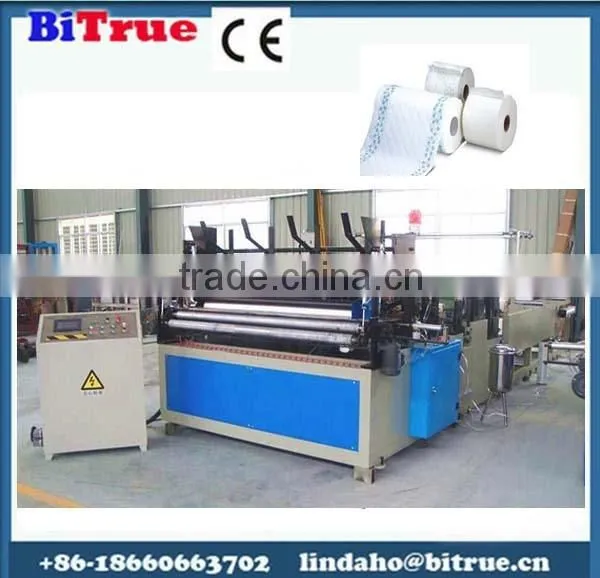

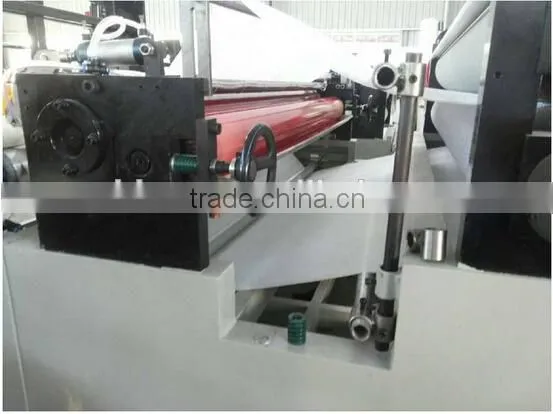

toilet tissue making machine picture
toilet tissue making machine feature

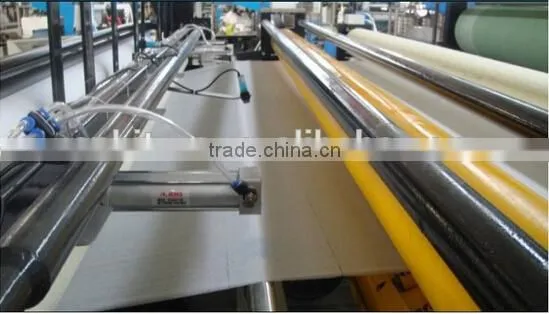

1. Horizontal type unwinding stands: pneumatic wide belt to feed paper, each jumbo roll has independent tension adjustor and left-right adjusting device.
2. Pneumatic lifting the jumbo roll function greatly lightens the labor intensity of the workers.
3. Auto stop machine function when material is used up will minimize the waste of raw material.
4. Continue adding roll core alarming device.
5. Rewinding Technology: The finished products from earlier loosening to later tightening when rewinding, which has solved the problem of the separation phenomenon between roll paper and roll core of the finished product after long time’s storage. High speed rewinding can reach the speed of 180-200m/min,that is to say, it can push out the log after rewinding in 8-12 seconds.( perforating distance is 110mm, the sheet number set as 200, it is complete the rewinding process in 14 seconds).
6. Auto edge trimming, glue spraying and sealing synchronously in one time.
7. Use the up-threading way to winding the finished product. Adopts front and back jogging button to guide paper,

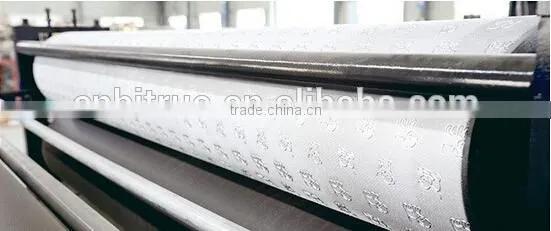

8. Double Embossment, compare with Single embossment, this type can make the paper
softer, both sides of the finished products have the same effect, and when making the
product with the same diameter, the weight can reduce by over 15%.

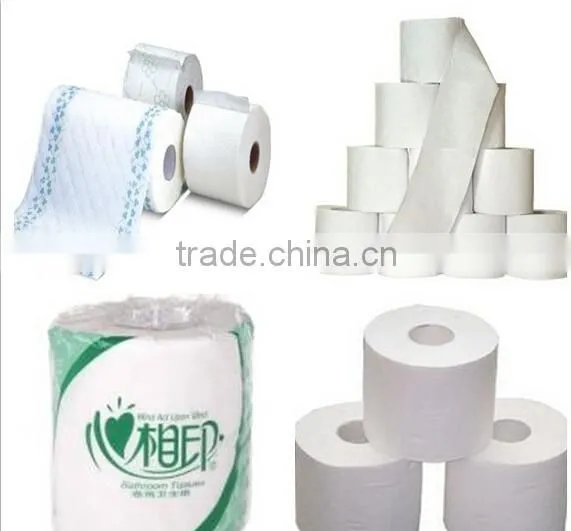

toilet tissue making machine sample
packaging and shipping
