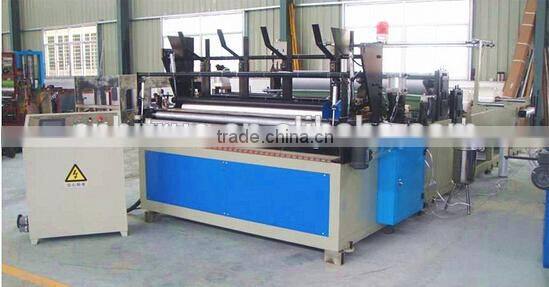

toilet tissue paper making machine
toilet tissue paper making machine description
Toilet tissue paper making machine, adopting with advanced PLC programming technology, and variable speed adjustment, electronic brake and human-machine interface operation table. The multi functions mounting on this machine has won the favor and credit among users by their excellent performance.
toilet tissue paper making machine main parameters
Model |
1575B |
Jumbo Roll Max. Width |
1750mm |
Jumbo Roll Diameter |
φ1100mm |
Jumbo Roll Inner Diameter |
76.2mm ( 3 inches ) Other size can be specified |
Perforation Distance |
4 Blades ( 115mm,230mm ) Other size can be specified |
Finished Product Diameter |
φ80-φ140mm |
Finishes Product Core Diameter |
φ38-φ48mm |
Production Speed |
0~180m/min |
Program Controller |
PLC (Delta) |
Unwind Stands |
2 stands ( Need to be specified) |
Pneumatic System |
0.5-0.8MPa ( Provide by end-user) |
Main Power |
18kw |
Dimension |
7800x3000x1720mm (L x W x H) |
Weight |
3.5~4.5T |
Jumbo Roll Layers |
1~3 ply, 14~30gsm toilet rolls |
Edge-Line Embossing |
Steel to steel (Pneumatic control) (can be specified) |
Embossment |
Big diameter rollers, Steel to Rubber, Double Embossment (can be specified ) |
Voltage & Frequency |
380V, 50Hz, 3 Phases. |
toilet tissue paper making machine advantage
1. Automatic/Full-servo/ Semi-servo system with less worker required.
2. All machining parts are CNC made by our own factory - Quality guaranteed with low repair rate make you a stable production.
3. Applied dumbbell device to the Cotton forming system to prevent bandy legs caused, add an extra selling points for your product.
4. Remote assistance dealing with software problem to give you the efficient after-sale service with no production delayed.
5-.Professional team with 17 years experience, available to various type & appropriate scheme for different countries(Asia,Mid-east,Russia,India,South Africa etc).
toilet tissue paper making machine features:
1. This Toilet Tissue Paper Making Machine can manufacture toilet rolls with core and without core according to your specific requirement.
2. There is coreless unit in our machine. Our bump making machine can manufacture toilet rolls without core according to your specific requirement. In this way, It’s no necessary to purchase Automatic Toilet Core Making Machine and It can reduce investment amount.
With Log Stacker, This line can manufacture toilet rolls continuously and non-stop. It will increase production efficiency.
toilet tissue paper making machine sample
packaging and shipping
