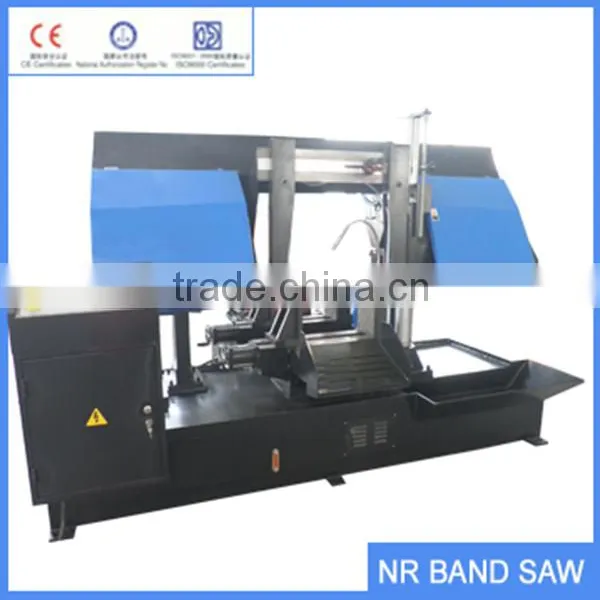

GS-500 cutting steel tool automatic metal cutting saw cut machine
1.CE approved ISO verified
2.PLC control unit,auto control
3.Metal straight cutting
4.Double columns for higher stability
Product advantage
Capacity Round |
500mm |
Capacity Rectangular |
500*500 mm |
Blade Size (Length/Width/Thickness) |
5550*41*1.3 mm |
Cutting Length Control |
Controlled by the grating guage |
Power Requirement |
380V,50Hz or customized |
Main Motor Rate |
5.5KW |
| Oil Pump motor rate | 1.5KW |
Coolant Pump rate |
0.12KW |
Maximum Vise Opening |
500 mm |
Blade speed(m/min) |
36/54/72,Inverter |
Vise action Method |
Clamping vise, hydraulic |
Shipping dimensions |
2800*2300*1850MM |
1.PLC control systerm ,which can accommodate a grop or several groups of dataand continuous cutting.
2.Manual and automatic duplex option.
3.Touchscreen operation, the man-machine interface to replace the traditionalbutton control panel.
Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade . Band saws are a cost effective way to cut different material in many different shapes.
High quality plywood package can give the best protection to bandsaw machine during the long tranpotation.
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
| Q1: What is your MOQ? |
| A1: Our MOQ is one set. |
| Q2: Can I change the motor voltage and frequency? |
| A2: Yes, voltage and frequency are made as request. |
| Q3: What is your Delivery time? |
| A3: Usually, it's 15 working days after receiving your payment. |
| Q4: Can I use my own logo? |
| A4: Yes, OEM is always be welcome. |
| Q5:What payment method can you accept? |
| A5: T/T, L/C, Escrow |
| Q6: What is your quality guarantee? |
|
A6: Every machine will be strictly inspected and tested before shipping to clients. Besides, we offer 2 years warranty for the band saw machine since the delivery date. |
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
