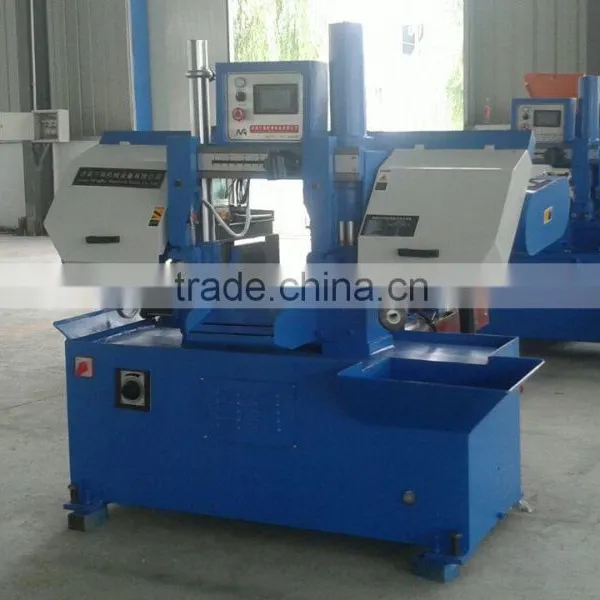

GS260 fully automatic double column band saw machine with auto shuttle table

Specifications

CE approved
Suit bundle cutting capacity260mm
PLC controls
band saw machine with auto shuttle table
Designed & made in China

GS260 fully automatic double column band saw machine with auto shuttle table



STANDARD FEATURES:

* Quality made in China

* 2 Rigid & Chrome column for Stable & accurate cutting

* Quick and Easy Blade Speed Change

* Automatic cut cycle, no miter cutting,straight cutting only.

* Automatic step by step material feed

* Hydraulically controlled dual vise clamping system -2 step

* Cutting feed rate set & controlled by frequency inverter

* Bi-Metal Blade for better cutting,low cost and high efficiecy

* Heavy duty cast iron gear box designed for band sawing machines, with precision machined worm, phosphorous bronze worm gear, taper roller bearings and oil bath lubrication

* Carbide Guides with Roller Backups

* Auxiliary lifting cylinders

* Manually controlled Blade Tension

* Manual control on saw blade up, saw blade down, saw blade action

* Built-In Coolant System, Vibration flood coolant system to both saw guides

* Blade Powered, Rotary Cleaning Brush

* Servo Motors

* Roller stock table

* Continuous cutting until the material is out of stock on the machine bed

* Blade cutting speed controlled by speed-adjusting valve on the control pannel.

* Blade linear Speed Controlled by Pulley & V-belt

* Low Voltage/Overload Protection

* Work Lights for nighttime or lightless day.

* Safety Guards, Owners Manual

* Hydraulic oil excluded and gear oil included

* Need special features? We can customize these machines
