high pressure engine
high pressure engine description
1.Based on advanced software analysis, with optimization design, F series diesel engine is more
reliability on structure and cooling system.
2.Optimize the fuel system and intake&exhaust system, energy-saving and fuel-efficient.
3.Compact structure, small size and light weight.
high pressure engine parameter
| Model | 160F | 165F | 170F | 178F | 178FA | 186F | 186FA |
| Engine Type | single-cylinder ,vertical,air cooled,4-stroke | ||||||
| Combustion chamber | Swirl | Direct injection | |||||
| Bore(mm) | 60 | 65 | 70 | 78 | 86 | ||
| Stroke(mm) | 60 | 75 | 62 | 64 | 70 | 72 | |
| Displacement(L) | 0.17 | 0.199 | 0.289 | 0.296 | 0.305 | 0.406 | 0.418 |
| Rated power/seed(kw/r/min) | 1.62/2600 | 2.02/2600 | 3.23/2600 |
3.68/3000 4.0/3600 |
5.7/3000 6.3/3600 |
||
| Specific fuel consumption at the rated conditionv(g/kw.h) | ≤339.9 | ≤326.9 | ≤304.2 |
≤280 ≤310 |
≤280 ≤310 |
||
| Idle speed(r/min) | ≤1300(except the special customer requirement) | ||||||
| Compression ratio | 21 | 23 | 20 | 19 | |||
| Starting system | Hand cranking | Recoil or electric | |||||
| Net weight(kg) | 25 | 28 | 41 | 33 | 47 | ||
| Dimension(mm) | 315×355×393 | 370×330×418 | 540×380×410 | 385×420×450 | 420×440×495 | ||
high pressure engine feature
- Unique drive system
The new design of drive gear is incorporated into the latest KATM diesel engine which will greatlt reduce vibration and noise.
- Fuel system technology
The miniaturized fuel injection system assure high efficiency operation. The precision machined and precisely timed injection pump and direct-injection design leads to lower fuel consumption and reduced tailpipe emissions.
- Advanced noise-reduce design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system, intake noise is reduced to a low level. The design of the cylinder block, engine cover, and valve train all combine to reduce engine noise levels.
high pressure engine advantage
1. Portable gasoline generator
2. Economic, low fuel consumption.
3. Compact in structure, low in noise & pollution and high in efficiency.
4. Stable voltage and frequency.
5. Overload protection for safety operation.
6. Exceptional performance at reasonable price.
7. High quality power output
8. Qualified mechanical seal device
9.Compact in structure and convenient for carry
10. Easy starting by both recoil starting and electric starting
11.Special balancer shaft inside reduces the vibration to the minimum level
high pressure engine application
Small agricultural machines as power tiller, irrigation equipment, generator sets, small transportation vehicles, walking tractor,as well as other areas.

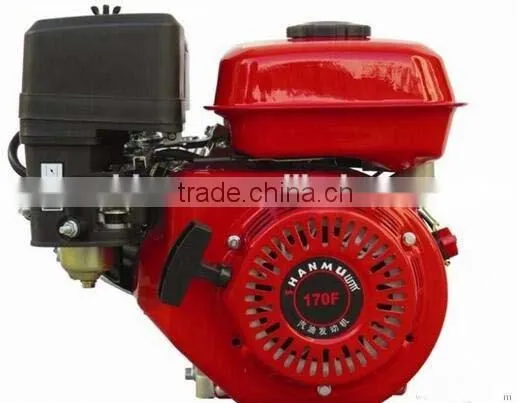

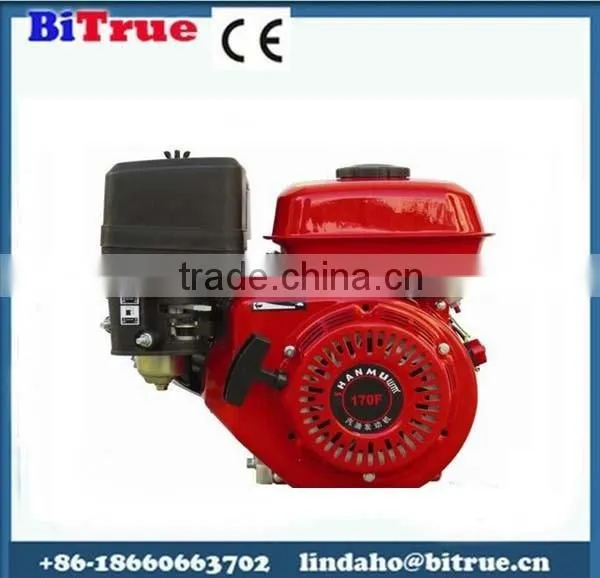

high pressure engine picture
Packaging and shipping
Packaging:
1. Plastic Foam
2. Wooden Case
Shipping
1. Plastic for full container load
2. Wooden Case for Less container load
our services
1. Warranty:
Our all products with 1 year warranty.
2. OEM Acceptable:
We accept your brand and customize packing carton available
In follow orders, we can provide spare parts charge lower price.
3. Samples:
Sample is available for checking our quality.
4. Delivery time:
Either sample order or batch order.
