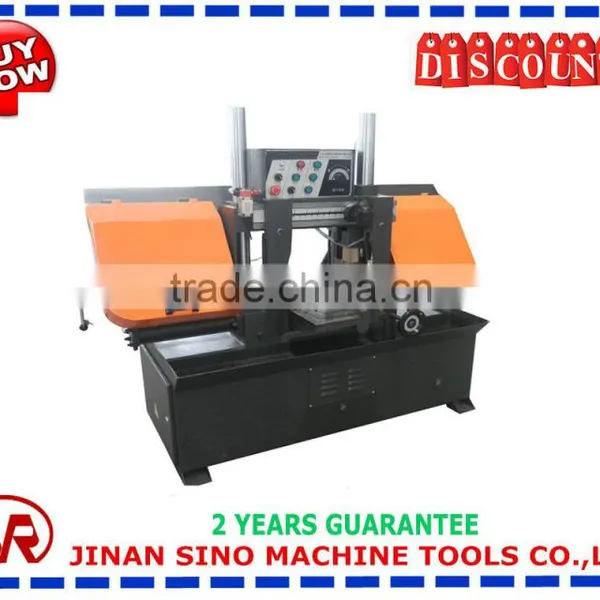

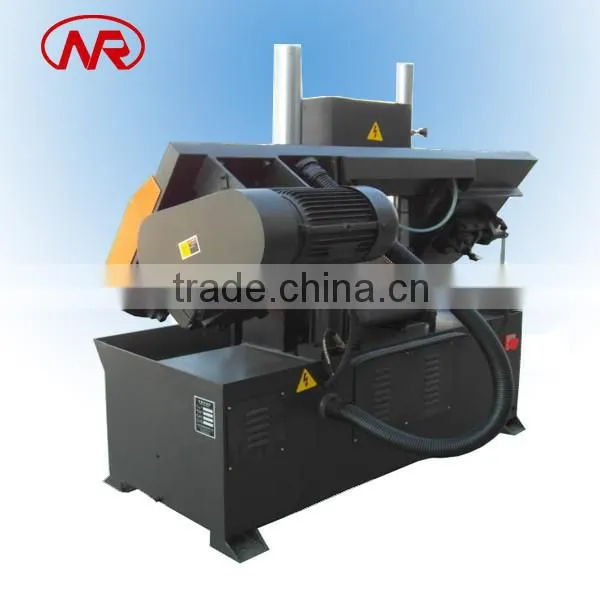

Horizontal Precision Metal Cutting Band Saw Machine GZ4230
Advantages and Features:
| 2 Rigid & Chrome column for Stable & accurate cutting |
| Quick and Easy Blade Speed Change |
| Automatic cut cycle, no miter cutting,straight cutting only |
| Automatic step by step material feed |
| Hydraulically controlled dual vise clamping system -2 step |
| Cutting feed rate set & controlled by frequency inverter |
| Bi-Metal Blade for better cutting,low cost and high efficiecy |
| Carbide Guides with Roller Backups |
| Auxiliary lifting cylinders |
| Manually controlled Blade Tension |
| Manual control on saw blade up, saw blade down, saw blade action |
| Built-In Coolant System, Vibration flood coolant system to both saw guides |
Detailed Specifications:
Capacity Round: |
300mm |
Capacity Rectangular: |
300 X 300 mm |
Blade Size (Length/Width/Thickness) |
3505×27×0.9 mm |
Power supply |
380V,50Hz |
Main Motor Rate |
3.0KW |
Oil Pump motor rate |
0.55KW |
Coolant Pump rate |
0.04KW |
Blade speed(m/min): |
40/60/80,Inverter |
Maximum Vise Opening: |
340 mm |
Shipping dimensions |
1700X1050X1400mm |
Shipping Gross Weight |
880KG each set |
Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade .
High quality plywood package can give the best protection to bandsaw machine during the long tranpotation.
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
| Q1: What is your MOQ? |
| A1: Our MOQ is one set. |
| Q2: Can I change the motor voltage and frequency? |
| A2: Yes, voltage and frequency are made as request. |
| Q3: What is your Delivery time? |
| A3: Usually, it's 15 working days after receiving your payment. |
| Q4: Can I use my own logo? |
| A4: Yes, OEM is always be welcome. |
| Q5:What payment method can you accept? |
| A5: T/T, L/C, Escrow |
| Q6: What is your quality guarantee? |
|
A6: Every machine will be strictly inspected and tested before shipping to clients. Besides, we offer 2 years warranty for the band saw machine since the delivery date. |
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
