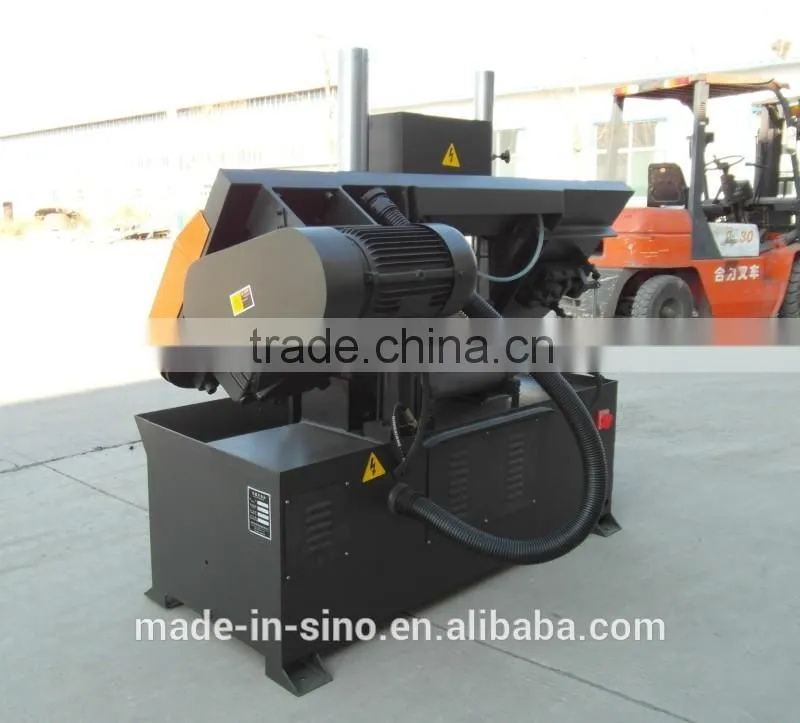

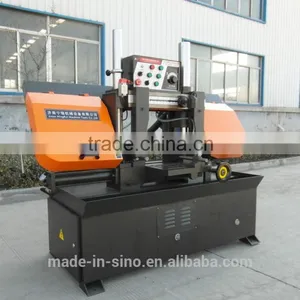

Help CenterHorizontal Auto Feed Band Saw Machine
Related Products
-
China Saw Double Column Hydraulic Tools Horizontal Metal Cut SawUS$ 2,000 - 3,000MOQ: 1 Set -
China Double Column Hydraulic Horizontal Cutting Tools Manufacturers Band Saw MachineUS$ 7,000 - 8,000MOQ: 1 Set
-
Band Sawing Machine Manufactory Band Saw Made in ChinaUS$ 1 - 9,999MOQ: 1 Set
-
Hot Production Horizontal Band Saw Metal Cutting Fully Hydraulic Band Saw Machine GZ4230US$ 2,300 - 3,100MOQ: 1 Set
-
12" Cutting Capacity Band Saw GZ4230US$ 1 - 9,999MOQ: 1 Set
1. horizontal auto feed band saw
2.CE & ISO Certified

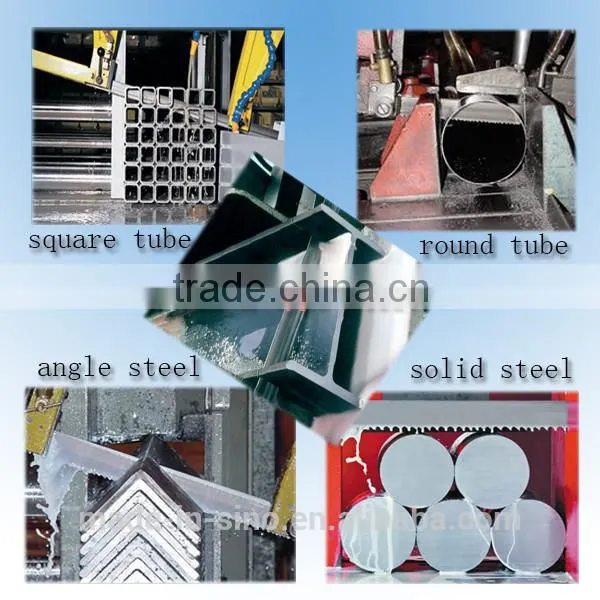

3.Metal staight cutting
4.Cutting capacity 300mm
5.High speed & efficiency
Max Cutting Capacity (Round): |
300mm |
Mas Cutting Capacity (Square): |
3000 X 300 mm |
Blade Size (H/W/L): |
3505×27×0.9 mm |
Blade speed(m/min): |
40/60/80,Inverter |
Maximum Vise Opening: |
320 mm |

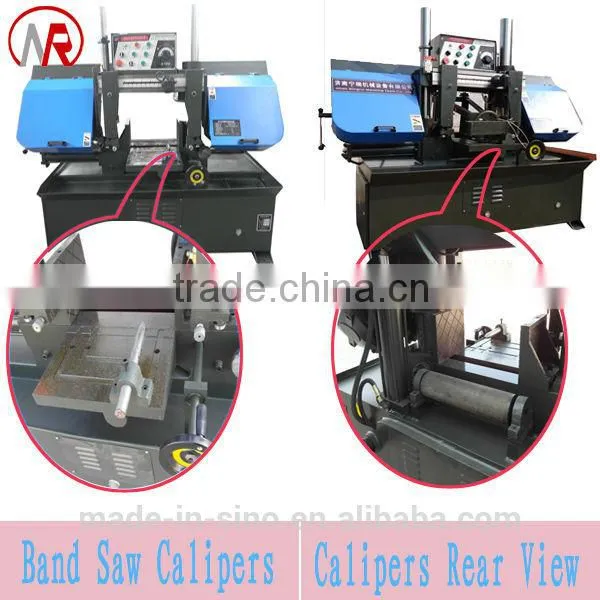

Vise action Method: |
2 Clamping vises,1 fixed on the machine bench & another 1 movable, hydraulic & mechanical |
Blade Guide: |
Carbide / Roller |
Descent Control: |
Pressure Assist Hydraulic |
Return: |
Hydraulic |
Blade’s Drive: |
Belt/Pulley |
Power Requirement |
380V,440V or optional, 50 or 60Hz |
Main Motor Rate: |
2.2 KW |
Oil pump motor: |
0.55KW |
Coolant motor: |
0.04KW |
Band Saw blade wheel: |
Cast Iron |
Machine Dimensions (L/W/H) |
1700 x 900 x 1400mm |
Packaging: |
Plywood boxes against moisture & rainwater for long distance inland & Ocean transportation |
Machine Weight |
850KG |
Excellent and professional service
| 1.We are a professional manufacturer engaged in the research, development, production, sale |
| and service of band saw machinery. |

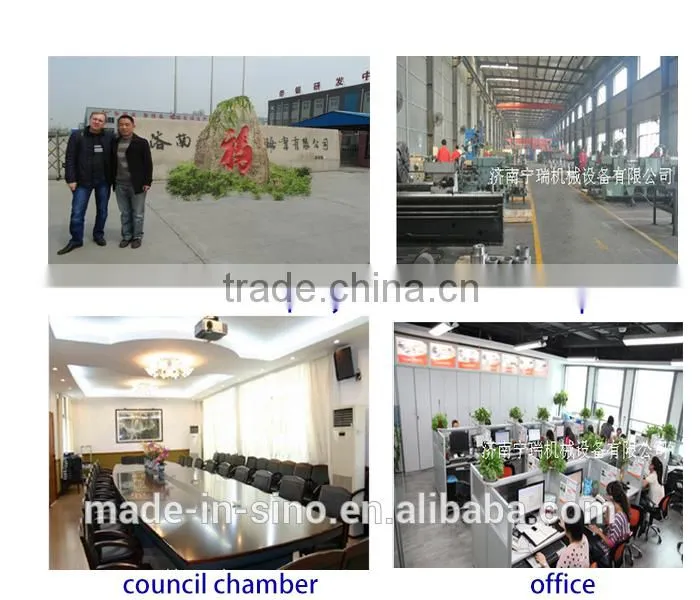

Production capacity
Our company have a series of advanced equipment including digital controlledlathe,automatic |
cutting machine and centerless grinding. |
Quality control
The passing rate of finished product is more than 99% . Every product need to be checked by |
by many processes. |
Comprehensive service
We have a good engineer team who can design kinds of products according to customer requirements . |
We have been in this field for 17 years, covering ovearseas market of 30 different countries . |
