GZ4230 Double Column Hydraulic Horizontal Band saw machine timber Band Saw Machine
- 100 Set / Sets per Month
- Qingdao port or Tianjin port China
- T/T L/C D/P D/A Credit Card PayPal
-
Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
-
Best price cnc table plasma cutting machine with water table
-
High-power cnc plasma cutting machine 1530
-
REBOUND CNC table plasma cutting machine for metal 1.5x3m
-
REBOUND CNC new automatic plasma cutting machine with good price
-
table cnc best price modern plasma cutting machine for stainless
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | NR band saw machine |
| Model Number: | GZ4230 | Voltage: | 380V 50HZ | Rated Power: | 2.2kw |
| Dimension(L*W*H): | 1700*900*1400mm | Weight: | 680kg | Certification: | CE & ISO9001 |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

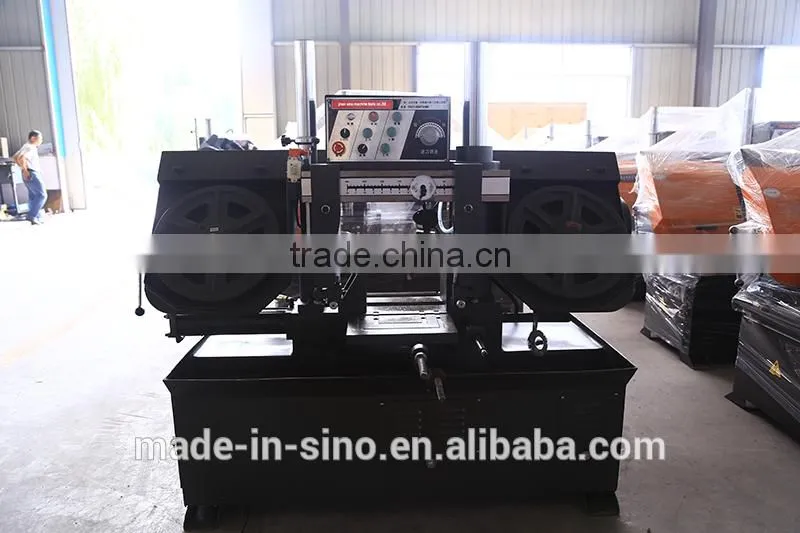

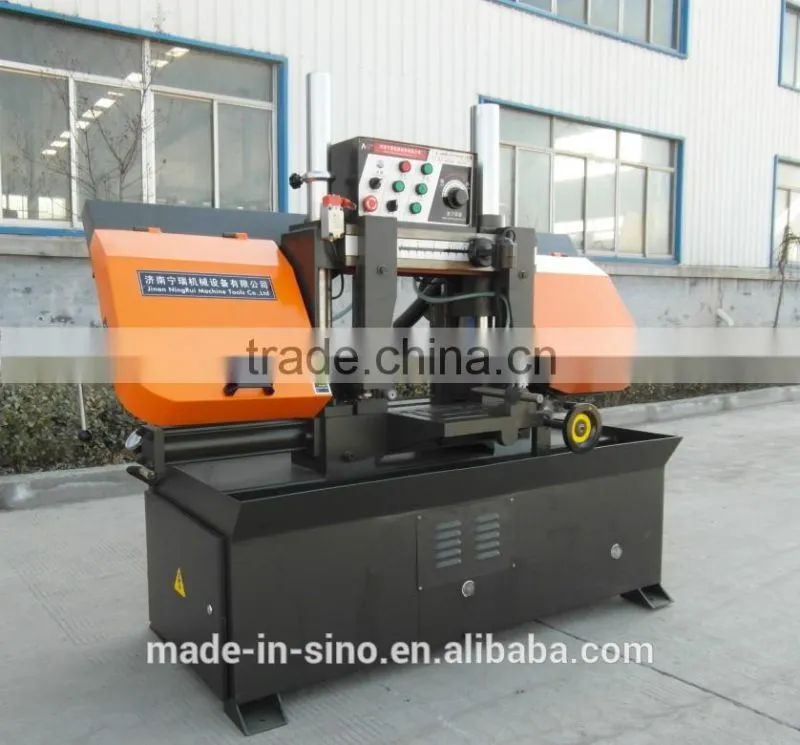

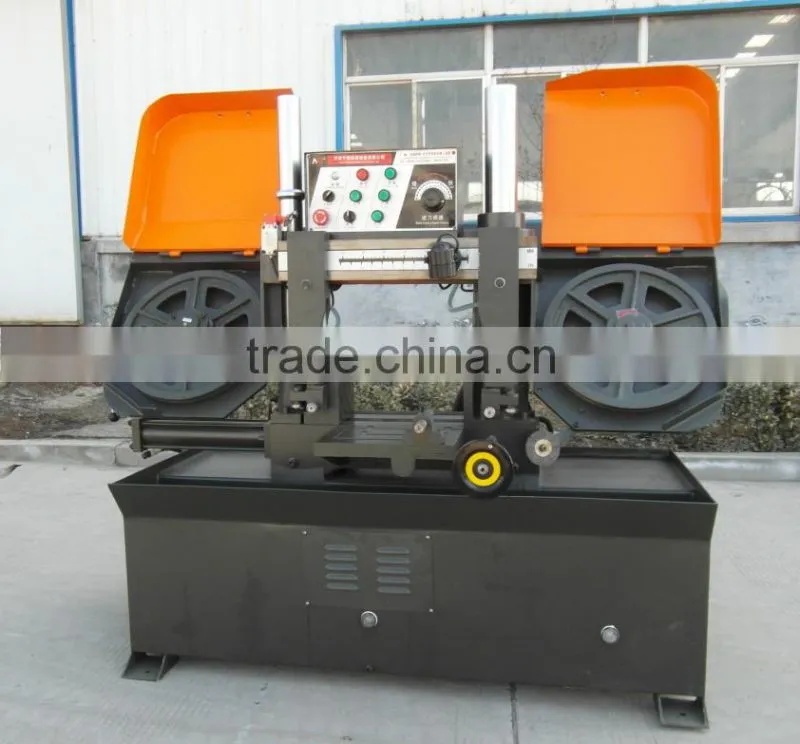

GZ4230 Double Column Hydraulic Horizontal Band saw machine timber Band Saw Machine
Main features:
1.With hydraulic system to control the cutting speed ,variable speed
2.Useful guide system ,to keep the blade can be use with long time
3.Double column structure ,steady operations
4.Steady cutting ,high accuracy
5.Hydraulic claming, semi-automatic control,sawing high efficiency
Capacity Round: | 300mm |
Capacity Rectangular: | 300 X 300 mm |
Blade Size (Length/Width/Thickness): | 3505×27×0.9 mm |
Power supply | 380V,50Hz |
Main Motor Rate | 2.2KW |
Oil Pump motor rate | 0.42KW |
Coolant Pump rate | 0.04KW |
Blade speed(m/min): | 40/60/80,Inverter |
Blade Cleaning | Chip brsuh driven by motor |
Maximum Vise Opening: | 300 mm |
Shipping dimensions | 1700X900X1400MM |
Shipping Gross Weight | 680KG each set |
| 2 Rigid & Chrome column for Stable & accurate cutting |
| Quick and Easy Blade Speed Change |
| Automatic cut cycle, no miter cutting,straight cutting only |
| Automatic step by step material feed |
| Hydraulically controlled dual vise clamping system -2 step |
| Cutting feed rate set & controlled by frequency inverter |
| Bi-Metal Blade for better cutting,low cost and high efficiecy |
| Carbide Guides with Roller Backups |
| Auxiliary lifting cylinders |
| Manually controlled Blade Tension |
| Manual control on saw blade up, saw blade down, saw blade action |
| Built-In Coolant System, Vibration flood coolant system to both saw guides |

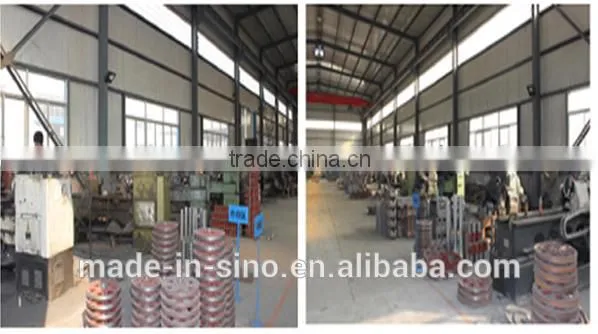

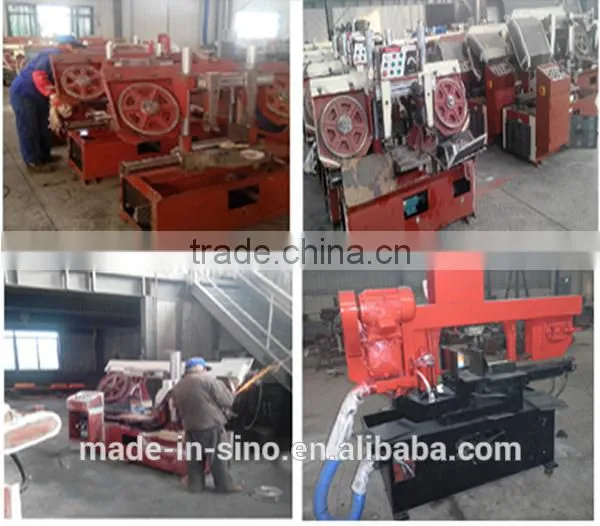

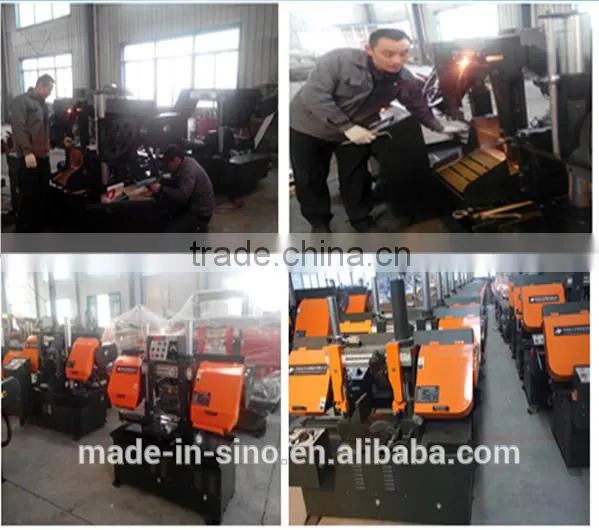

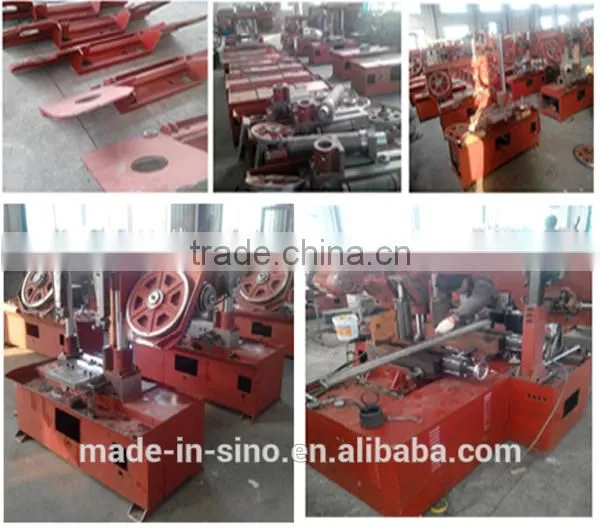

We are the professional metal band sawing machine manufacturer from china.we began our business in the year of 1998.Unitll now we have 2 brands-NR&JF,we have many years experience in manufacturing metal band sawing machine,all our products have been CE&ISO certificated.we have the strong capacity in R&D,Design and manufacturing.our main products include two-column band sawing machine,angle band sawing machine,NC band sawing machine,Vertical band sawing machine and spectral grinding machine,etc.with advanced technology and competitive prices,our products sell well in china as well in the world .
Band Saw Shipping:
1.By Air or by Sea for batch goods, for FCL; Airport/ Port receiving |
| 2.Customers specifying freight forwarder or negotiable shipping methods! |
| 3.Delivery Time: within 25 days for batch band saw machine. |
Payment Terms
| 1.payment:Payment: T/T, Western Union, MoneyGram |
| 2.30% deposits; 70% balance before delivery. |
| 3. MOQ:one set |
| 4.Warranty : 3 years. |
| 5.Package Information: Plastic film wraped, Steel/plywood box |
1. 24 hours service on Internet and Telephone, free instructions and problem solving
2. Free training to make sure a master of the operating of cnc router for the person who come to our factory
Finally:
Thanks and best regards!
