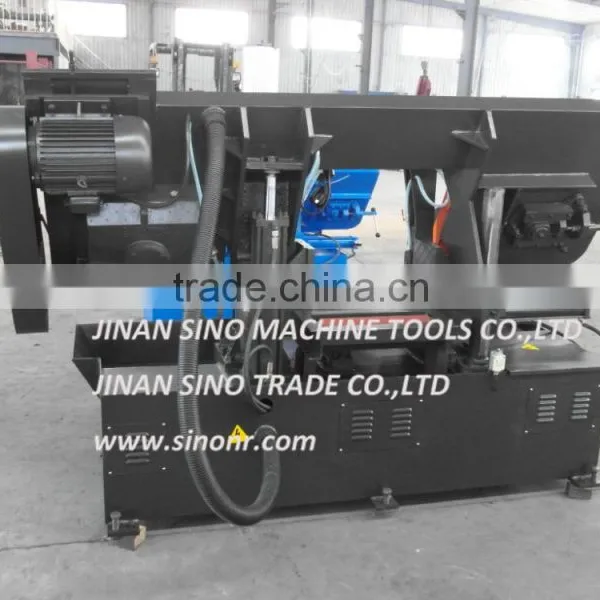

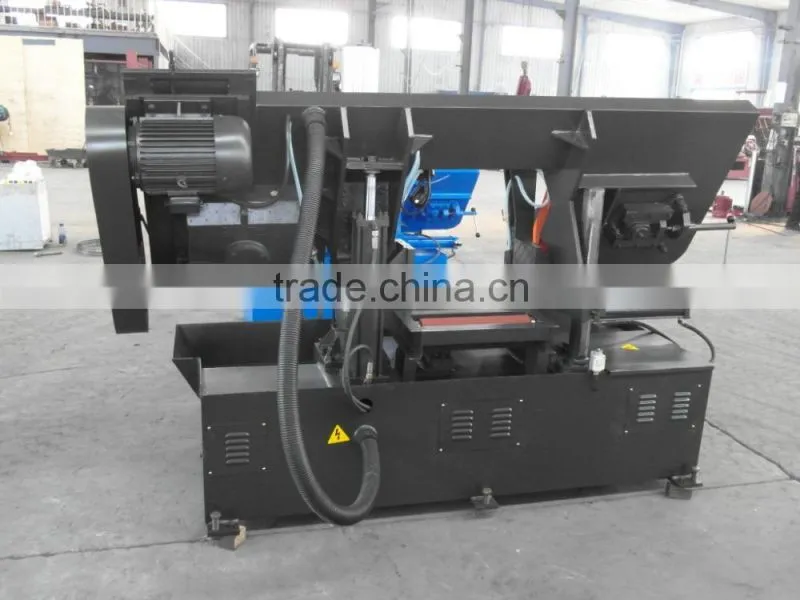

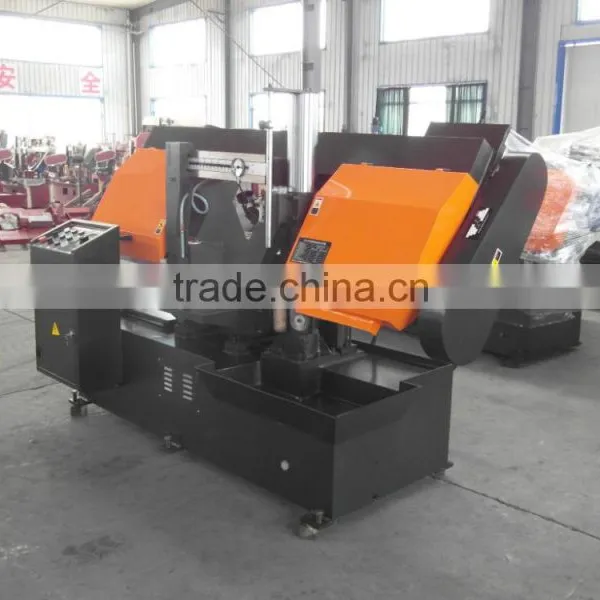

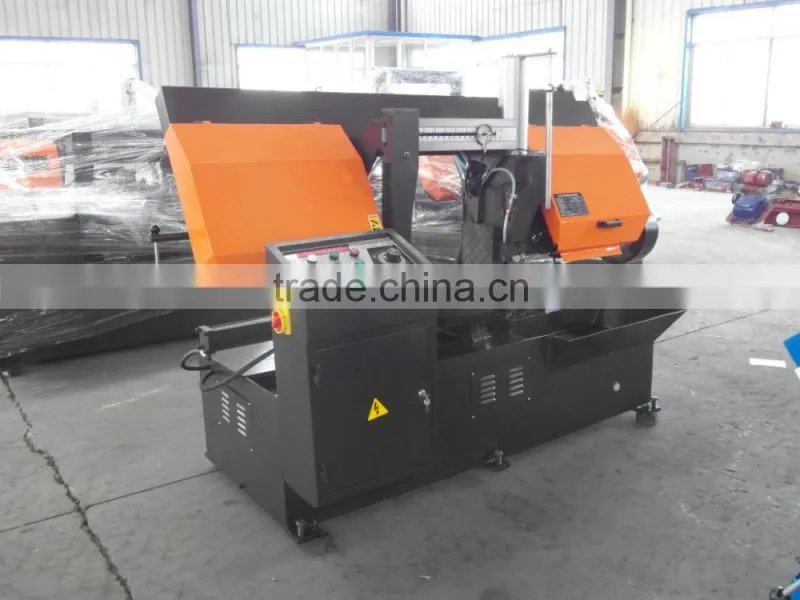

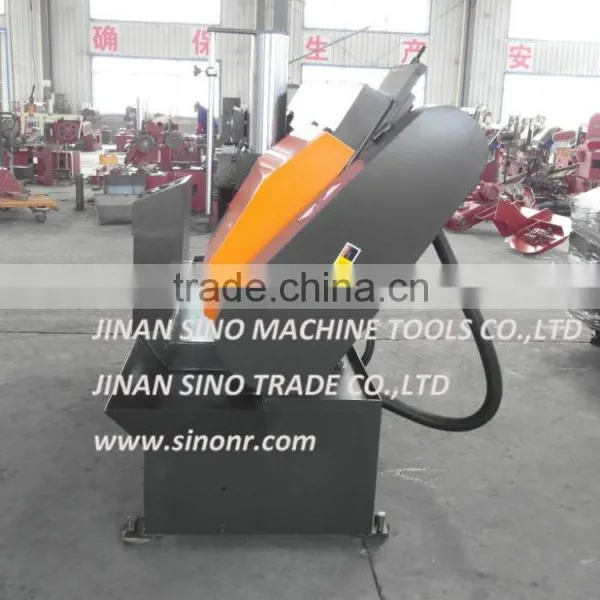

Metal Cutting Double Column Bandsaw Machine With Capacity 400mm GZ4240
Advantages and Features
1.With hydraulic system to control the cutting speed ,variable speed
2.Useful guide system ,to extend the service life of saw blade
3.Double column structure ,steady operations
4.Steady cutting ,high accuracy
5.Hydraulic claming, semi-automatic control,sawing high efficiency
Detailed Specifications
Capacity Round: |
400mm |
Capacity Rectangular: |
450 X 400 mm |
Blade Size (Length/Width/Thickness): |
4570×34×1.1 mm |
Power supply |
380V,50Hz |
Main Motor Rate |
4.0KW |
Oil Pump motor rate |
0.75KW |
Coolant Pump rate |
0.09KW |
Blade speed(m/min): |
40/60/80 |
Maximum Vise Opening: |
420 mm |
Shipping dimensions |
2000X1200X1500MM |
Shipping Gross Weight |
1500KG each set |
Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade . Band saws are a cost effective way to cut different material in many different shapes.

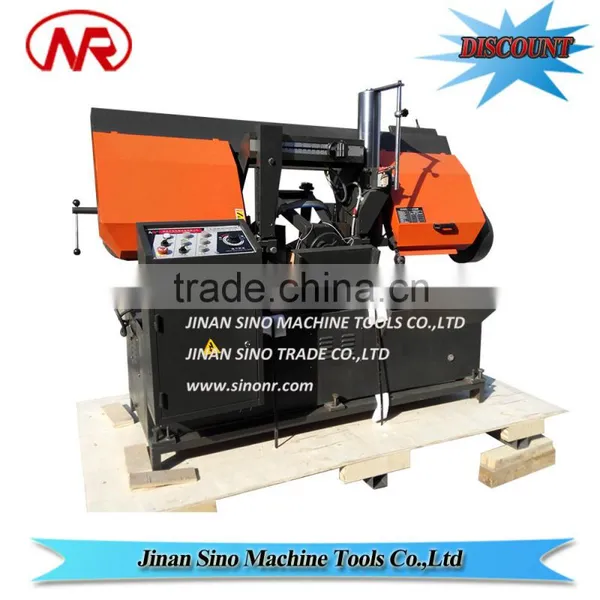

High quality plywood package can give the best protection to bandsaw machine during the long tranpotation.
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
