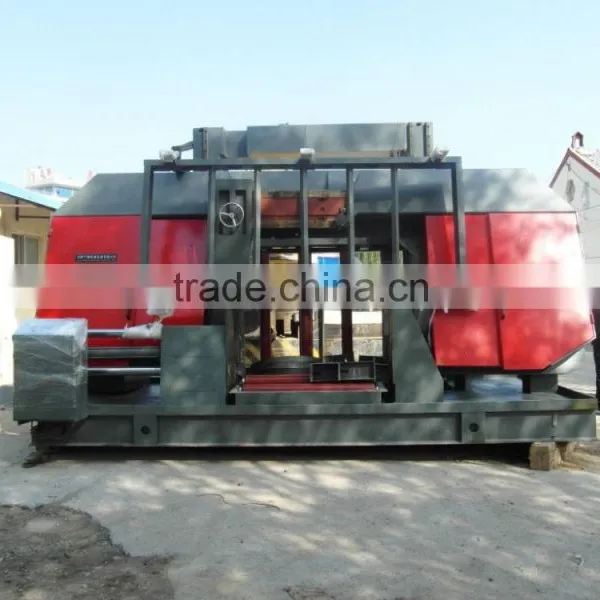

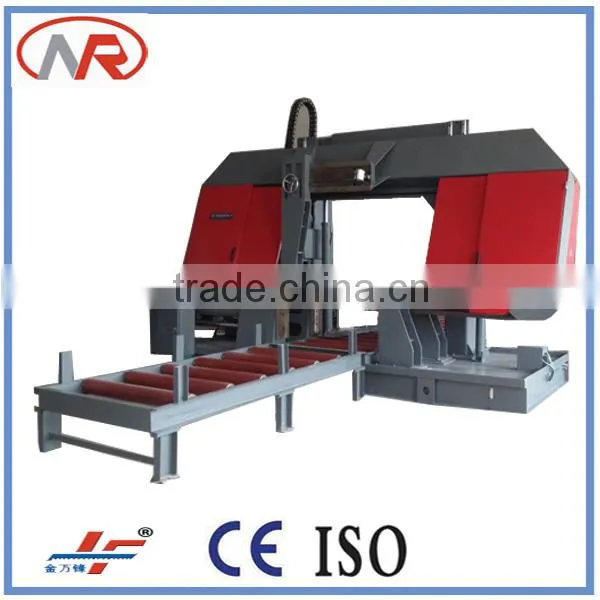

Help CenterGZ42100 Double Column Hydraulic Power Press Band Saw Machine With Cutting Capacity 1000mm
Related Products
-
10" Capacity Horizontal Band Saw Mill GZ4226 With 3HP Electric EngineUS$ 2,200 - 3,000MOQ: 1 Set -
GZ4265/70 Double-column Cover Horizontal Hydraulic Band Saw for Metal CuttingUS$ 11,000 - 13,000MOQ: 1 Set
-
GZ4240 China Hot Sale Double Column Hydraulic Band Saw Machine Iron SawUS$ 3,900 - 4,300MOQ: 1 Set
-
GZ4240 China Hot Sale Double Column Horizontal Hydraulic Band Saw Machine Resaw Band SawsUS$ 3,900 - 4,300MOQ: 1 Set
-
GZ4245 China Double Column Hydraulic Horizontal Band Saw Machine Resaw Band SawsUS$ 5,000 - 5,500MOQ: 1 Set
Advantages and Features:
* 2 Rigid & Chrome column for Stable & accurate cutting
* Quick and Easy Blade Speed Change
* Semi-automatic cut cycle, no miter cutting,straight cutting only.
* Manual material feed
* Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
* Blade linear Speed Controlled by Pulley & V-belt
* Bi-Metal Blade for better cutting,low cost and high efficiecy
* Carbide Guides with Roller Backups
* Hydraulically controlled Vise
* Manually controlled Blade Tension
* Saw up travel can be set to minimize distance between the blade and the top of the material
* Saw down travel can be set to allow notching of blocks
* Manual control on saw blade up, saw blade down, saw blade action
* Built-In Coolant System, Vibration flood coolant system to both saw guides
* Blade Powered, Rotary Cleaning Brush
* Servo Motors
Detailed Specifications:
Capacity Round: |
1000mm |
Capacity Rectangular: |
1000 X 1000 mm |
Blade Size (Length/Width/Thickness): |
10000×67×1.6 mm |
Power supply: |
380V,50Hz |
Main Motor Rate: |
11KW |
Oil Pump motor rate: |
2.2KW |
Coolant Pump rate: |
0.2KW |
Blade speed(m/min): |
15-70,Inverter |
Dimensions: |
4570X2180X3250MM |
Net Weight: |
13 tons |
Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade .
GZ42100 is ideal for cutting sheet metal materials.
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
| Q1: What is your MOQ? |
| A1: Our MOQ is one set. |
| Q2: Can I change the motor voltage and frequency? |
| A2: Yes, voltage and frequency are made as request. |
| Q3: What is your Delivery time? |
| A3: Usually, it's 15 working days after receiving your payment. |
| Q4: Can I use my own logo? |
| A4: Yes, OEM is always be welcome. |
| Q5:What payment method can you accept? |
| A5: T/T, L/C, Escrow |
| Q6: What is your quality guarantee? |
|
A6: Every machine will be strictly inspected and tested before shipping to clients. Besides, we offer 2 years warranty for the band saw machine since the delivery date. |
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
