Easy blade speed change horizontal new product GZ-4230 build a band saw
1.CE approved ISO verified
2.Metal straight cutting
3.Double column for higher stability
4.Semi auto hydraulic control
Product advantage
1. Semi-automatic cut cycle, no miter cutting,straight cutting only
2. Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
3.Low Voltage/Overload Protection
4. Hydraulically controlled Vise
Product detail
Capacity Round |
300mm |
Capacity Rectangular |
300*300 mm |
Blade Size (Length/Width/Thickness) |
3505*27*0.9 mm |
Cutting Length Control |
Controlled by the length guage |
Power Requirement |
380V,50Hz or customized |
Main Motor Rate |
2.2KW |
Hydraulic motor rate |
0.42KW |
Coolant Pump rate |
0.04KW |
Blade speed(m/min) |
40/60/80,Inverter |
Vise action Method |
Clamping vise, hydraulic |
Shipping dimensions |
1700*900*1400MM |
build a band saw packaging |
packing band saw machine 1.Plastic film wraped, 2.Steel/plywood box 3.Suitable for the long distance inland and ocean freight transportation |
Product show

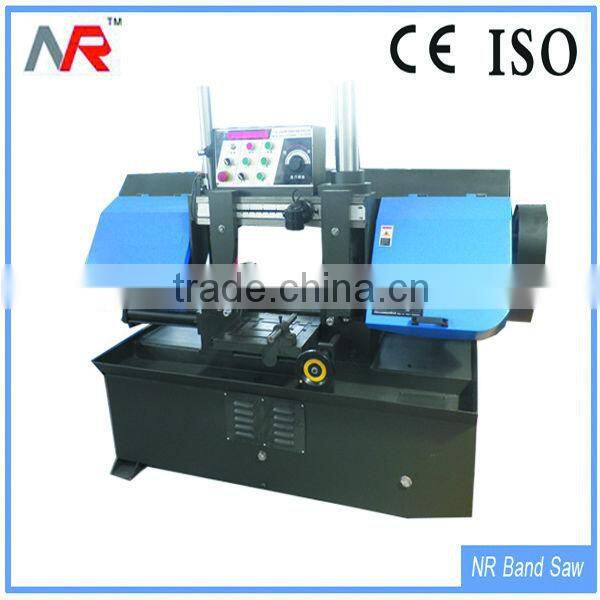

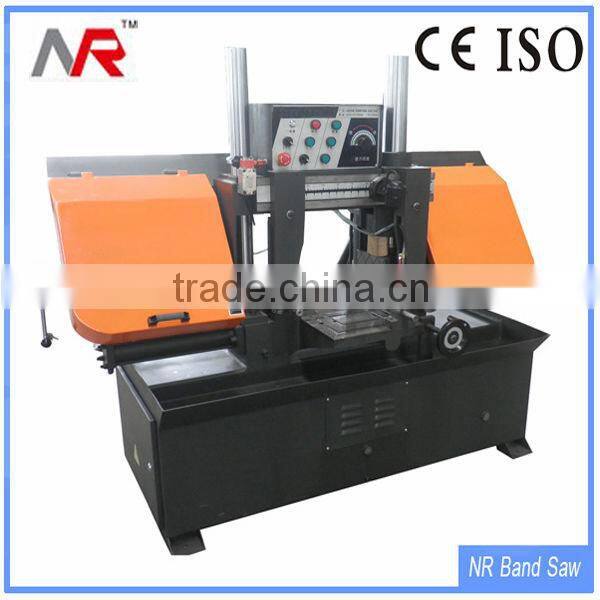

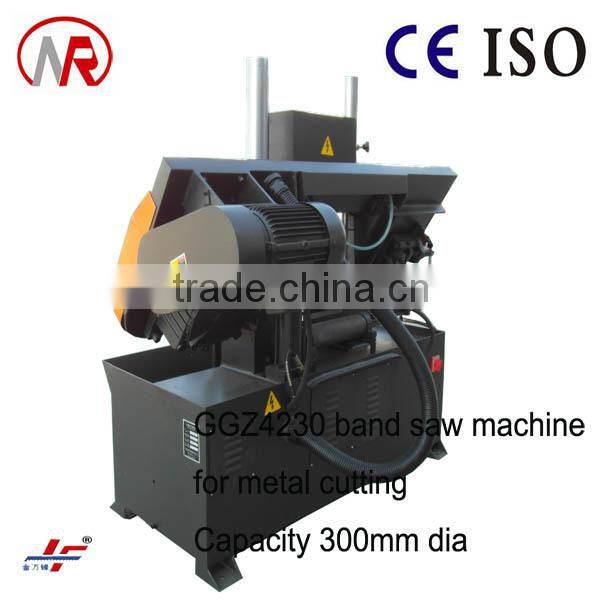

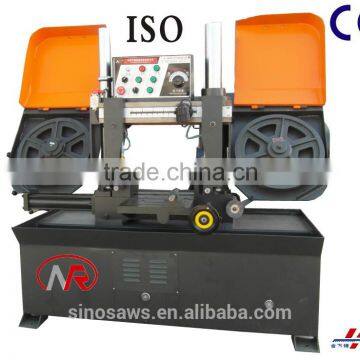

1. Two-column structure,landing and taking off the fuel tank column
Frame type stock table, moving on the rail with the roller wheel.

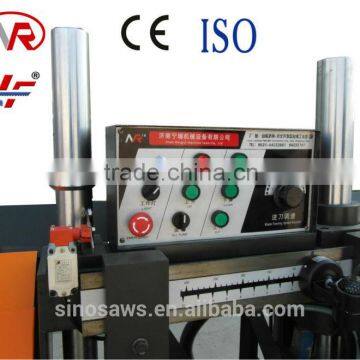

Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
2.Semi-automatic control,hydraulic clamping,convenient oper-ation,sawing high efficiency.Two-coclumn structure,landing and landing and taking off the fuel tank column-oriented.
Hydraulically controlled dual vise clamping system -2 step
Blade cutting speed controlled by speed-adjusting valve on the control pannel.
Safety Guards, Owners Manual
3.Saw a reasonable structure,effectively prolong saw band life
1.What is the Capacity Round ?
-The capacity round is 300mm.
2.What is the blade size (Length/Width/Thickness) ?
-The blade size is 3505*27*0.9 mm
3.What is the working theory?
-The working theory is hydraulic and semi-automatically
Packaging: Steel/plywood box suitable for the long distance inland and ocean freight transportation
Jinan Sino trade co., LTD is a leading company of specializing in manufacturing and exporting band saw. We are able to offer professional band saw to customers. Our team in China sawing industry especially band sawing machine and band saw blade industry has accumulated rich experience and established a set of technical training machine tool manufacturing, application for the integration of production and research.
Our product have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia.
