Specifications
700mm band saw band saw pipe cutter1.pipe staight cutting
2.Cutting capacity 700mm
3.High speed & efficiency

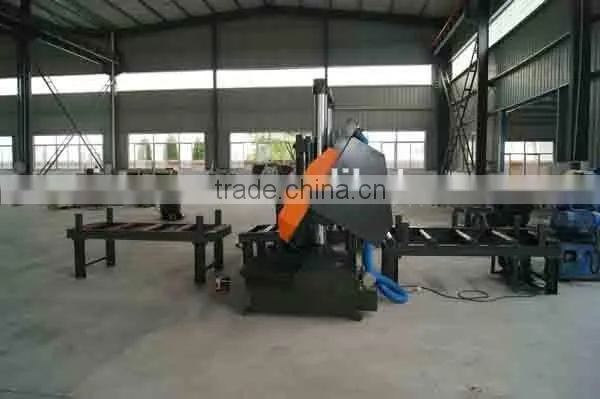

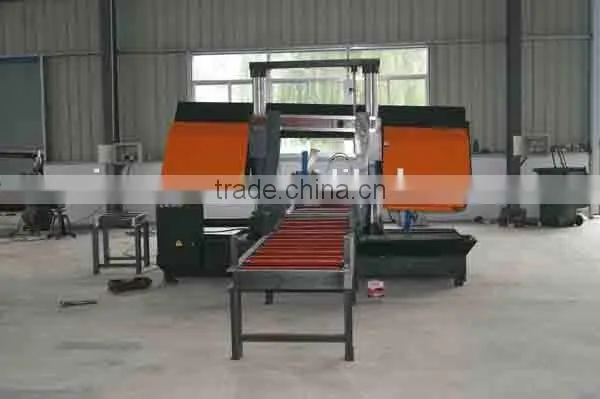

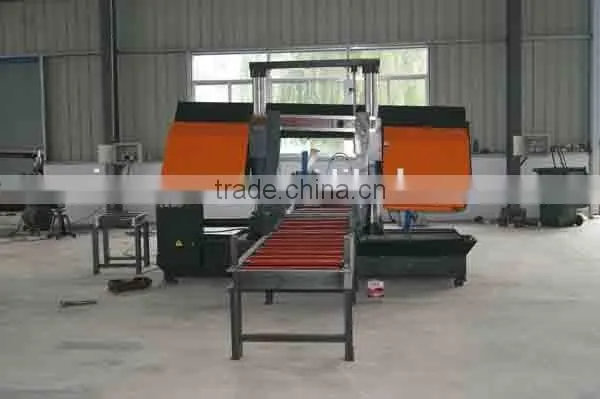

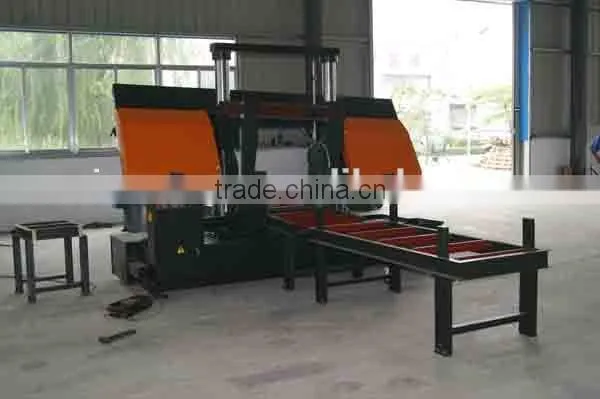

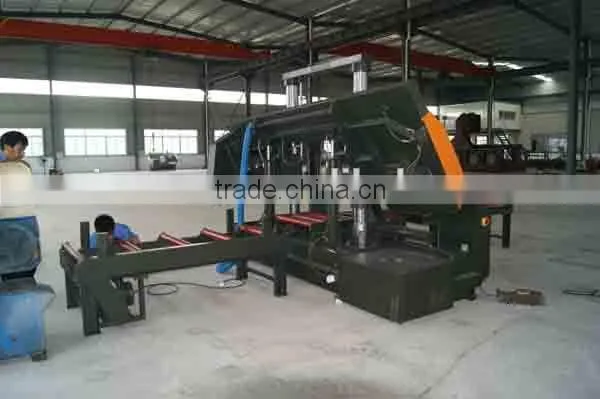

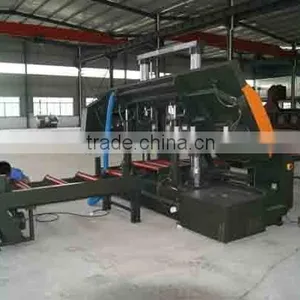

GZ4270 Semi automatic band saw pipe cutter
STANDARD FEATURES:
* Quality made in China
* 2 Rigid & Chrome column for Stable & accurate cutting
* Quick and Easy Blade Speed Change
* Semi-automatic cut cycle, no miter cutting,straight cutting only.
* Manual material feed
* Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
* Blade linear Speed Controlled by Pulley & V-belt
* Bi-Metal Blade for better cutting,low cost and high efficiecy
* Heavy duty cast iron gear box designed for band sawing machines, with precision machined worm, phosphorous bronze worm gear, taper roller bearings and oil bath lubrication
* Carbide Guides with Roller Backups
* Hydraulically controlled Vise
* Manually controlled Blade Tension
* Saw up travel can be set to minimize distance between the blade and the top of the material
* Saw down travel can be set to allow notching of blocks
* Manual control on saw blade up, saw blade down, saw blade action
* Built-In Coolant System, Vibration flood coolant system to both saw guides
* Blade Powered, Rotary Cleaning Brush
* Servo Motors
* Fused Disconnect with Lock Out
* Automatic end of cut shutdown
* Pulley & V-belt Controlled Blade Speed
* Frame type stock table, moving on the rail with the roller wheel.
* Low Voltage/Overload Protection
* Work Lights for nighttime or lightless day.
* Safety Guards, Owners Manual
* Hydraulic oil excluded and gear oil included
* Need special features? We can customize these machines
Capacity Round: |
700mm |
Capacity Rectangular: |
700 X 700 mm |
Blade Size (Length/Width/Thickness) |
7400×54×1.6 mm |
Main Motor Rate: |
7.50KW |
Oil Pump motor rate |
1.50KW |
Coolant Pump rate |
0.12KW |
Blade speed(m/min): |
20/32/54/70 |
Maximum Vise Opening: |
720 mm |
Saw upper frame lifting over material |
Hydraulically and speed adjustable. |
Saw blade feeding speed control |
Frequency controlled |
Material feeding |
Manully pull,or motor-driven roller trolley on request with some extra cost. |
Material Trolley |
Portable material trolley wither roller,it moves along on the rail,easily moved and convenient. |
Cutting Length Control |
Controlled by the length guage |
Working Light |
24V low voltage energy-saving Bulb, safe and longlife. |
Sawing feed control |
Push button to control sawing feed hydraulically |
Blade Cleaning |
Chip brsuh driven by motor |
Vise action Method |
Clamping vise, hydraulic |
Blade Guide: |
Carbide / Roller |
Descent Control: |
Pressure Assist Hydraulic |
Saw head Return: |
Hydraulic |
Blade wheel Driving system: |
Belt,Pulley with gear transmission reducer. |
Drive |
Belt/Pulley |
Shipping dimensions |
3500L*1800W*2100HMM |
Machine’s weight |
3400KG |
Shipping weight |
3700KG |
Packaging |
Steel/plywood box |
Unit Price FOB Qingdao |
US$9500.00 each set |
Shipping Schedule |
10 working days starting from the receipt of the downpyament. |
