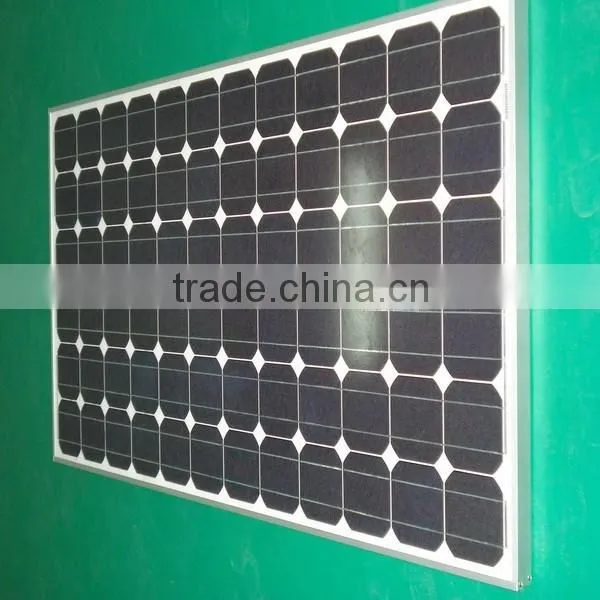

Help CenterHigh Power Customized Good Quality Low 250W Mono Solar Panel Price Quality Choice
Related Products
-
High Efficency Transparent Solar PanelUS$ 75 - 80MOQ: 5 Pieces -
Solar Panel Manufacturers In ChinaUS$ 56.3 - 65MOQ: 5 Pieces
-
Top Quality Panel Solar WholesaleUS$ 60 - 65MOQ: 5 Pieces
-
High Efficency Crystalline Silicon Aluminum Frame Solar PanelUS$ 56.3 - 65MOQ: 5 Pieces
-
Customized High Quality Wholesale Solar Cell Panel With 5 Years WarrantyUS$ 45 - 50MOQ: 5 Pieces
Alibaba China High Efficiency 10W To 300W Solar Panel Cell Price
Technical Specifications---P200W Solar Panel:
Product Name: |
P200Watts Solar Panel |
|
Model Number: |
BR-M200W (6*10=60 Cells) |
|
Standard: |
TUV,IEC61215,CE & EN |
|
Place of Origin: |
China |
|
Solar cell spec: |
156*156 Poly crystalline silicon solar cells |
|
Specifications: |
PV module with 150W maximum power |
|
Max. system voltage: |
1000V DC |
|
Power tolerance: |
0%-3% |
|
Surface max. load capacity: |
70m/S(200KG/sq.m) |
|
Weight: |
20.00KG |
|
Dimensions: |
1640mm*992mm*40mm |
|
Electrical characteristics: |
Photo |
|
Open circuit voltage(V): |
36V |
|
Short circuit current(A): |
7.7A |
|
Max. power voltage(V): |
28.81V |
|
Max. power current(A): |
6.94A |
|
Cell efficiency(%): |
≥17% |
|
Module efficiency(%): |
≥15.3% |
|
FF(%): |
70-72% |
|
Conditions (STD): | ||
Irradiance: |
1000W/M2 |
|
Temperature: |
25°C |
|
Absolute maximum rating: | ||
Operating temperature: |
-40°C to +85°C |
|
Storage temperature: |
-40°C to +85°C |
|
Packing: |
2PCS/CTN |
|
Junction box |
TUV Certified, MC4 Connector, Water-proof. |
|
Glass |
High-Transmission, Low iron tempered glass. |
|
Limited Warranty |
Workmanship for 10 years, 90% of minimum power output over 10 years,80% over 25 years. High reliability with guaranteed +3% power output tolerance, (Lifespan:20-25 Years) |
|
We are Yangzhou Bright Solar Solutions Co .,Ltd, whose registered address at No.51 Siwangting Road ,Yangzhou City ,Jiangsu Province, China .established in 1997,an ISO 9001:2000,CE&EN, RoHS, Soncap, IEC,TUV,CCPIT,CCC approved Manufacturer and Exporter. We have been successfully selling our solar street lights, LED street lights; solar panels, solar battery, home solar lighting system, solar Courtyard light etc, to overseas markets over 50 countries particularly in Asia, North S/America, W/Africa, etc.
About our certification:

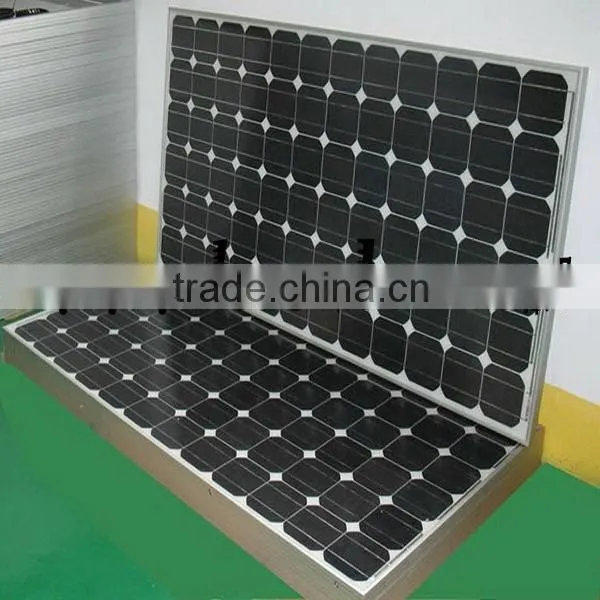

Solar Panel Producing Pictures:
1.We just provide good quality products
2We sure to give you the most favorable prices
3.We have professional engineers to design and develop
4.new led lights according to your requirements
Your inquiry will be replied in 12 hours
Thanks for reading.If you want to know more detail information or better quatation,please feel free to contract us!
