Solar Panel Manufacturers In China
Product Name: |

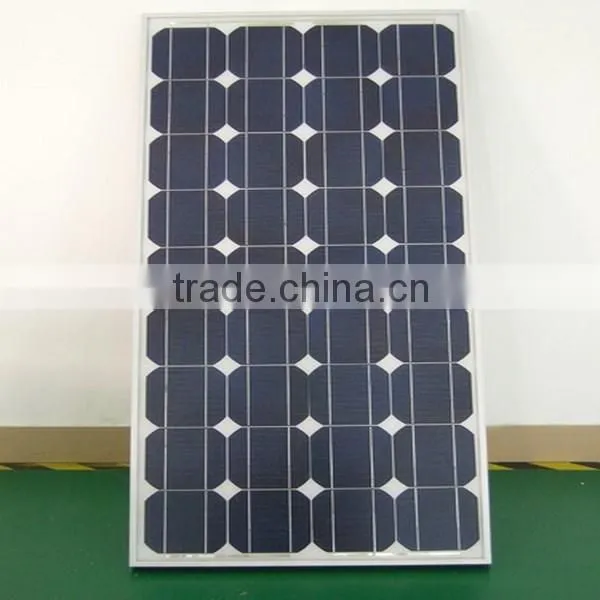

75Watts Mono Solar Panel |
||
Model Number: |
BR-M75W 1200*500*35mm |
||
Standard: |
TUV,IEC61215,CE & EN |
||
Place of Origin: |
China |
||
Solar cell spec: |
125*125 Monocrystalline silicon solar cells |
||
Specifications: |
PV module with 75W maximum power |
||
Max. system voltage: |
1000V DC |
||
Power tolerance: |
0%-3% |
||
Surface max. Load capacity: |
70m/S(200KG/sq.m) |
||
Weight: |
9KG |
||
Dimensions: |
1200*500*35mm |
||
Electrical characteristics: |
Photo |
||
Open circuit voltage(V): |
19.9V |
|
|
Short circuit current(A): |
4.79A |
||
Max. power voltage(V): |
16.5V |
||
Max. power current(A): |
4.37A |
||
Cell efficiency(%): |
≥17.0% |
||
Module efficiency(%): |
≥12.9% |
||
FF(%): |
70-72% |
||
Conditions (STD): | |||
Irradiance: |
1000W/M2 |
||
Temperature: |
44°C |
||
Absolute maximum rating: | |||
Operating temperature: |
-40°C to +80°C |
||
Storage temperature: |
-40°C to +80°C |
||
Packing: |
2 PCS/CTN |
||
Junction box |
TUV Certified,MC4 Connector,Water-proof. |
||
Glass |
High-Transmission,Low iron tempered glass. |
||
Limited Warranty |
Workmanship for 5 years,90% of minimum power output over 12 years,80% over 20 years. High reliability with guaranteed +3% power output tolerance, (Lifespan:20-25 Years) |
||
Price validity |
30days after quoting |
||
Working flow
1.Q:How many Model Number about your Solar Panels?
A: BR-M80W (6*12=72Cells)
2.Q:How Many Years Of your Warranty and the life Span and Efficiency ?
A: We can Provide more than 5 years warranty and the Life span 20-25years.90% minimum power output over ten years,80% over 25 years
3.Q:What’s the main difference between mono and polycrystalline solar panel?
A: production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.
4.Q:How Many certificates you get for Solar Panels and which area can be used?
A: We are a CE,IEC,TUV,RoHS,ISO SONCAP,SASO etc certificated supplier and the panel can be used in solar street lightinging or solar system etc.
Our Competitive Produvts:
1 Solar Street Lights & LED Street Lighting 15W—120W;
2. Solar Garden Lights & Solar Landscape Lights 5W—30W;
3. Solar Battery: 4.5Ah—250Ah/12V, 200Ah—3000Ah/2V;
4. Solar Panels & Solar Modules 5W—300W Poly & Mono ;
5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating;
6. Solar Home Lighting System/Kits : 5W—5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power;
Satisfy our experienced service, price quality, from your inquiry today!
