Help CenterP10 Outdoor Full Color Stadium Electronic Led Dipslay
Related Products
number |
Item name |
Parameter and index |
unit module | ||
1 |
LED encapsulation mode |
φ4oval DIP |
2 |
Horizontal axis |
120° |
3 |
Vertical axis |
60° |
4 |
Pixel composition |
2R1G1B |
5 |
Pixel pitch |
10mm |
6 |
Virtual pixel pitch |
8mm |
7 |
Scan method |
1/2 |
8 |
Drive method |
Constant current |
9 |
Module resolution |
16×16pixels |
10 |
Module dimensions |
256mm×128mm |
11 |
Module type |
incorporated lamp and drive |
12 |
Module working voltage |
+5V |
13 |
Module average power |
5W |
14 |
Module maximum power |
20W |
15 |
Module mask material |
PC |
16 |
Module shell material |
PC |
|
|
|
unit cabinet | ||
1 |
Module layout |
6×6 pieces |
2 |
Cabinet resolution |
96×96 pixels |
3 |
Cabinet virtual resolution |
No |
4 |
Cabinet maximum power |
720W |
5 |
Cabinet average power |
180W |
6 |
Cabinet dimension |
960mm×960mm |
7 |
Cabinet material |
steel/aluminum alloy |
8 |
Cabinet color |
black/gray |
9 |
Protection grade |
IP65/IP54 (front/back) |
Entire screen | ||
1 |
Application environment |
outdoor |
2 |
Brightness |
>8000 cd/m2 |
3 |
White balance coordinates |
X=0.29,Y=0.31 |
4 |
contrast |
64000:1 |
5 |
Color temperature |
8000K |
6 |
Pixel density |
10000 (pixels/ m2) |
7 |
Average consumption |
244 (W/m2) |
8 |
Maximum consumption |
977(W/m2) |
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
10 |
Operating temperature |
-20°C~ +50°C |
11 |
Operating humidity |
10%~90% |
12 |
Storage humidity |
-30°C ~ +50°C |
13 |
Refresh frame rate |
60Hz |
14 |
Refresh rate |
480Hz |
15 |
Viewing distance |
10-300m |
16 |
grayscale/color |
16.7M |
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
18 |
Control method |
synchronous with the computer display |
19 |
Data transfer range |
Network cable:100m |
20 |
Computer operating system |
WINDOWS(98,2000,XP,Vista,7) |
21 |
Video signal |
VGA, DVI,RF S-Video, RGB, RGBHV, YUV, YC,COMPOSITION and so on. |
|
||
23 |
Longevity |
≥100000 hours |
24 |
Certification |
UL/CE/CCC/ROHS/FCC/ ISO9001:2008 |

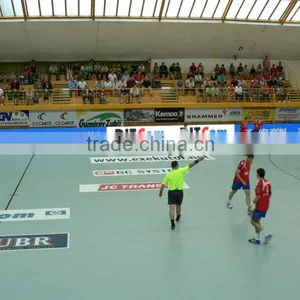

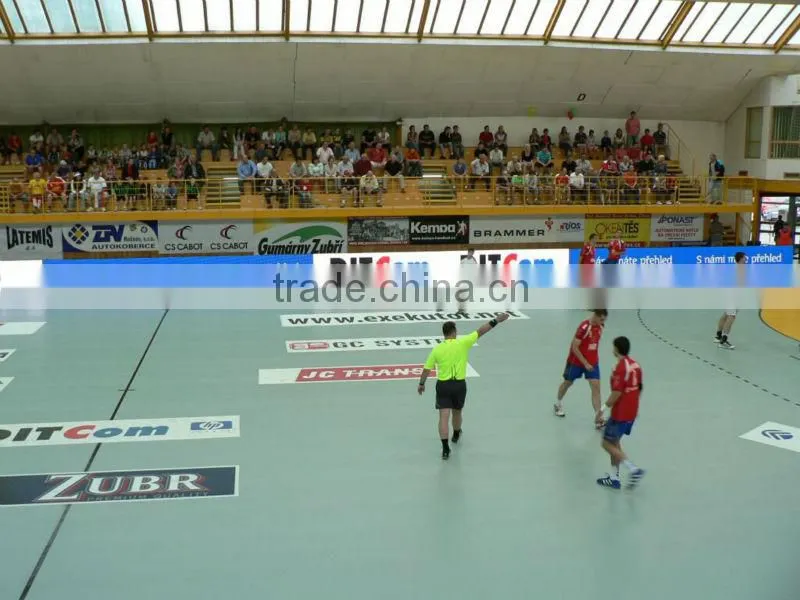

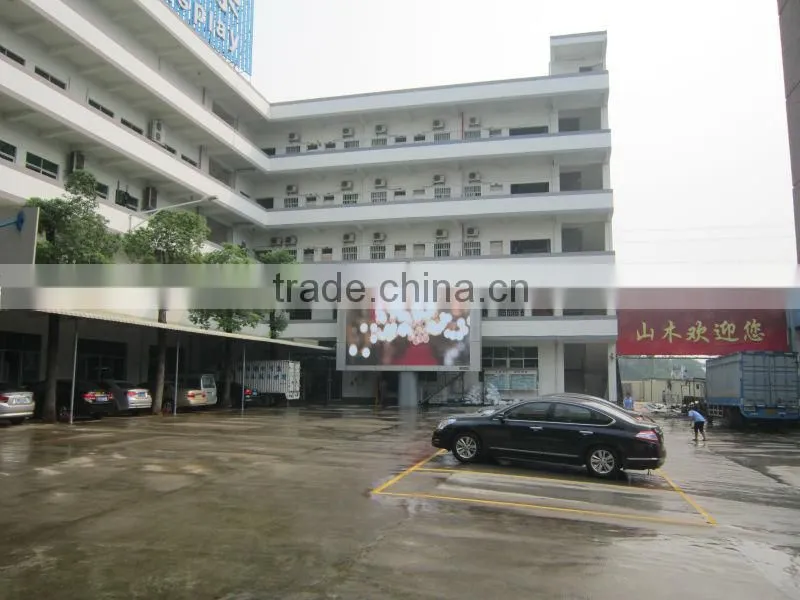

The project show:

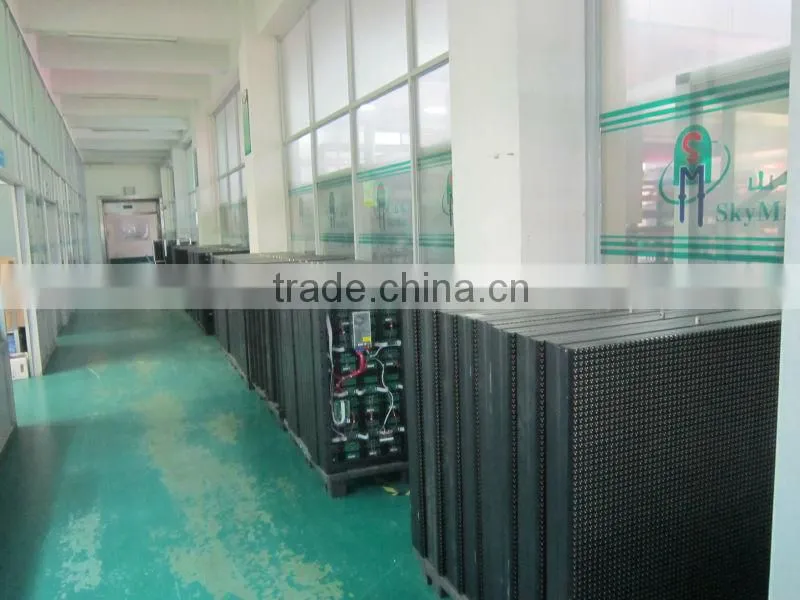

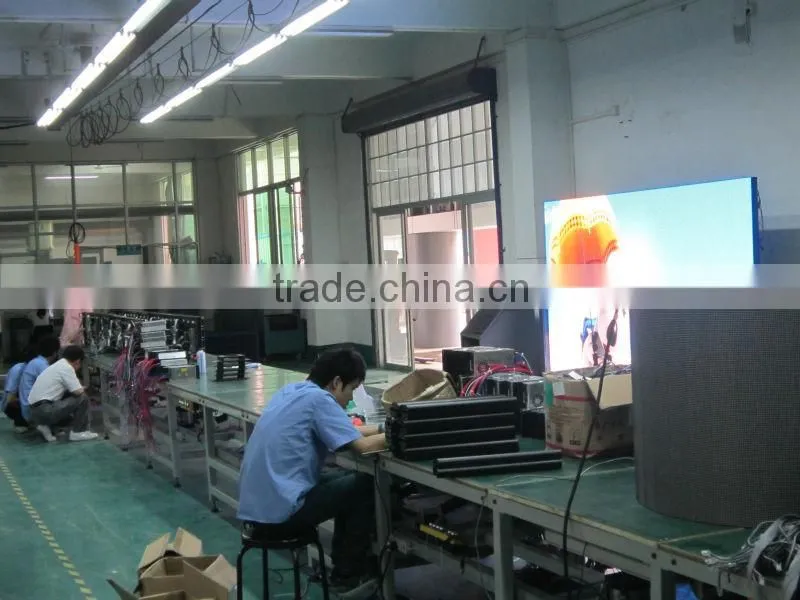

Imported USA LED Machine& Germany material
