Specifications
P4 full color Indoor LED display adopts Fully automated production, realizable quality .Color saturation, high brightness

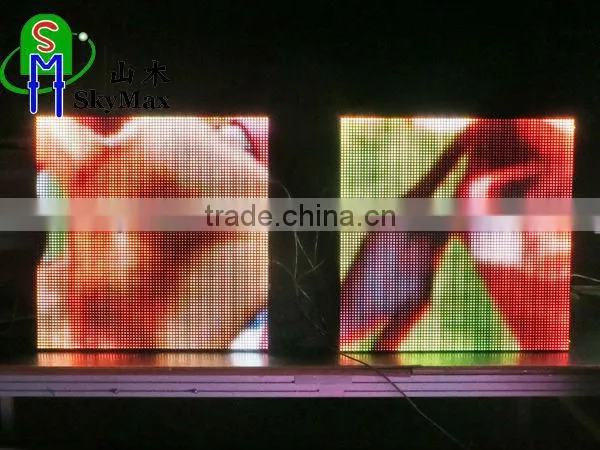

P6 high definition Indoor full color die cast cabinet small LED Display
Technical parameter:
number |
Item name |
Parameter and index |
unit module | ||
1 |
LED encapsulation mode |
SMD 3528 Surface mounted |
2 |
Horizontal axis |
160° |
3 |
Vertical axis |
160° |
4 |
Pixel composition |
1R1G1B |
5 |
Pixel pitch |
6mm |
6 |
Scan method |
1/8 Scan |
7 |
Drive method |
Constant current |
8 |
Module resolution |
32dots× 32dots |
9 |
Module dimensions |
192x192mm |
10 |
Module type |
Synergetic lamp and drive |
11 |
Module working voltage |
+5V |
12 |
Average Power Consumption |
6.25W |
13 |
Cabinet Maximum Power Consumption |
25W |
14 |
Module shell material |
PC |
15 |
Module mask material |
PC |
unit cabinet | ||
1 |
Module layout |
4×4 pieces |
2 |
Cabinet resolution |
128dots× 128dots |
3 |
Cabinet maximum power |
500W |
4 |
Cabinet average power |
125W |
5 |
Cabinet dimension |
768mm×768mm |
6 |
Cabinet material |
steel/aluminum alloy |
7 |
Cabinet color |
black/gray |
Entire screen | ||
1 |
Application environment |
indoor |
2 |
White balance brightness |
>1800cd/sqm |
3 |
White balance coordinates |
X=0.29,Y=0.31 |
4 |
contrast |
64000:1 |
5 |
Color temperature |
8000K |
6 |
Pixel density(pixels/sqm) |
27777 |
7 |
Average consumption(W/sqm) |
212Hz |
8 |
Maximum consumption(W/sqm) |
848Hz |
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
10 |
Operating temperature |
-10°C~ +45°C |
11 |
Operating humidity |
10%~90% |
12 |
Storage humidity |
-30°C ~ +50°C |
13 |
Refresh frame rate |
60Hz |
14 |
Refresh rate |
480Hz |
15 |
Viewing distance |
6-100m |
16 |
grayscale/color |
16.7M |
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
18 |
Control method |
synchronous with the computer display |
19 |
signal transfer distance |
Network cable:100m |
20 |
Computer operating system |
WINDOWS(98,2000,XP,Vista,7) |
21 |
Video signal |
VGA,DVI,RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION and so on. |
22 |
MTBF |
≥10000 hours |
23 |
Longevity |
≥100000 hours |
24 |
Certification |
UL/CE/CCC |
OUR FACTORY SHOW:
