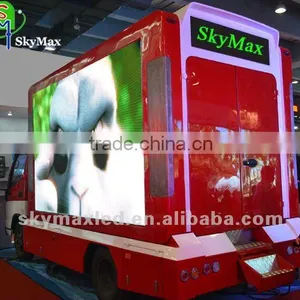

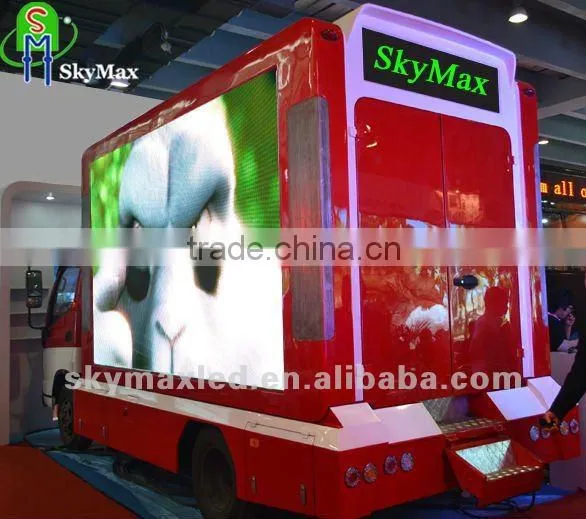

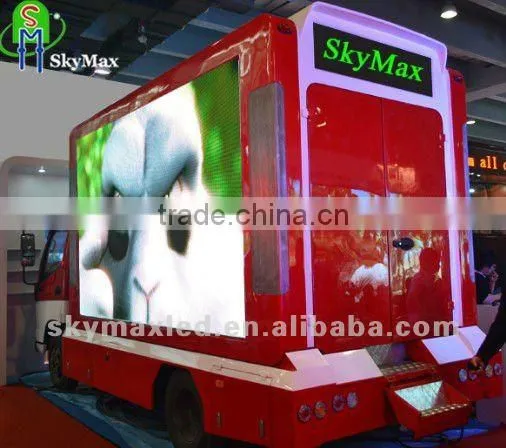

Help CenterProfessional Factory Vehicle Mounted Outdoor Mobile Led Screen
Related Products
-
P12mm Outdoor Monitor Advertising Vehicle Mounted Truck Mobile LED Display CarNegotiableMOQ: 1 Piece -
P10 Outdoor Video Advertising Mobile Led Display TrailerNegotiableMOQ: 1 Piece
-
P10 Outdoor Video Mobile Advertising Screen TrailerNegotiableMOQ: 1 Piece
-
P10 Outdoor Mobile LED Advertising TrailerNegotiableMOQ: 1 Piece
-
P10 Outdoor Mobile Car Advertising TrailerNegotiableMOQ: 1 Piece
Specifications
Mobile led screen:Fast set-up,easy moving
Adopted for the picture adjustment
Can be maintained by single pixel
Good price
We offer an unrivalled choice of LED screen hire options, ensuring you have the perfect big screen to suit your event.
|
|
Product description:
1). P16mm led advertising screen has high level waterproof and anti-dust function of Ip65. 2). The structure is simple, standard cabinet. Big module design, and professional corner design to ensure the screen can be installed without any gap and ad a mirror. 3). International aluminum material or the thin roll steel plate of 1.2mm adopted in cabinet material. Which is durable and never has a transformation. 4). True quality, stable performance and easy operation model. 5). This product has high ,middle, low grade three price levels for choosing. 6). Supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs,VCD or DVD,live programs, and so on. |
Technical parameter:
number |
Item name |
Parameter and index |
unit module | ||
1 |
LED encapsulation mode |
φ4oval DIP |
2 |
Horizontal axis |
120° |
3 |
Vertical axis |
60° |
4 |
Pixel composition |
1R1G1B |
5 |
Pixel pitch |
16mm |
6 |
|
|
7 |
Scan method |
1/2 |
8 |
Drive method |
Constant current |
9 |
Module resolution |
16×8 pixels |
10 |
|
|
11 |
Module dimensions |
256mm×128mm |
12 |
Module type |
incorporated lamp and drive |
13 |
Module working voltage |
+5V |
14 |
Module average power |
9W |
15 |
Module maximum power |
36W |
16 |
Module shell material |
PC |
17 |
Module mask material |
PC |
unit cabinet | ||
1 |
Module layout |
4×6 pieces |
2 |
Cabinet resolution |
64×48 pixels |
3 |
|
|
4 |
Cabinet maximum power |
1080W |
5 |
Cabinet average power |
270W |
7 |
Cabinet material |
steel/aluminum alloy |
8 |
Cabinet color |
black/gray |
9 |
Protection grade (front/back) |
IP65/IP54 |
Entire screen | ||
2 |
Brightness |
>8000 cd/m2 |
4 |
contrast |
64000:1 |
5 |
Color temperature |
8000K |
6 |
Pixel density(pixels/ m2) |
3960 |
7 |
Average consumption |
343 (W/m2) |
8 |
Maximum consumption |
1373 (W/m2) |
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
12 |
Storage humidity |
-30°C ~ +50°C |
14 |
Refresh rate |
480Hz |
15 |
Viewing distance |
15-300m |
16 |
grayscale/color |
16.7M |
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
18 |
Control method |
synchronous with the computer display |
19 |
Data transfer range |
Network cable:100m |
21 |
Video signal |
VGA, DVI,RF S-Video, RGB, RGBHV, YUV, YC,COMPOSITION and so on. |
22 |
|
|
23 |
Longevity |
≥100000 hours |
24 |
Certification |
UL/CE/CCC/ROHS/ISO9001:2008 |
SkyMax's cases show: (more about mobil car screen cases: )
