SK-291 double-skin thermal battery enclosure/customized outdoor battery cabinet with heat exchanger
- 5000 Piece / Pieces per Month
- Xingang Tianjin
- T/T Credit Card
- Outdoor battery enclosure steel SK-345/battery cabinet ip65 with air conditioner and 2 doors
- SKW-003 battery enclosure outdoor/battery rack for inverter battery with customized size/weatherproof ip55/cooling system option
- SK-216 Battery rack for inverter battery/customized outdoor battery cabinet with cooling system
- waterproof battery cabinet 1200*1190*1800mm
- IP55 Outdoor/SK-35B telecom battery cabinet with heat exchanger
- 19u rack cabinet with air conditioner
Product Details
Place of Origin: | Tianjin, China | Brand Name: | SHIYU | Model Number: | SK-291, SK-291 |
Protection Level: | Other, IP54/IP55/IP65/IP66 | Type: | Control Box | External Size: | W650*D730*H1700mm |
Packaging Details
Wooden case/Carton case with pallets
Product Description

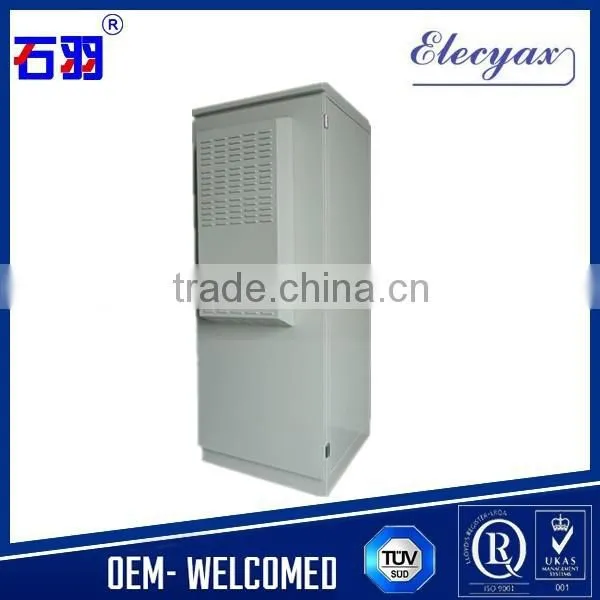

SK-291 double-skin thermal battery enclosure/customized outdoor battery cabinet with heat exchanger
SK291 Outdoor communication cabinet is an communication base station integrated cabinet which combined the cabinet, telecommunication electric source, backup battery and thermal management system together.
The metal plate structure is double layers heat insulation structure, the thermal insulation material is filled in the middle of the 2 layers metal plate.
The heat insulation material use the not burning phenolic foam insulation board with good insulation performance. In order to reduce the energy consumption of the air conditioner.
In the harsh environment, the double layers heat insulation structure could provide the good working environment for the inner cabinet equipment.
Technical Parameters
External Dimension: W650*D730*H1700mm
Equipment Compartment Space: 23U, 19” rack equipment rack (Telecom electric source occupy 1U, Customer use 22U)
Battery Compartment Space: H380mm,
Cabinet Base Height: 100mm
The anchor bolt holes: spacing distance is W600*D500mm, diameter of holes is 20mm.
Door mounted air-conditioner: 30A 48VDC Output, 90-280VAC Input (wide voltage range), 50/60Hz, 2 Pieces of 15A module (redundant configuration)
Batteries Sitting: 4 Pieces of 12V 100Ah, 6FTJ-100B front terminal VRLA gel batteries.
Cabinet Material: Main body structure is 1.5mm thickness galvanized iron.
Protection grade: IP55

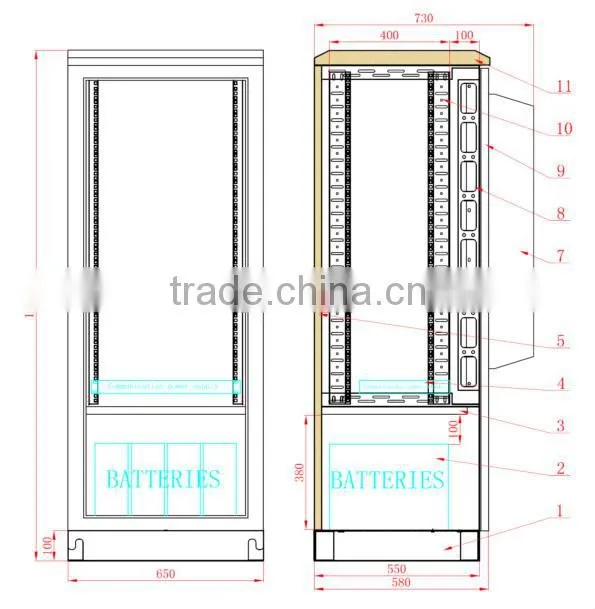

Internal Structure Parameters
1, Cabinet base
2, Cabinet lower part arranged 4 pieces of 12V 100Ah batteries.
3, The division plate between the Battery compartment and equipment compartment
4, Telecommunication electric source
5, Cabinet side panels are heat insulation structure, insulation board thickness is 20mm.
6, Equipment bracket 1 pair.
7, Door mounted air-conditioner
8, The vertical cables management device (Cable management slot) 2 Pieces.
9, Cabinet door (with lock)
10, 23U 19” equipment rack.
Equipment rack depth is 400mm.
The space from equipment rack to inner cabinet door is 100mm.
11, Cabinet top is heat insulation structure, insulation board thickness is 40mm.

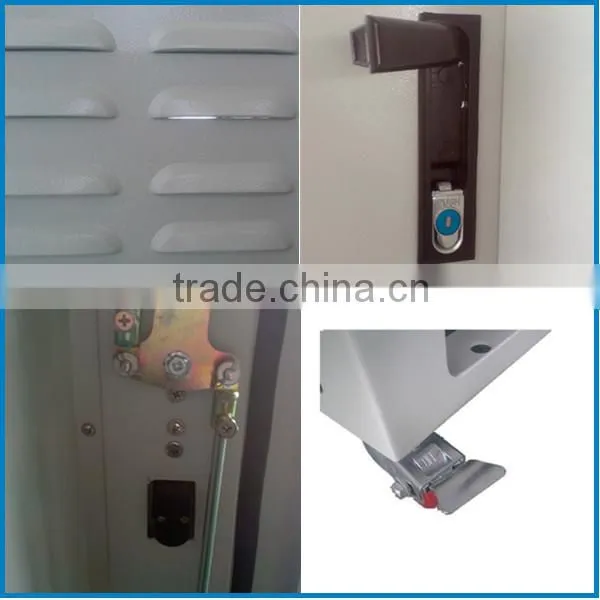

SK-291 Cabinet detail look
Certificates and Patent
Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.

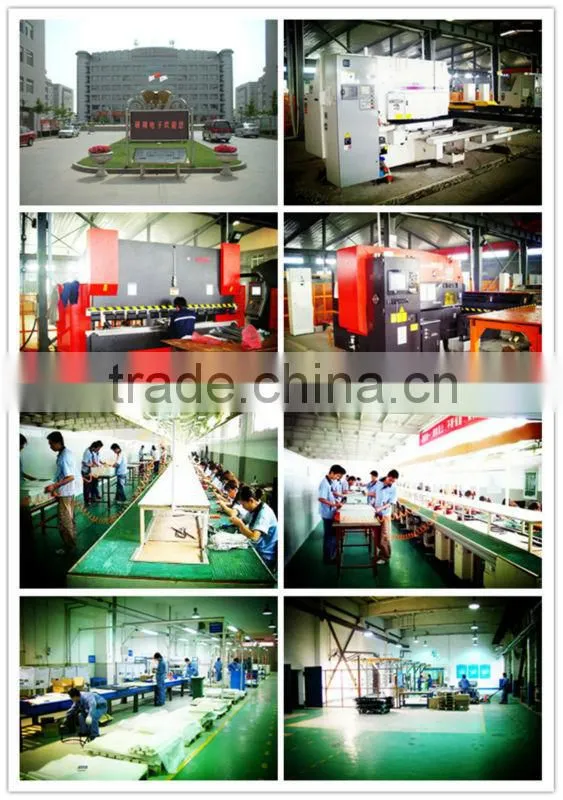

Company Profile
Tianjin Yanxiang Electronic Science and Technology Co., Ltd, founded in 2001, is a high-tech company which combined R&D, produce and sale together. The main business scope include heat exchanger, heat exchanger communication cabinet, air conditioner battery cabinet, small outdoor integrated communication base station, network communication cabinet, controller, transducer and other related products. We also offer High and new technology consulting and transfer services. Our products have been sold to Europe, America, Southeast Asia and all over the world. It is also a qualified supplier for well-known domestic enterprises, such as Huawei Technology Company, Tianjin Broadcasting Network System, TT&C Network of China, some Communication Department of Liberation Party, and China Communications. We treat technology innovation as the guidance, do our best to satisfy customers design demand, and win the trust of customers by our high quality products and good after-sales service.
Our company passed ISO9001 Quality System Certification in 2004, and acquired many high-tech achievements and patented technologies. Many of its projects are listed as national and Tianjins key science and technology projects. Besides, It achieved China science and technology private enterprise innovation award, won the Tianjin outstanding enterprise title. Being in the technology industry leading position, we are honored as high-tech private enterprise with vitality and credible by foreign and domestic media.
Our Enterprise tenet is, it is not only to provide products, but also to provide personalized product design and technology project solution for customers. Welcome to contact us for more information.
