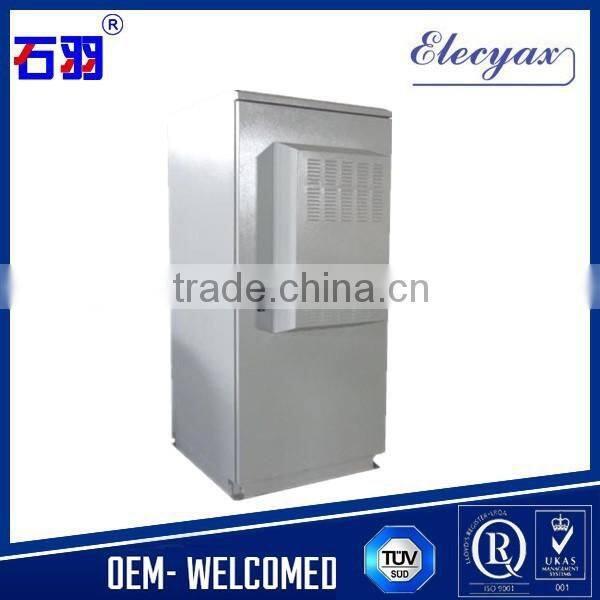

Outdoor battery enclosure steel SK-345/battery cabinet ip65 with air conditioner and 2 doors
SK-345 Outdoor Cabinet Technical Parameters
| External dimension: | W700*D700*H2200mm, Cabinet depth is 870mm as calculated the installed air conditioner. (Based on customer requirements) |
Internal capacity: |
42U,19 inch rack (Optional: could customized as battery rack) |
Cooling capacity: |
Compressor type air-conditioner (600W refrigerating capacity, use 220VAC power supply) (Optional: heat exchanger/filter type fan/ventilation window) |
Material: |
5250 aluminum plate (Optional: galvanized iron, Spcc cold-rolled steel, Stainless steel and etc.) |
Protection grade: |
IP54/IP55/IP65/IP66 |
Structure: |
Single sheet metal/ or Double layer heat insulation structure |
Alarm and monitor: |
(Based on customer requirements: temperature alarm. water sensor. door alarm. smoke alarm and etc. ) |
Color: |
RAL7035 (Optional: other color) |
Net weight: |
120KG |
Package: |
Wooden case with pallets |

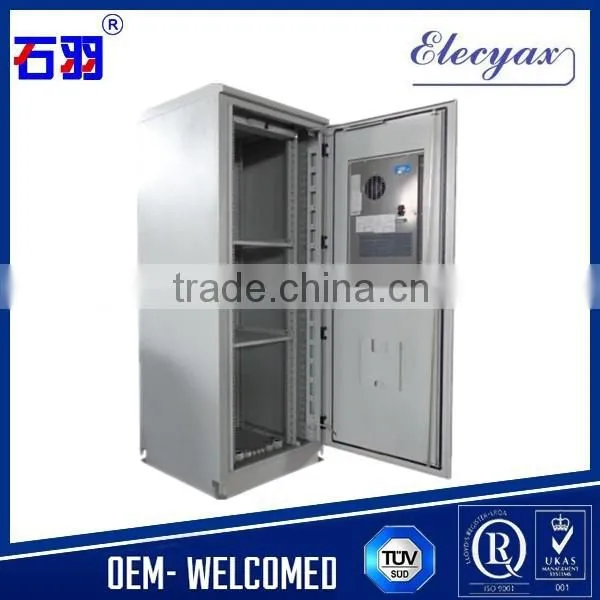

SK-345 Air-conditioner type outdoor cabinet
(could also customized design as battery cabinet and installed other cooling)
Factory general look:
Certificates and Patents
Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
