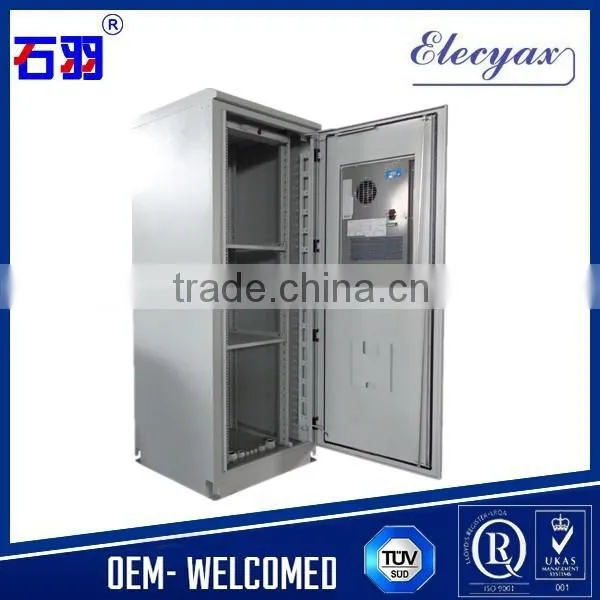

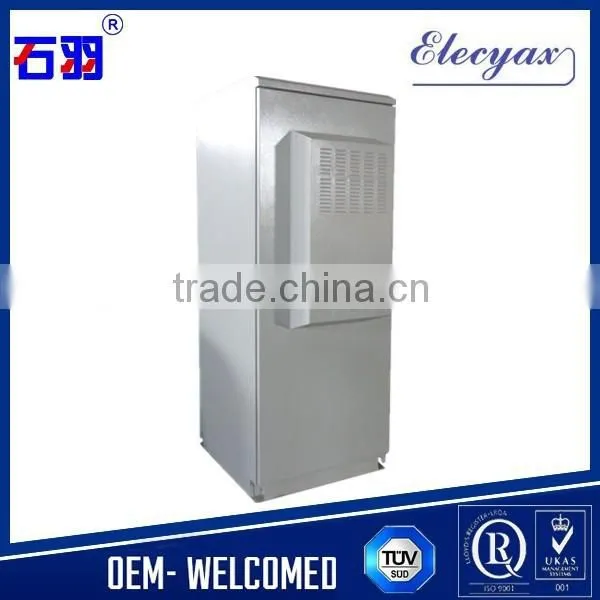

Free standing "800*800mm" battery enclosure/SK-366/waterproof battery cabinet outdoor
SK-366 Outdoor communication cabinet is air conditioning style cooling outdoor cabinet.
Cabinet metal plate structure is double layers heat insulation structure, the thermal insulation material is filled in the middle of 2 layers metal plates. The heat insulation material is use the not burning phenolic foam insulation board with good insulation performance. Hence, the cabinet protection grade could achieve IP66.
So the cabinet could burden influence by freezing winter, hot summer, rain, snow, sand wind. Inthe harsh environment, the double layers heat insulation structure could provide the good working environment for the inner cabinet equipment.
Specification of the SK-366 Outdoor cabinet
External dimension: |
W800*D800*H2065mm (if installed the air conditioner, the cabinet depth is 978mm) |
Internal capacity: |
42U, 19/21 inch adjustable rack |
Material: |
Galvanized iron (Optional: Aluminum, stainless steel, SPCC cold-rolled steel) |
Structure: |
Double layer heat insulation structure |
Cooling system: |
1000W refrigerating capacity compressor type air conditioner, use 220VAC power supply (Optional: fan cooling, heat exchanger,ventilation window or no cooling) |
Accessory: |
2 pcs of rack brackets, 1 pcs of 220V AC Led light |
Protection grade: |
IP54/IP55/IP65/IP66 |
Color: |
RAL7035 (other color pls ask our salespersonnel) |
Monitoring system: |
No monitoring. (Optional: the anti-theft door alarm, temperature alarm, smoke alarm, humidity sensor, water sensor and etc. ) |
Net weight: |
123KG |
Mount method: |
Floor standing |
Package: |
Wooden case with pallets/Or Carton case with pallets |
SK-366 1000W refrigerating capacity air conditioner type outdoor cabinet
SK-366 1200W refrigerating capacity air conditioner type outdoor cabinet
Factory general look:
Certificates and Patents
Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
