IP55 rack manufacturer/SK-185 weatherproof battery enclosure wall mount/customized all size with air conditioner cooler
- 5000 Piece / Pieces per Month
- Xingang Tianjin
- T/T Credit Card
- Battery cooling telecom cabinet SK-216/outdoor battery enclosure made of aluminum/custom battery keeping metal case
- Cooling battery rack enclosure/outdoor battery keeping cabinet SK-253/Aluminum heat insulation enclosure with accessory Quality Choice
- Battery keeping steel cabinet/double wall battery rack enclosure with air conditioner/IP65 Ce Rosh Waterproof TUV ISO9001
- temperature sensor housing for battery storage/battery rack outdoor cabinet/enclosure/metal case SK-305 with cooling
- Low price battery enclosure SK-270WXH/fan cooling battery cabinet with locking
- SK-286 outdoor telecommunication enclosure for battery/air conditioner battery cabinet with locking door and pdu outlet
Product Details
Place of Origin: | Tianjin, China | Brand Name: | SHIYU | Model Number: | SK-185 |
Protection Level: | Other, IP54/IP55/IP65/IP66 | Type: | Control Box | External Size: | W600*D650*H595mm |
Packaging Details
Wooden case with pallets/Carton case with pallets
Product Description
IP55 rack manufacturer/SK-185 weatherproof battery enclosure wall mount/customized all size with air conditioner cooler
Specification for SK-185 Outdoor Cabinet | ||
Cabinet | External dimenison | W600*D650*H595mm |
Internal capacity | 10U, 19 inch rack. Cabinet door inside to rack mounting surface distance is 72mm. | |
Cooling system | TEC Air conditioner control system to provide the temperature alarm switch output signal. (or based on customer request) | |
Panel structure | Sanwitch panel | |
Panel Material | Galvanizing plate (Optional: aluminum, stainless steel, SPCC). Thickness as requirement | |
Color | RAL7035 grey or as as requirement | |
Protection Level | IP55/IP65/IP66 | |
Standard | IEC297-2; DIN41491;part1 | |
Environment | Operating temperature | -10°C ~ + 45 °C |
Storage temperature | -40°C ~+ 45 °C | |
operating humilidity | -40°C ~ +45 °C | |
Transporation temperature | 5% ~95% | |
Others (optional) | lighting | 48V LED light (based on request) |
sensors | Door, smoke, temeperature,water, humility (based on request) | |
cabinet bottom cable clamp and pole bracket size | Cable: 2PG25, 2PG11 Bracket: 600*544mm
| |
Environment monitor | controller with integrated power. Signal input and alarm output. (Based on request) | |
Package | Wood case. If the cabinet with air conditioner. The case must be vertically standing loaded | |

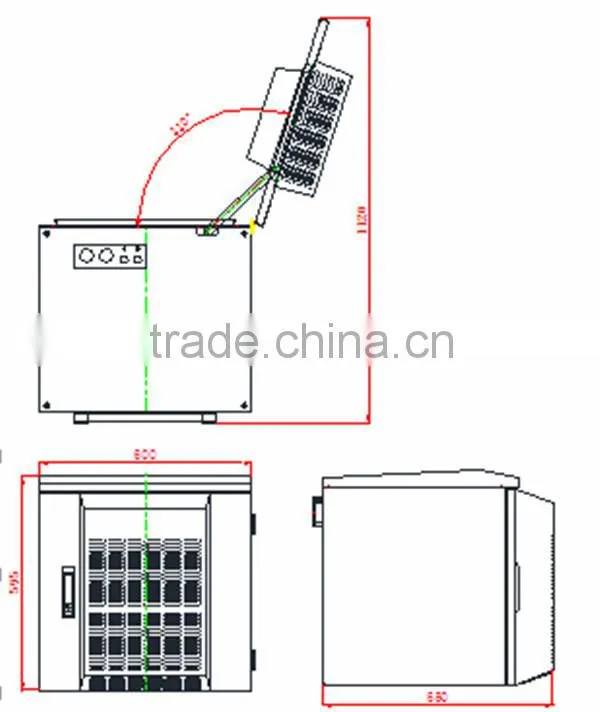

SK-185 Outdoor cabinet structure diagram

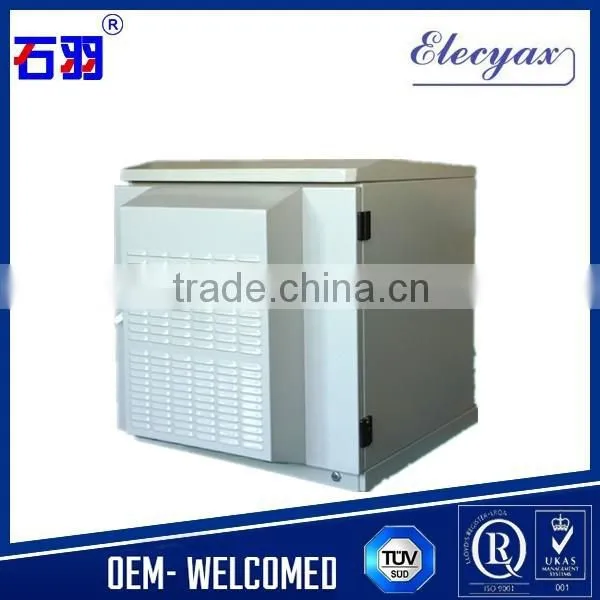

Air conditioner type SK-185 outdoor cabinet
Factory general view:
Certificates and patent
Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
Contact detail
Company Profile
Tianjin Yanxiang Electronic Science and Technology Co., Ltd, founded in 2001, is a high-tech company which combined R&D, produce and sale together. The main business scope include heat exchanger, heat exchanger communication cabinet, air conditioner battery cabinet, small outdoor integrated communication base station, network communication cabinet, controller, transducer and other related products. We also offer High and new technology consulting and transfer services. Our products have been sold to Europe, America, Southeast Asia and all over the world. It is also a qualified supplier for well-known domestic enterprises, such as Huawei Technology Company, Tianjin Broadcasting Network System, TT&C Network of China, some Communication Department of Liberation Party, and China Communications. We treat technology innovation as the guidance, do our best to satisfy customers design demand, and win the trust of customers by our high quality products and good after-sales service.
Our company passed ISO9001 Quality System Certification in 2004, and acquired many high-tech achievements and patented technologies. Many of its projects are listed as national and Tianjins key science and technology projects. Besides, It achieved China science and technology private enterprise innovation award, won the Tianjin outstanding enterprise title. Being in the technology industry leading position, we are honored as high-tech private enterprise with vitality and credible by foreign and domestic media.
Our Enterprise tenet is, it is not only to provide products, but also to provide personalized product design and technology project solution for customers. Welcome to contact us for more information.
