Battery keeping steel cabinet/double wall battery rack enclosure with air conditioner/IP65 Ce Rosh Waterproof TUV ISO9001
SK291 Outdoor communication cabinet is an communication base station integrated cabinet which combined the cabinet, telecommunication electric source, backup battery and thermal management system together.
The metal plate structure is double layers heat insulation structure, the thermal insulation material is filled in the middle of the 2 layers metal plate.
The heat insulation material use the not burning phenolic foam insulation board with good insulation performance. In order to reduce the energy consumption of the air conditioner.
In the harsh environment, the double layers heat insulation structure could provide the good working environment for the inner cabinet equipment.

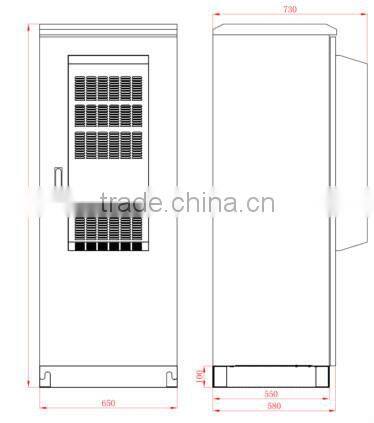

Technical Parameters
External Dimension: W650*D730*H1700mm
Equipment Compartment Space: 23U, 19” rack equipment rack (Telecom electric source occupy 1U, Customer use 22U)
Battery Compartment Space: H380mm,
Cabinet Base Height: 100mm
The anchor bolt holes: spacing distance is W600*D500mm, diameter of holes is 20mm.
Door mounted air-conditioner: 30A 48VDC Output, 90-280VAC Input (wide voltage range), 50/60Hz, 2 Pieces of 15A module (redundant configuration)
Batteries Sitting: 4 Pieces of 12V 100Ah, 6FTJ-100B front terminal VRLA gel batteries.
Cabinet Material: Main body structure is 1.5mm thickness galvanized iron.
Protection grade: IP55
Internal Structure Parameters
1, Cabinet base
2, Cabinet lower part arranged 4 pieces of 12V 100Ah batteries.
3, The division plate between the Battery compartment and equipment compartment
4, Telecommunication electric source
5, Cabinet side panels are heat insulation structure, insulation board thickness is 20mm.
6, Equipment bracket 1 pair.
7, Door mounted air-conditioner
8, The vertical cables management device (Cable management slot) 2 Pieces.
9, Cabinet door (with lock)
10, 23U 19” equipment rack.
Equipment rack depth is 400mm.
The space from equipment rack to inner cabinet door is 100mm.
11, Cabinet top is heat insulation structure, insulation board thickness is 40mm.

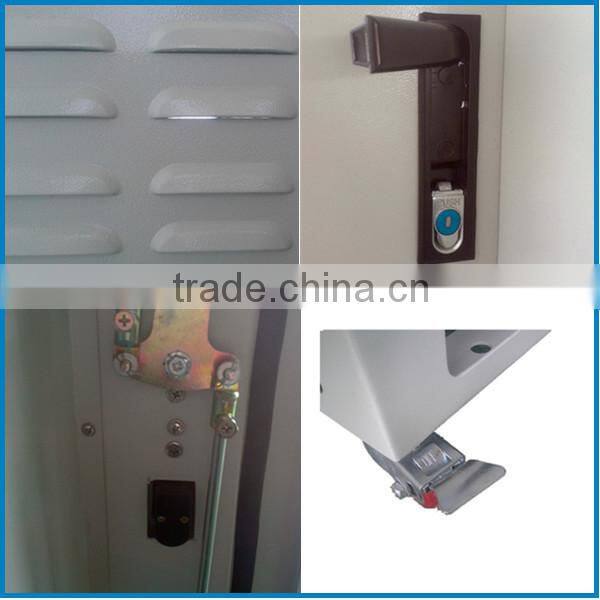

SK-291 Cabinet detail look

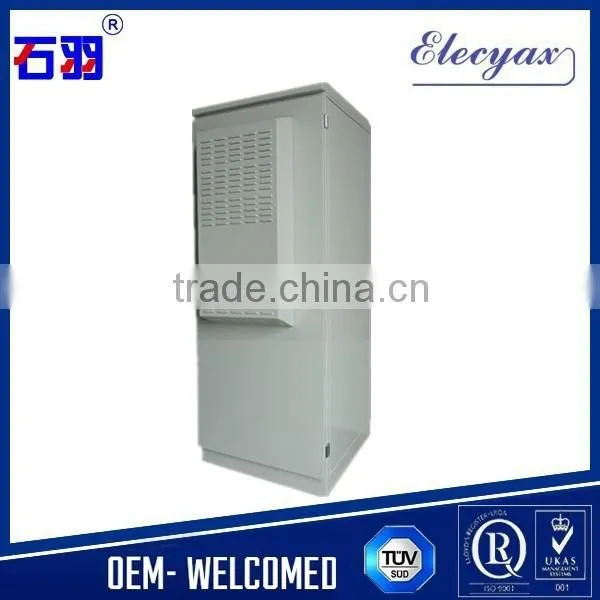

Outdoor cabinet SK-291 Photo
Certificates and Patent
Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.

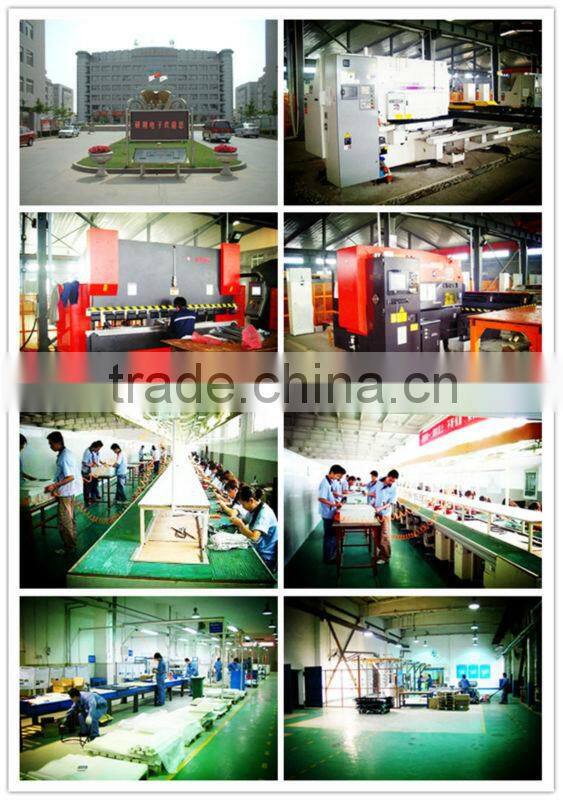

Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
