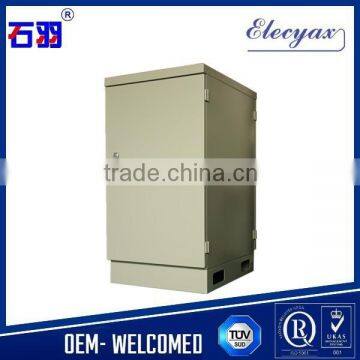

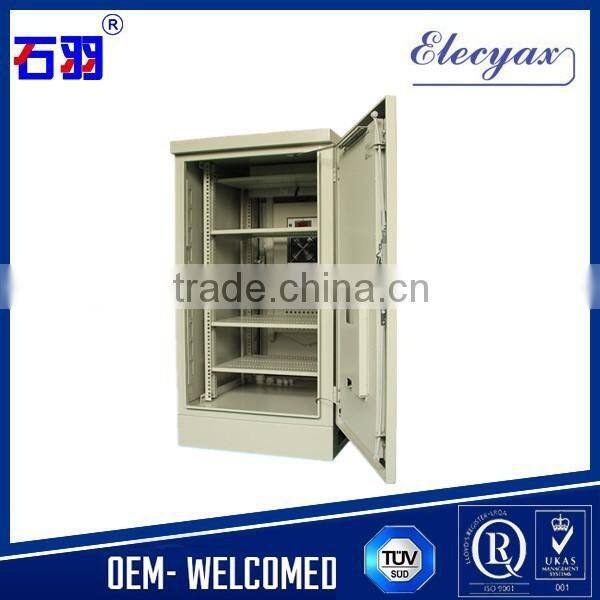

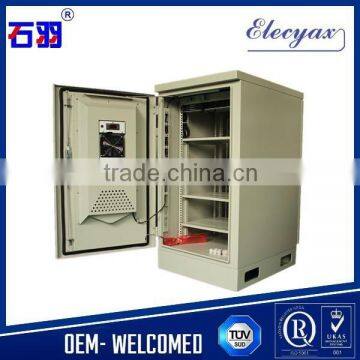

Cooling battery rack enclosure/outdoor battery keeping cabinet SK-253/Aluminum heat insulation enclosure with accessory
| Specification for SK-253 Outdoor Cabinet | ||
| Cabinet | External dimenison | W640*D650*H1240mm (If installed the air-conditioner, the cabinet depth is 810mm) |
| Internal capacity | 22U, 19 inch rack | |
| Cooling system | Door mounted 300W cooling refrigerating air conditioning, use 220VAC power supply (Optional: Filter type fans, heat exchanger, ventilation window) | |
| Panel structure | Sanwitch panel structure (or Single sheet metal) |
|
| Panel Material | 1.5 mm thickness galvanized iron (Optional: Aluminum, stainless steel, cold-rolled steel) | |
| Color | RAL7035 grey or as as requirement | |
| Protection Level | IP54/IP55/IP65/IP66 | |
| Standard | IEC297-2; DIN41491;part1 | |
| Environment | Operating temperature | -10°C ~ + 45 °C |
| Storage temperature | -40°C ~+ 45 °C | |
| operating humilidity | -40°C ~ +45 °C | |
| Transporation temperature | 5% ~95% | |
|
Others (optional) |
lighting | 48V LED light (based on request) |
| sensors | Door, smoke, temeperature,water, humility (based on request) | |
| cabinet bottom cable clamp and pole bracket size |
Cable: 2PG25, 2PG11 Bracket: 600*544mm
|
|
| Environment monitor | controller with integrated power. Signal input and alarm output. (Based on request) | |
| Package | Wood case. If the cabinet with air conditioner. The case must be vertically standing loaded | |

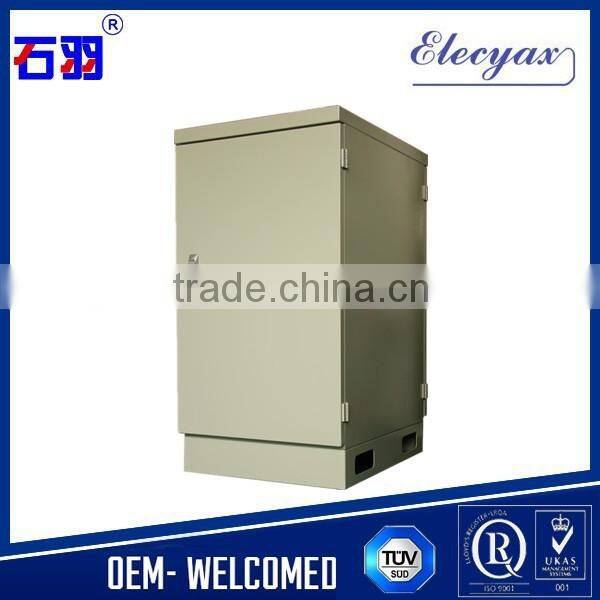

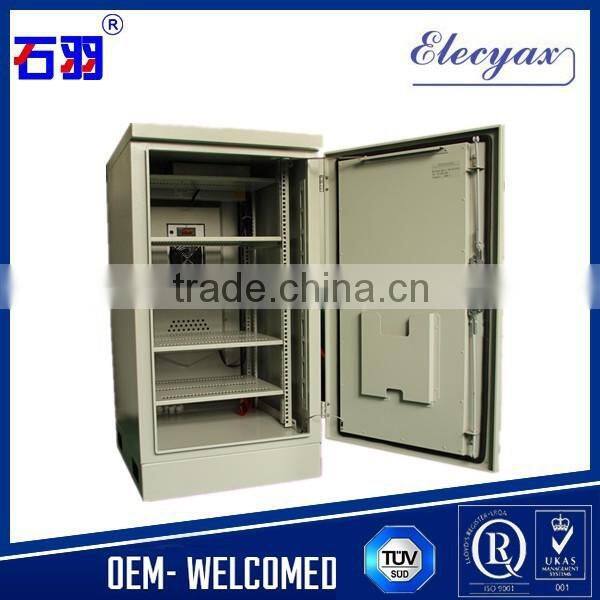

SK-253 Customized outdoor cabinet with 2 doors style
(Could also be customized as battery cabinet and installed other cooling system)

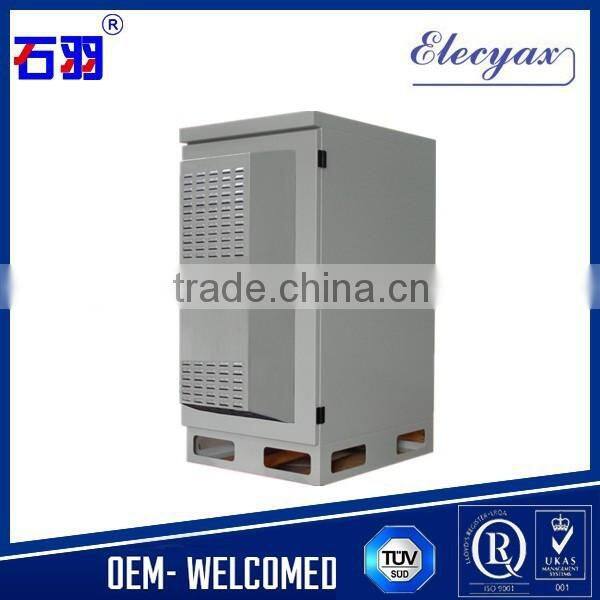

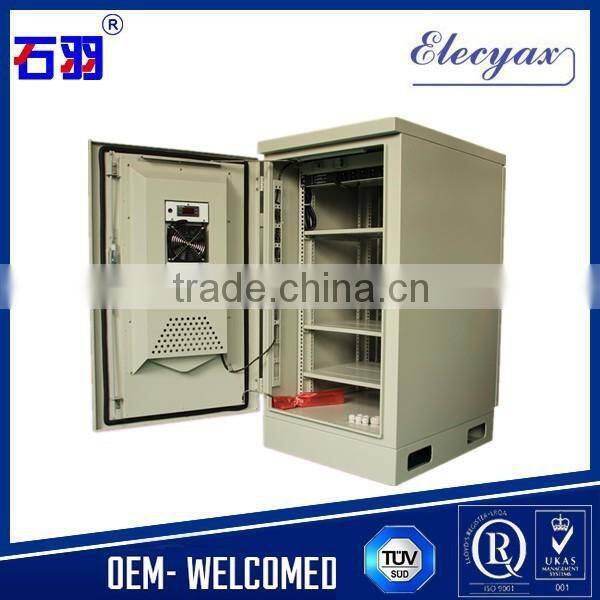

SK-253 Air conditioner type outdoor cabinet with one front door
Factory genernal look:
Certificate and patent
Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
