Goods From China CCS/Copper Parallel Telephone Cable 18AWG
US$ 0.05 - 0.75
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADP or OEM
Model Number:
Parallel Telephone Cable 18AWG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 New Products Hotsell 100M Parallel Telephone Cable 18AWGUS$ 0.05 - 0.75MOQ: 3000 Pieces -
Drop Wire Parallel Type Telephone CableUS$ 0.06 - 0.5MOQ: 30000 Meters
-
25/50/100/200/600/1200 Pairs HYAC Aerial Telephone CableUS$ 1.5 - 5MOQ: 5000 Meters
-
Cat5e Outdoor Telephone Cable 500 Pairs Underground Telephone CableUS$ 1.5 - 5MOQ: 1000 Meters
-
Rj11 Cat3 Utp Rj11 Cat3 Utp Telephone Patch Cord CableUS$ 0.2 - 10MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
ADP or OEM
Model Number
Parallel Telephone Cable 18AWG
Type
Indoor
Shielded Cable
No
Conductor Material
Copper/CCS, Copper, CCAG, CCA, CCS
Jacket Color
Black
Jacket Material
PVC/PE, PVC
Length
100m or 300m
Goods from China CCS/Copper Parallel Telephone Cable 18AWG
APPLICATION(S):
-Self supporting drop wire one pair parallel conductor drop wire intended for aerial service
connection to the subscriber.
TEMPERATURE RATING:
-Storage and operation temperature range
-20 degree to 80 degree
-Installation temperature range
-10 degree to 60 degree
Core construction:
-Conductors
18AWG solid 30% conductivity extra high strength copper covered steel
-Sheath
Black, flame-weather PVC compound extruded over two conductors in a parallel configuration.
Electrical Characteristics:
Electrical Characteristics:
-DC Conductor Resistance: (max) Ohms/kft.@ 20 degree
Individual Conductor: 24.5
-Insulation Resistance (wet)
Megohms-kft.Mininum of 15.6 degree: 100
-Dielectric Strength: (Min)
(Wet) Vdc: 7050
(Dry) Vdc: 12100
-1 kHz Mutual Capacitance: (avg.)
(Wet) F-kft: 0.040
-Attenuation: (max)
dB-kft. @75 kHz: 4.0
Specification:
| 1.PHYSICAL DIMENSIONS | |||
| Diameter of Conductor,mm | 1.02mm +/-0.01 | ||
| Min. insulation Thickness.mm | 1.00mm | ||
| OVERALL DIAMETER | Major .MM | 6.3-7.50 | |
| Minor.MM | 3.15-4.5 | ||
| H.PHYSICAL TESTS | |||
| A.Conductor | |||
| Elongation, % | 1.5 | ||
| Tensile strength,kg/mm2 | 128 | ||
| B.Insulation | |||
| Elongation, % | 7.5 | ||
| Tensile strength,kg/mm2 | 0.0186 | ||
| ELECTRICAL TESTS | |||
| Conductor Resistance,ohm/KM | 80.4 | ||

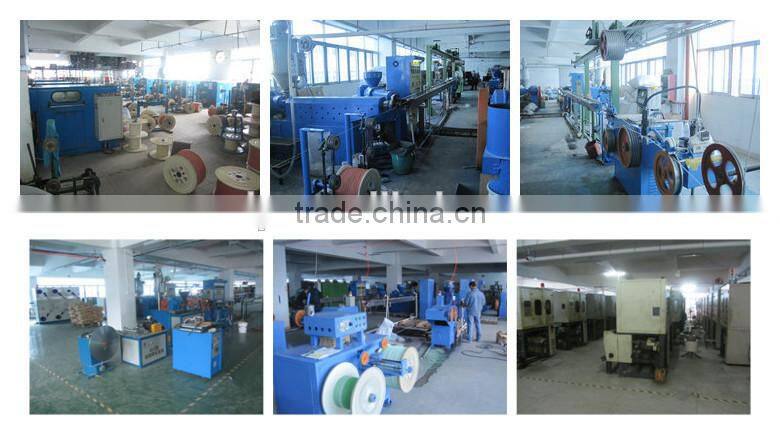

Our Factory
