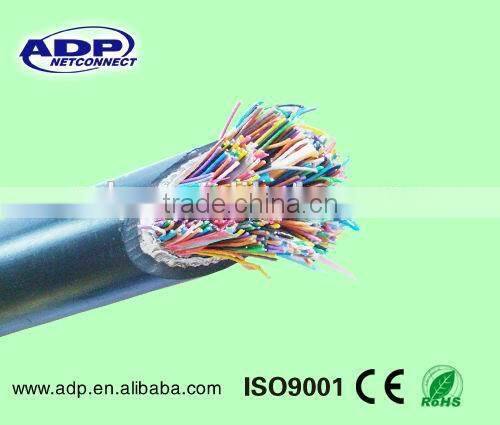

cat5e outdoor telephone cable 500 pairs underground telephone cable
| Product Specification: | ||
| Items | Descriptions | |
| Conductor | Material | Solid Bare Copper(BC);Tinned Copper(TC),Copper Clad Aluminum(CCA) |
| Diameter | 0.5/0.45/0.5/0.6/0.8mm | |
| Tensile elongation | 15% | |
| Insulation | Material | high density polyethylene HDPE |
| Nom: thickness (mm) | 0.19mm | |
| Nom insulation dia(mm) | 0.88mm±0.01mm | |
| Tensile elongation | 300% | |
| Filled | Material | Jelly filled |
| Wrap | Material | Polyester film tape(water barrier) |
| Shield | Material | no or Aluminum tape |
| Inner jacket | Material | Polyethylene (PE) |
| Armoured | Mateiral | no or Double layers steel tape |
| Outer sheath | Mateiral | Polyethylene (PE) |
Technical Data
| Conductor | solid bare copper |
| Conductor requirement | 99.99% pure copper |
| Mechanical properties | elongation 15% |
| Conductor resistance | 148 ohm/km |
| Resistance unbalance | <1.5 |
| characteristic impedance | 100+/- 15 ohm |
| Pet min thickness(mm) | >=0.04 |
| Al mylar | pet-alu-pet |
| Nom thickness | 0.2mm |
Application:
Telephone line and information transmitssion( long distance communication)
Twisted Pair Color( the 25-pair basic unit)
1.white-blue 11.black-blue 21.purple-blue
2.white-orange 12.black-orange 22.purple-orange
3.white-green 13.black-green 23.purple-green
4.white-brown 14.black-brown 24.purple-brown
5.white-grey 15.black-grey 25.purple-grey
-blue 16.yellow-blue
-orange 17.yellow-orange
-green 18.yellow-green
-brown 19.yellow-brown
-grey 20.yellow-grey

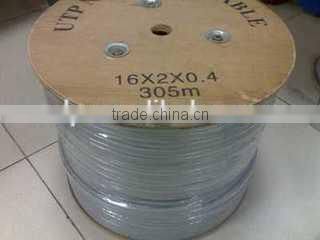

Packing
305m/drum,500m/drum,1000m/drum;or according to customers' requirement
