Drop Wire 2X18AWG, Figure 8 Telephone Drop Wire Cable
Negotiable
MOQ: 30 Kilometers (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
shenzhenADP cables
Model Number:
Self Supporting Telephone Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor Parallel Telephone Drop Wire (18 AWG 30% CCS PE Insulated)NegotiableMOQ: 30 Kilometers -
Outdoor Drop Wire Rolls 2x18 AWG 300 MeterNegotiableMOQ: 30 Kilometers
-
2 Core Ccs/bare Copper Drop Wire Telephone Cable 2*18AWGNegotiableMOQ: 30 Kilometers
-
6 Cores Telephone CableUS$ 0.05 - 0.08MOQ: 50000 Meters
-
4 Cores Telephone CableUS$ 0.05 - 0.08MOQ: 50000 Meters
Place of Origin
Guangdong, China
Brand Name
shenzhenADP cables
Model Number
Self Supporting Telephone Wire
Shielded Cable
No
Conductor Material
CU,CCA,CCS
Jacket Color
black
Jacket Material
PVC or PE
Length
100m,200m,300m/ roll
Drop Wire 2X18AWG, figure 8 telephone Drop Wire cable
APPLICATION(S):
-Self supporting drop wire one pair parallel conductor drop wire intended for aerial service
connection to the subscriber.
TEMPERATURE RATING:
-Storage and operation temperature range
-20 degree to 80 degree
-Installation temperature range
-10 degree to 60 degree
Core construction:
-Conductors
18AWG solid 30% conductivity extra high strength copper covered steel
-Sheath
Black, flame-weather PVC compound extruded over two conductors in a parallel configuration.
Electrical Characteristics:
Electrical Characteristics:
-DC Conductor Resistance: (max) Ohms/kft.@ 20 degree
Individual Conductor: 24.5
-Insulation Resistance (wet)
Megohms-kft.Mininum of 15.6 degree: 100
-Dielectric Strength: (Min)
(Wet) Vdc: 7050
(Dry) Vdc: 12100
-1 kHz Mutual Capacitance: (avg.)
(Wet) F-kft: 0.040
-Attenuation: (max)
dB-kft. @75 kHz: 4.0
Specification:
| 1.PHYSICAL DIMENSIONS | |||
| Diameter of Conductor,mm | 1.02mm +/-0.01 | ||
| Min. insulation Thickness.mm | 1.00mm | ||
| OVERALL DIAMETER | Major .MM | 6.3-7.50 | |
| Minor.MM | 3.15-4.5 | ||
| H.PHYSICAL TESTS | |||
| A.Conductor | |||
| Elongation, % | 1.5 | ||
| Tensile strength,kg/mm2 | 128 | ||
| B.Insulation | |||
| Elongation, % | 7.5 | ||
| Tensile strength,kg/mm2 | 0.0186 | ||
| ELECTRICAL TESTS | |||
| Conductor Resistance,ohm/KM | 80.4 | ||

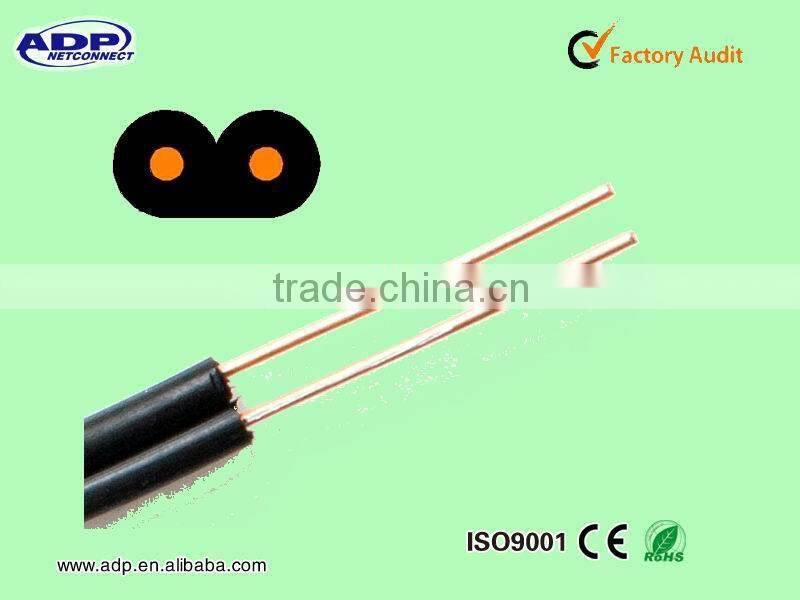

Cable image:
Certifications
Our certificates:
Company Information
Our company was estalished in 2002, we are a professional manufacturer of LAN cables, patch cord cables, alarm cables, coaxial cables, telephone cables, and fiber optic cables etc. Our total factory area is 10000 square meters, with a lot of equipment, such as high speed cross product lines, high speed cross supervisor data return line systerms and twister systerm. Our products strictly adhere to ISO9001, CE, ROHS international standards, also covering our design, development, service and managment, We have more than 150 workers, including 10 technical personnel. Our annual yearly output up to 800 USD millions.
