ADP High Quality Multi-Core Rg8 3c 2V Coaxial Cable
- Shenzhen
- T/T Credit Card
You May Like
-
500ft 1000ft Rg59 Siamese Cctv Coaxial Cable Power White Black 20awg
-
Rg59 Rg6 CCTV Cable Coaxial Cable in Egypt
-
CE Certificate Double Shielded Cable Coaxial Rg8/u Best Price
-
High Quality 50ohm Communication RG8/U Coaxial Cable
-
High Quality and Low Loss RG8/U Coaxial Cable for CCTV System
-
Hot Sale Cat5e Lan Cable With 2 Core Power Cable
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP/OEM | |
| Model Number | RG8 | Type | Coaxial | |
| Number of Conductors | 7 |
Product Description
ADP High Quality Multi-Core Rg8 3c 2V Coaxial Cable
BASIC CONSTRUCTION
| Conductor | Material | BC |
| Nom.Dia. | 7*0.8mm | |
| Dielectric | Material | SPE |
| Nom.Dia. | 7.2mm | |
| Shield | Material | BC braiding |
| Coverage | 98% | |
| Jacket | Material | PVC/PE |
| Nom.Thick. | 0.80mm | |
| Nom.Dia. | 10.3mm |
BASIC CHARACTERISTICS
| Nominal Impedance(ohm) | 50±2 | ||
| Nominal Velocity of Propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 81 | ||
| Sparker Test(VAC) | 3000 | ||
| SRL(dB) | 20 | 20 | |
#Coaxial Cables:
1) RG series Coaxial Cable: rg58,rg59, rg6, rg7, rg8, rg11, rg142, rg174, rg178, rg213, rg214, RG316,Kx6 etc.
2) JIS series Coaxial Cable: 3C-2V, 4C-2V,5C-2V
3) Combined Cable: RG59+2C power .RG6+2 C power,RG59+UTP CAT5E,RG6+UTP CAT5E
Package:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

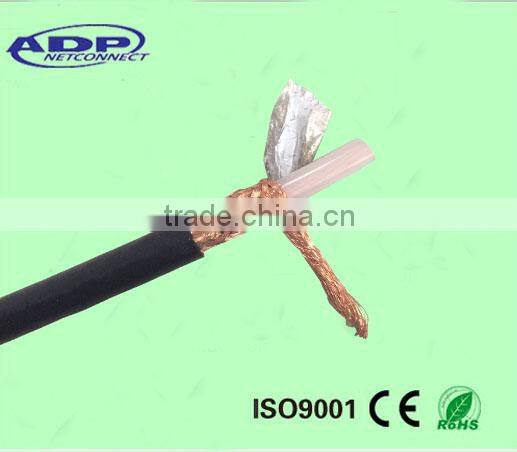

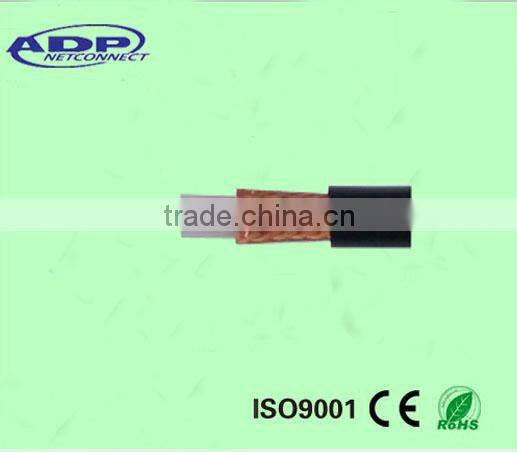

Cable Image:
Certificate:
