500ft 1000ft Rg59 Siamese Cctv Coaxial Cable Power White Black 20awg
- shenzhen
- T/T Credit Card
You May Like
-
Rg59 Rg6 CCTV Cable Coaxial Cable in Egypt
-
CE Certificate Double Shielded Cable Coaxial Rg8/u Best Price
-
High Quality 50ohm Communication RG8/U Coaxial Cable
-
High Quality and Low Loss RG8/U Coaxial Cable for CCTV System
-
Hot Sale Cat5e Lan Cable With 2 Core Power Cable
-
Cat5e Lan Cable With 2 Core Power Cable From Cable Manufacturer
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP&OEM | |
| Model Number | rg59+2c | Application | Other, CCTV,CATV,DBS Systerm | |
| Conductor Material | Copper Clad Steel | Conductor Type | Solid | |
| Insulation Material | PE |
Product Description

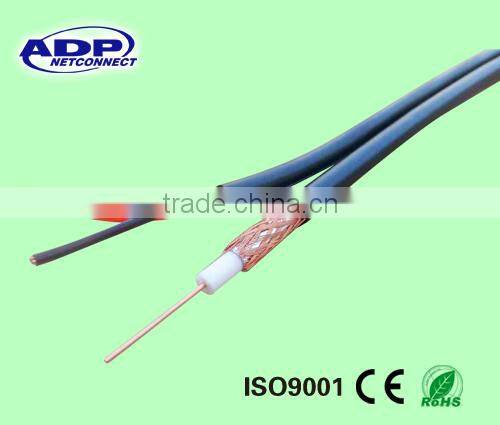

500ft 1000ft rg59 siamese cctv coaxial cable power white black 20awg
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30-- 97% available;
7) PVC jacket of Flame retardant, UV, available.
Power Cable:
1) VDE/KEMA Flexible Cord
2) Light Duty PVC Jacket Flexible Cord
3) Ordinary Duty PVC Jacket Flexible Cord
4) Wire for Internal Wiring of Equipment
Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation:
[@68 F. (20 C)] dB/100meters [@68 F. (20 C)] dB/100meters
5MHz: 2.81dB 500MHz: 18.6dB
55MHz: 6.72dB 550MHz: 19.48dB
187MHz: 11.80dB 600MHz: 20.31dB
250MHz: 13.43dB 750MHz: 22.84dB
350MHz: 15.72dB 865MHz: 24.65dB
400MHz: 16.71dB 1000MHz: 26.61dB
Pictures:

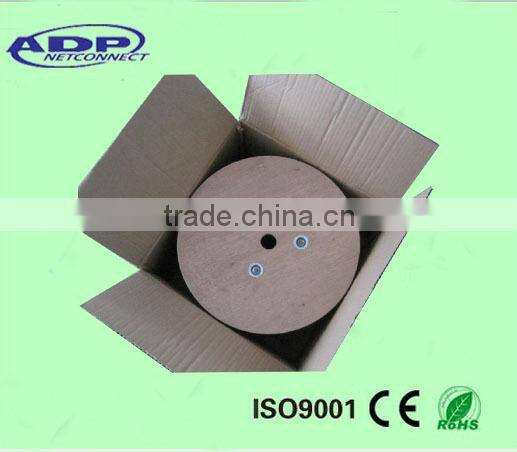

Packing image:
Our certificates:
