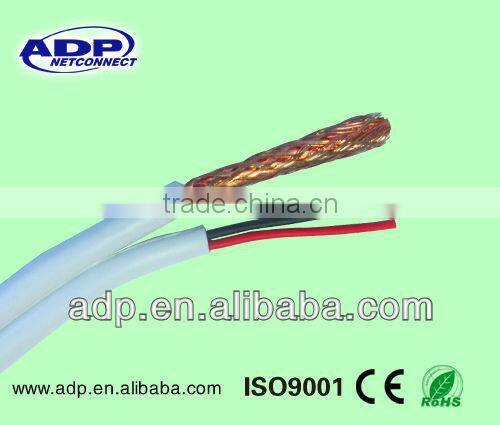

RG59 2c Coaxial Cable rg 59 + 2 Core Power for Video Camera CCTV CATV System
RG59 2c coaxial cable rg 59 + 2 core power for video camera CCTV CATV system
Product description:
Mainly used for the distribution and access of electronic communication equipment, RF transmitter
unit of communication system, buildingcabling and CATV; the most striking features are broadband
and high speed; currently, also widely used in the multimedia transmission field; conforms to RG59.
Product features:
Specificaitons | ||||||
Physical dimensions |
| |||||
component | Standard-shield | Tri-shield | Quad-shield | |||
inchs | mm | inchs | mm | inchs | mm | |
Nominal center conductor diameter | 0.032 | 0.81 | 0.032 | 0.81 | 0.032 | 0.81 |
Nominal diameter over dielectric | 0.144 | 3.66 | 0.144 | 3.66 | 0.14 | 3.66 |
Nominal diameter over first shield | 0.151 | 3.84 | 0.151 | 3.84 | 0.151 | 3.84 |
Nominal diameter over jacket | 0.24 | 6.10 | 0.24 | 6.10 | 0.265 | 6.73 |
Nominal jacket wall thickness | 0.03 | 0.76 | 0.032 | 0.81 | 0.034 | 0.86 |
Nominal diameter of steel messenger | 0.051(single) | 1.3 | 0.051(single) | 1.3 | 0.051(single) | 1.3 |
0.072(dual) | 1.83 | 0.072(dual) | 1.83 | 0.072(dual) | 1.83 | |

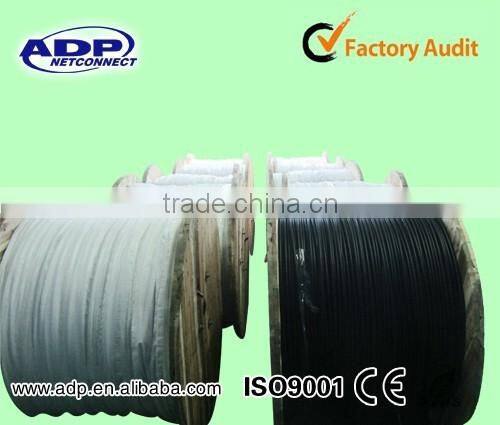

Cables showing & Packing:
