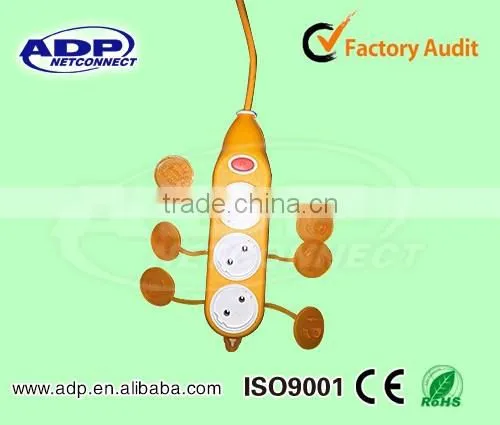

Help CenterCute Bran-new European Standard 3/4ways With Switch, Plug Receptacle With Wire
Related Products
-
Best Quantity Wall Faceplate With Modules for HDMI/VGA/Network/AV UsedUS$ 0.01 - 5MOQ: 1000 Pieces -
5Way Apple Shape Electrical Plugs Universal Extension Power SocketUS$ 1.00 - 1.00MOQ: 2000 Pieces
-
Hot-selling European Power SocketUS$ 5.00 - 5.00MOQ: 1000 Pieces
-
Electric European Power Socket ExtensionUS$ 5.00 - 5.00MOQ: 1000 Pieces
-
Extension Power SocketUS$ 5.00 - 5.00MOQ: 1000 Pieces
INPUT REQUIREMENTS
1, The range of input voltage is from 176Vac to 264Vac
2, The range of input frequency is from 47Hz to 53Hz
3, The maximum input current is 16A
4, Power waste at the empty load ≤0.5W @Vin115Vac
OUTPUT REQUIREMENTS
1 ,USB Outputs 5V/2.4A*2 5V/1A*4 (6USB MAX 6A) 5V±5%
2,AC Outlets ,4000Watts
3,Maximum peak to peak ripple & Noise 200mVp-p
4,Temperature coefficient: ±0.05%/℃ typical on all output
5,The extension socket efficiency (watts out / watts in) is higher than 82% typical while measuring at nominal line and rated load.
PROTECTION REQUIREMEN for extension socket
1,Over – voltage protection
The extension socket shall be shutdown when output voltage reaches to its over – voltage protection trigger point 6V Max .
2,Short circuit protection
No damage to the power strip power supply shall be sustained when operating any output under any line condition, into a short circuit condition for an indefinite period of time. The power supply shall be self – recovering when fault condition remove.
3,Over-current protection
The Max point of over-current protection is 1.5 times of full-load current.The power supply would be self-recovering when over-current protection was removed.
The power board will be turned off for protection when the ampere is over 16A ,pls manual recover it
RELIABILITY AND QUALITY CONTROL
[When the supply is operation within any of the limits of this specification the MTBF shall be at least 100,000 hours at 25℃(MIL-STD-217F). ]
[The power board will be performed a minimum for 4 hours Burn-In at 40℃±5℃ under full load on all power supplies calculate MTBF. ]
our products:
1.Inquiry will be replied in 24hrs;
2.Sample charge: 1-2 pcs samples offered by free;
3.OEM&ODM are welcome;
With years of export experience along with excellent quality, advanced services and competitive prices,ADP has won numerous customers' trust and support.Welcome to visit.
