Home > Electrical & Electronics > Electric Motor > DC Motor > High Quality Electrical 12v Brushless dc Motor DB2838 Permanent Magnet

High Quality Electrical 12v Brushless dc Motor DB2838 Permanent Magnet

Name: High Quality Electrical 12v Brushless dc Motor DB2838 Permanent Magnet
Brand: Sontimes
SKU: 100836161
Availability: InStock

High Quality Electrical 12v Brushless dc Motor DB2838 Permanent Magnet thumbnail-1

High Quality Electrical 12v Brushless dc Motor DB2838 Permanent Magnet photo-1

US$ 5.4 - 6.95 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Sontimes

Model Number:

GB36-3650

Contact Supplier Request Quote Chat Now

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Sontimes

Model Number GB36-3650

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance

Certification CCC, CE, ROHS

Type Gear Motor

Torque Big Dc Motor

Construction Permanent Magnet

Commutation Brushless

Protect Feature Other, waterproof/unwaterproof

Speed(RPM) 5000-100000RPM

Continuous Current(A) 0.73/0.90A

Output Power 5.8/14.6w

Voltage(V) 12/24V

Efficiency IE 3

Product Description

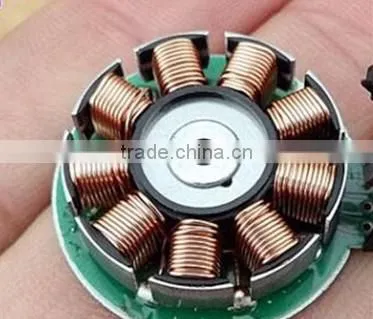

DB2838 Planetary geared brushless motors

Applications

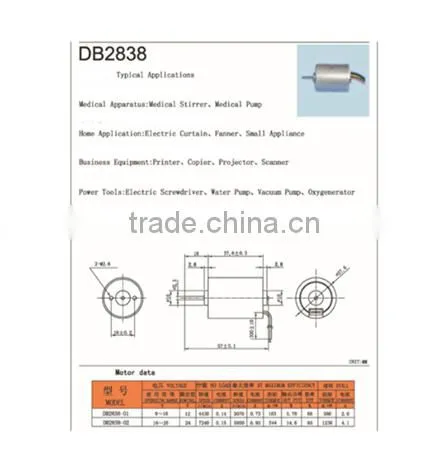

Specification of motor:

1.Motor Diameter:28.9MM

2.Motor Shaft Diameter:2.0MM( About 2MM end of the rachis )

3.Motor Height:11MM

4. Shaft length:11MM

5.Weight:31g

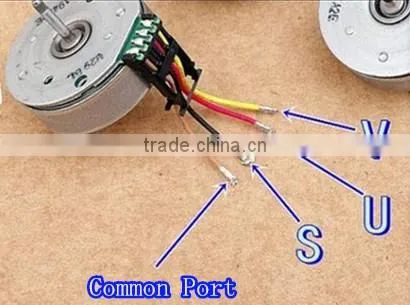

6. Actuation form: Three-phase brushless DC motor(Without Hall)

Company Information

Shenzhen Son Times Electronics and Technology Co., Ltd. was founded in Aug., 2003. We are located in Building 52, Xinxia Industrial Zone, Pinghu Town, Longgang District , Shenzhen City,Guangdong Province in China. Our company specializes in producing and developing AC and DC fans. Our company is one of the few manufactures r in this line that produce both AC and DC fans.

In our company, the traditional process of making fans has been broken, which has increased working efficiency. Our company adheres to "people oriented, honest management". The products made in our company are excellent in quality and low in price, which are popular at home and abroad.

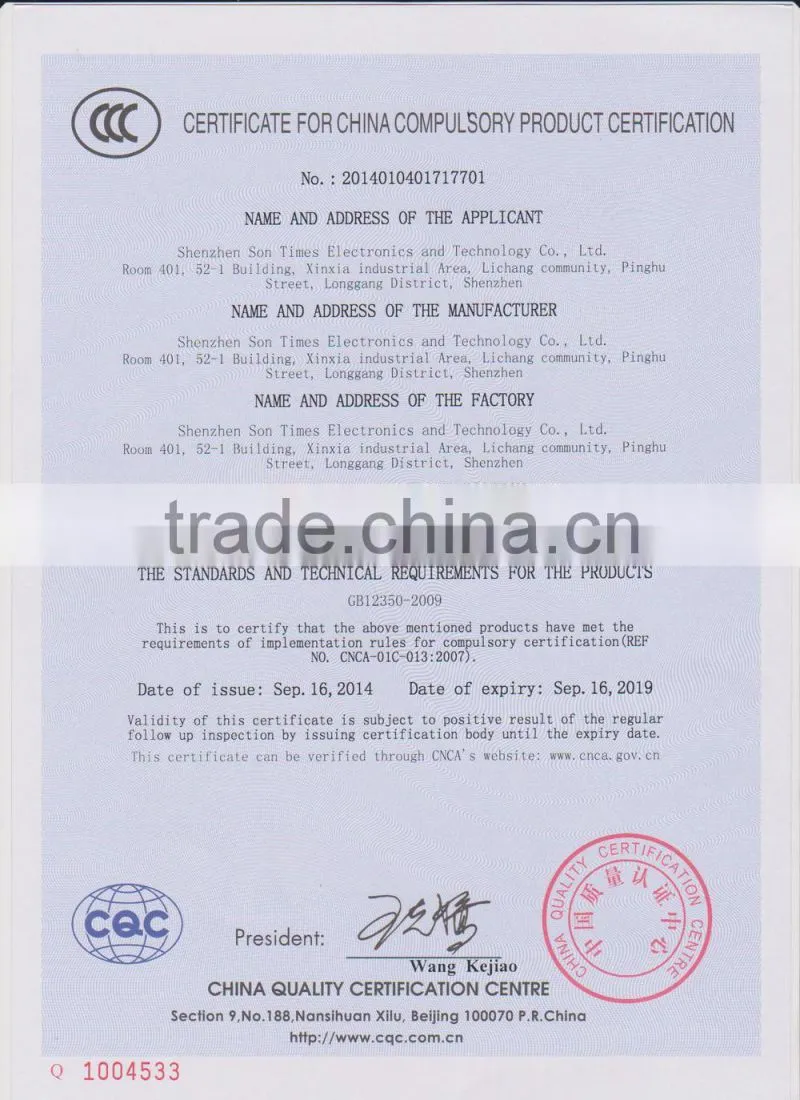

Certifications

Packaging & Shipping

FAQ

1. What is a DC Axial Fan?

An DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.

2. How to choose a DC fan?

To choose a DC fan, you should consider the points below

a. fan voltage

b. fan current

c. fan rated speed

d. fan airflow

e. fan bearing style

3. What is a bearing?

Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.

4. How do we carry out quality control?

Usually, there are two ways to monitor reliability during the manufacturing process.

a. Early Life Test

This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at 50°C+/-5°C for 24 hours.

b. On-going Reliability Demonstration

This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at 50°C+/-5°C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where necessary.

5. What can I do if we can not find the suitable fan model in the fan list?

Please contact us for customized fans.

Our Services

1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!
