Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm

Large Airflow Cooling Fan dc Brushless Fan 808025mm

Name: Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm
Brand: Sontimes
SKU: 100835921
Availability: InStock

Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm thumbnail-1

Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm thumbnail-2

Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm thumbnail-3

Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm photo-1

Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm photo-2

Large Airflow Cooling Fan dc Brushless Fan 80*80*25mm photo-3

US$ 0.3 - 1 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Contact Supplier Request Quote Chat Now

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name Sontimes

Model Number ST8025HS(B)

Voltage 12V/24V/48V

Power 0.9W-3.8W

Air Volume 32CFM-43CFM

Speed 2000RPM-3500RPM

Certification CCC, CE, ROHS

Product Description

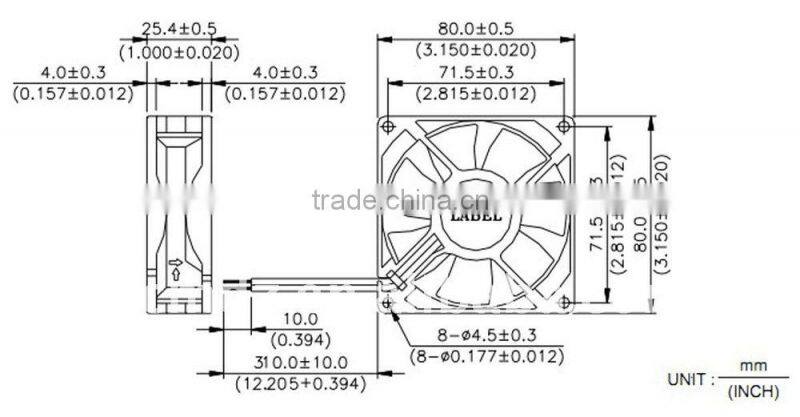

Frame size(mm)	808025mm
Bearing type	ball bearing/sleeve
Rated voltage	12/24v/48V
Rated speed	2000-3500RPM
Max air flow	32-43CFM
Max pressure	0.16-0.24inch-H2O
Max noise	20-31dBA
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material	Black PBT (UL94V-0) glass filled
frame material	PBT
Weight	58g

Company Information

Shenzhen Son Times Electronics and Technology Co., Ltd. was founded in Aug., 2003. We are located in Building 52, Xinxia Industrial Zone, Pinghu Town, Longgang District , Shenzhen City,Guangdong Province in China. Our company specializes in producing and developing AC and DC fans. Our company is one of the few manufactures r in this line that produce both AC and DC fans.

In our company, the traditional process of making fans has been broken, which has increased working efficiency. Our company adheres to "people oriented, honest management". The products made in our company are excellent in quality and low in price, which are popular at home and abroad.

Our Services

1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!
