Home > Products > New Products > Air Purifier medical equipment dc brushless fan 120*120*38mm

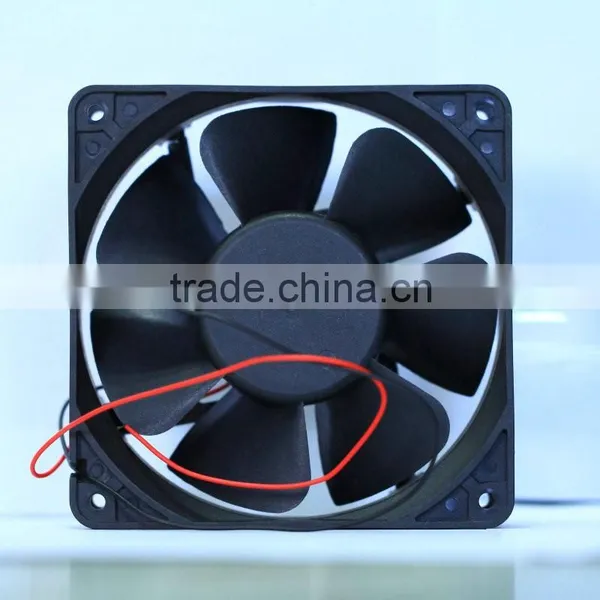

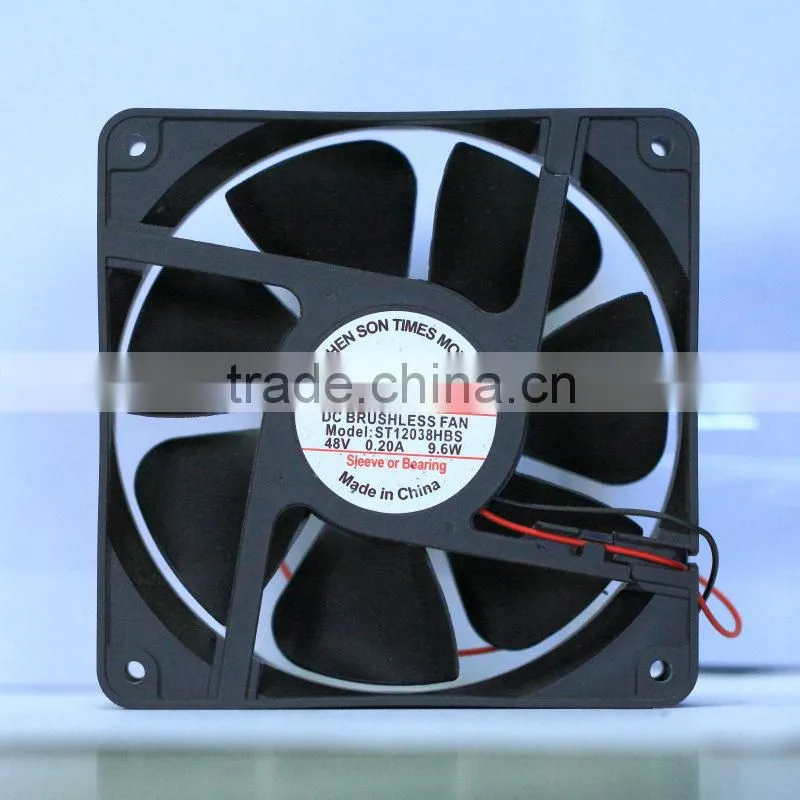

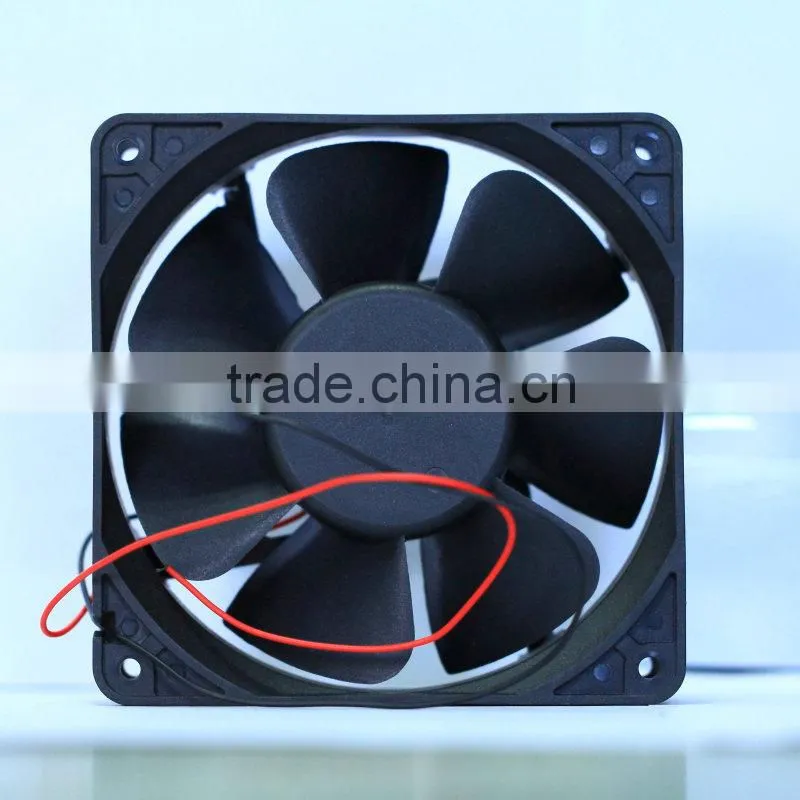

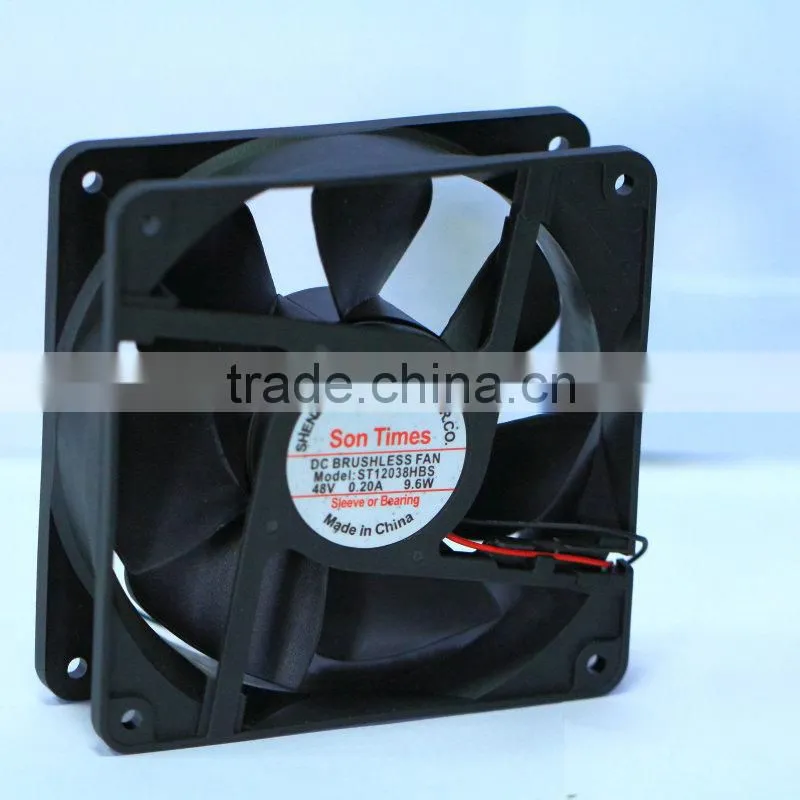

Air Purifier medical equipment dc brushless fan 120*120*38mm
USD $2.5 - $3
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
5v usb mini rechargeable bracker fan
-
Air Purifier Home humidifier DC 5v/12v/24v LED fan 40*10mm
-
New brushless solar 5v/12v/24v dc electric fan motors 40*10mm
-
5v DC rechargeable bracker mini micro usb programmable message fan
-
12v 24v small dc brushless gear motor with timing function and positive in version
-
Timing function geared 12v brushless dc motor 3650 with factory price
Product Details
| Electric Current Type | DC | Mounting | Free Standing | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | Sontimes | Model Number | ST12038AHS(B) | |
| Voltage | 12V/24V/48V | Power | 3.24W-7.68W | |
| Air Volume | 95CFM-120.07CFM | Speed | 2000RPM-3500RPM | |
| Certification | CCC, CE, ROHS |
Product Description
Product Description

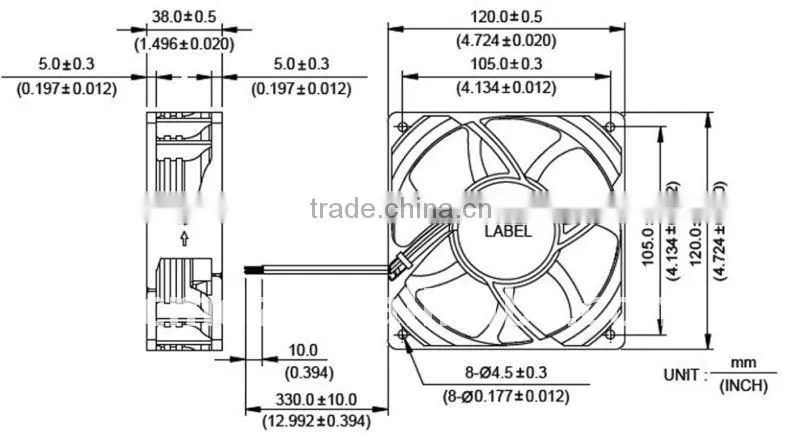

| 1 | Frame size(mm) | 120*120*38mm |
| 2 | Bearing type | sleeve,hypro bearing,ball bearing |
| 3 | Rated voltage | 12V/24V/48V |
| 4 | Rated speed | 1500-3200RPM |
| 5 | Max air flow | 122CFM |
| 6 | Max pressure | 10.mmAq |
| 7 | Max noise | 48dBA |
| 8 | Functions | by impedance,FG |
| 9 | Safety approvals | CE ROHS UL |
| 10 | Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| 11 | Insulation resistance | 100M ohm between lead wire and frame(DC 500V) |
| 12 | Life expectancy (ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| 13 | Life expectancy (hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| 14 | Operation temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
| 15 | Storge temperature | -40~75 degree C(-40~167 degree F) |
| 16 | Protection | Motor protection and polarity protection |
| 17 | Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
| 18 | Plastic material | PBT |
Company Information
Shenzhen Son Times Electronics and Technology Co., Ltd. was founded in Aug., 2003. We are located in Building 52, Xinxia Industrial Zone, Pinghu Town, Longgang District , Shenzhen City,Guangdong Province in China. Our company specializes in producing and developing AC and DC fans. Our company is one of the few manufactures r in this line that produce both AC and DC fans.
In our company, the traditional process of making fans has been broken, which has increased working efficiency. Our company adheres to "people oriented, honest management". The products made in our company are excellent in quality and low in price, which are popular at home and abroad.
Our Services
- 1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
- 2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
- 3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
- 4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!
