Specifications
Network Cables UTP FTP Cat6 23AWG FLUKE pass lan cables1.CE,ROHS,ISO,FLUKE.
2.Material: Solid CU
3.New material of PE PVC
Product Description
1 Cables are ISO9001: 2000, CE standard
2 Shielded or unshielded
3 UTP, STP, FTP and SFTP
4 PE and PVC Jacket

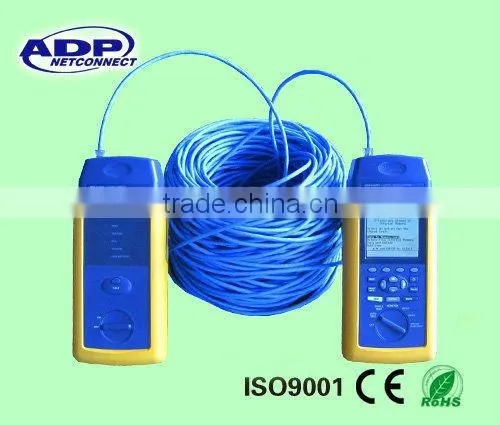

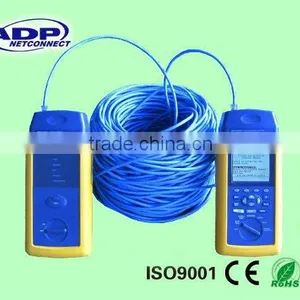

5 cat5e and cat6e are already passed FLUKE-4300 test.
6 ROHS and LSZH

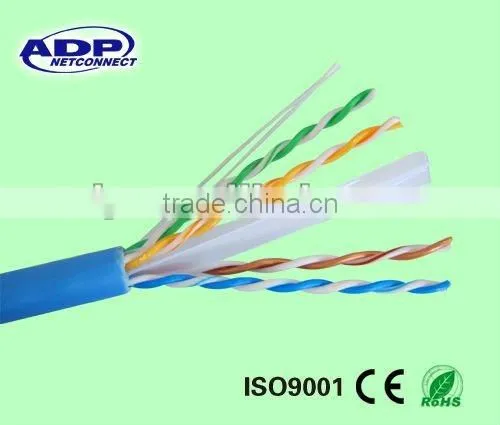

Cable Construction:
Conductor Dimension: 0.57mm
Core Dimension: 0.92mm 0.95mm
No. Of Pairs: 4
Nom. OD: 5.8mm
Type of Jacket: PVC
Remark:350MHz 500MHz
Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
Packing:
1 Packing Lengths: 305m/roll 1000ft/roll
Other lengths available according to client's request.
2 Inner packing: Wooden reel, plastic reel, and paper pullbox available.
3 Outer packing: Carton box, pull out box, pallet available.
4 Other packing available according to client's request.
|
Frequency (MHZ) |
Impedance (db) |
RL (db) |
Attenuation (db) |
Next Worst Pair (db) |
Next Power Sum(db) |
ELFEXT (db) |
ELFEXT Power Sum(db) |
Nominal Velocity Propagation(C) |
0.772 |
100±15 |
19.4 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
0.65 |
1.0 |
20.0 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
||
4.0 |
23.0 |
3.8 |
65.3 |
63.3 |
55.8 |
52.8 |
||
8.0 |
24.5 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
||
10.0 |
25.0 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
||
16.0 |
25.0 |
7.6 |
56.2 |
54.2 |
43.7 |
40.7 |
||
20.0 |
25.0 |
8.5 |
54.8 |
52.8 |
41.8 |
38.8 |
||
25.0 |
24.3 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
||
31.25 |
23.6 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
||
62.5 |
21.5 |
|
47.4 |
45.4 |
31.9 |
28.9 |
||
100.0 |
20.1 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
||
200.0 |
18.0 |
29.0 |
39.8 |
37.8 |
21.8 |
18.8 |
||
250.0 |
100±22 |
17.3 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
