Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Cat6A STP Lan Cable

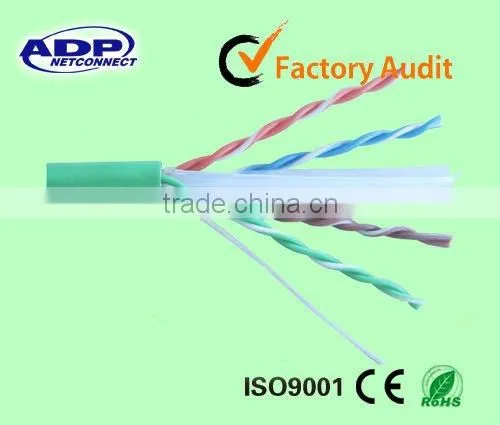

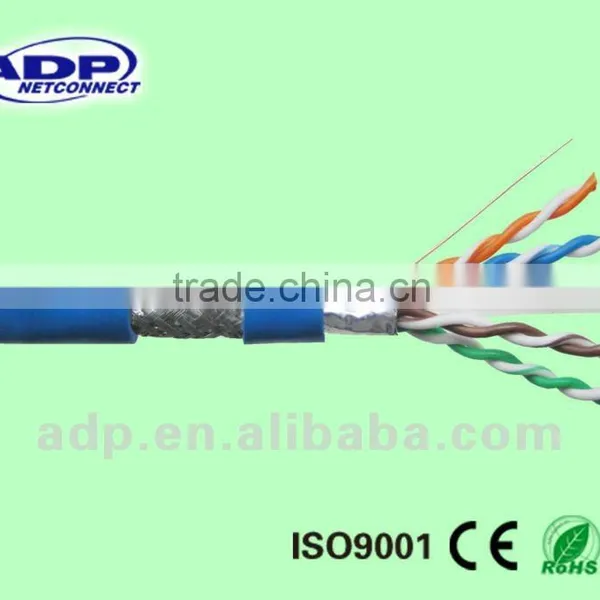

Cat6A STP Lan Cable

Name: Cat6A STP Lan Cable
Brand: ADP Cable
SKU: 100835619
Availability: InStock

US$ 10 - 110 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ADP Cable

Model Number:

cat6A

Contact Supplier Request Quote Chat Now

Shenzhen ADP Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ADP Cable

Model Number cat6A

Type Cat 6

Number of Conductors 8

Specifications

Cat6A STP lan cable
FLUKE/CE/ROHS/ISO
Conductor:CU/CCA/CCS/CCS+CCA
Shield:UTP/STP/FTP/SFTP
Connect distance:100-160m worki

Cat6A STP lan cable

1)Specification: 4P+F

2) Rated Temperature: 60 or 75

3)Unshielded twisted pairs:

4)Conductor: 26AWG or 24AWG copper,CCA,CCS etc

5)Insulation: HD-PE/PE

6)Filler: PE Cross or FM-PE Thin slice

7)Unrip rope: optional

8)Jacket: PVC or LSNH PVC etc

9)Impedance:100±15%Ωat 1~250MHz

10)Reference standard: YD/T1019-2001ISO/IEC11801ANSI/TIA/EIA-568BUL 444

11)Print Legend: CM or CMR

Cable Assembly Specification:

Conductor		Insulation		Core Number	Filler	Jacket
AWG	Specification (mm)	Material	Thickness (NOM.mm)	Core Number	Filler	Material	Thickness (NOM.mm)	OD (NOM.mm)
26	1/0.404	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	5.5
26	7/0.16	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	5.5
24	1/0.58	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	6.5
	1/0.58	HD-PE	0.18	4P	FM-PE Thin slice	PVC or LSNH	0.55	6.0
	7/0.203	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	6.2
	7/0.203	HD-PE	0.18	4P	FM-PE Thin slice	PVC or LSNH	0.55	5.8

USE: Mainly uses in the building correspondence synthesis wiring system the work area correspondence leading-out terminal and between the connection distribution frame wiring, as well as the housing synthesis wiring system's user correspondence leading-out terminal arrives at place of exile between coil's wiring.
