Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > 97*33mm Waterproof dc 12v Fan Blower

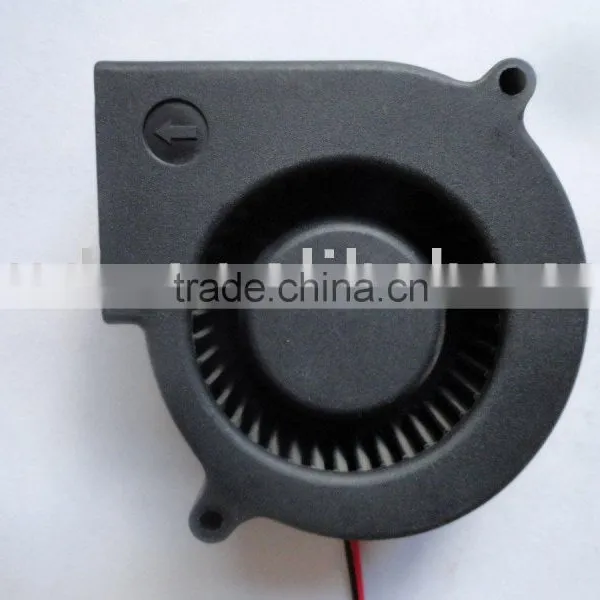

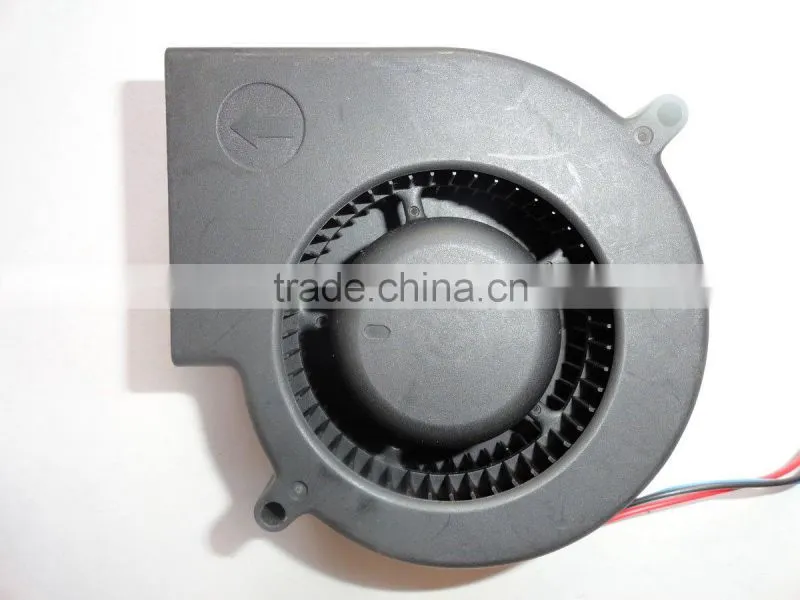

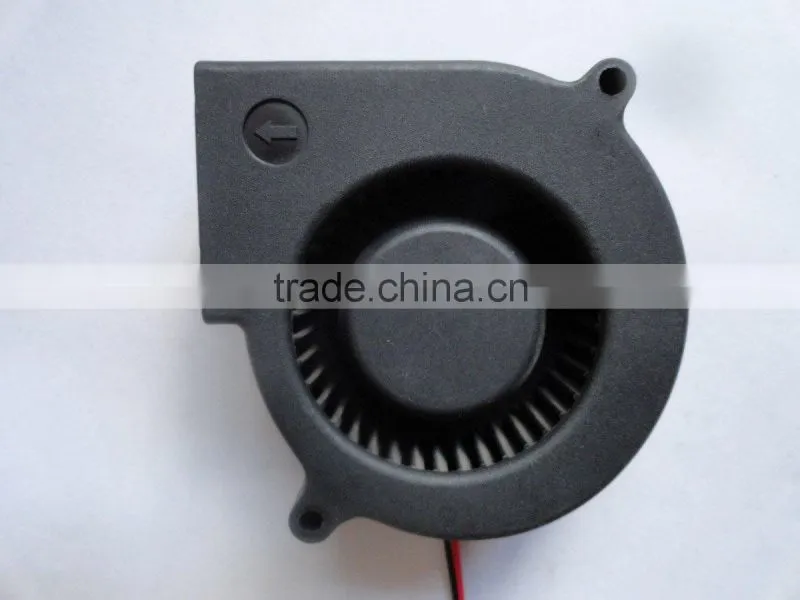

97*33mm Waterproof dc 12v Fan Blower

97*33mm Waterproof dc 12v Fan Blower thumbnail-1
97*33mm Waterproof dc 12v Fan Blower photo-1
US$ 1.1 - 2.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Son Times Electronics & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Free Standing
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name SON TIMES
Model Number ST9733HS(B)
Voltage 12/24V
Power 5.16-8.40W
Air Volume 45-55CFM
Speed 3200-3700RPM
Certification CE

Specifications

1.waterproof dc 12v fan blower
2.size:97*33mm
3.rated voltage:12/24
4.ball bearing/sleeve
5.3200-3700RPM,0.22-0.70A

97*33mm waterproof dc 12v fan blower97*33mm waterproof dc 12v fan blower



Frame size(mm) 97*97*33mm
Bearing type ball bearing/sleeve
Rated voltage 12/24v
Rated speed 3200-3700RPM
Max air flow 45-55CFM
Max pressure 0.88-1.24inch-H2O
Max noise 47-51dBA
Functions by impedance,FG
Safety approvals CE ROHS
Dielectric Strength  5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance 100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature -10~80 degree C(+14~176 degree F)
Storge temperature -40~75 degree C(-40~167 degree F)
Protection Motor protection and polarity protection
Lead wire  UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material Black PBT (UL94V-0) glass filled
frame material PBT
Weight 164g
