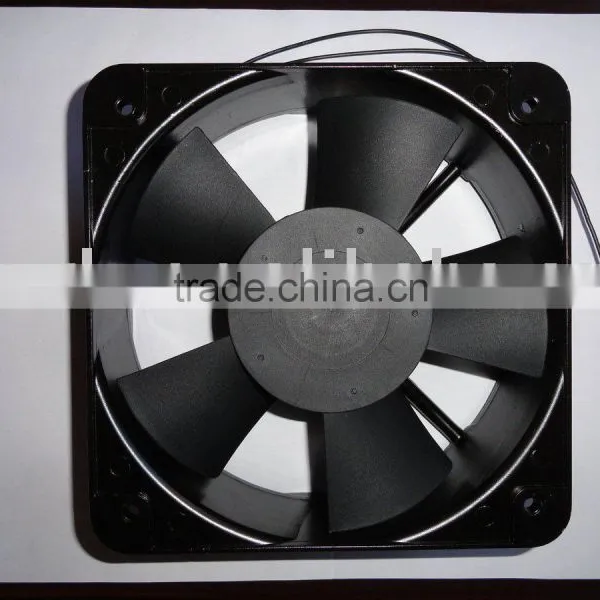

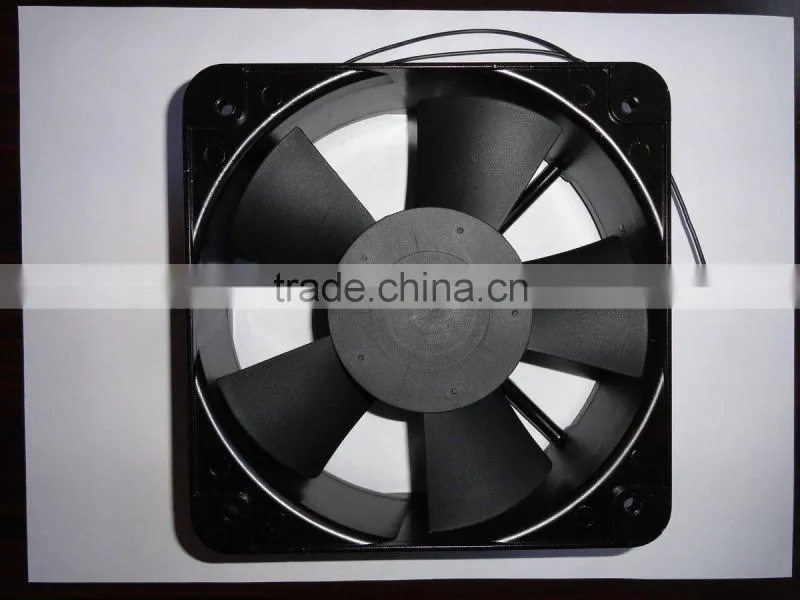

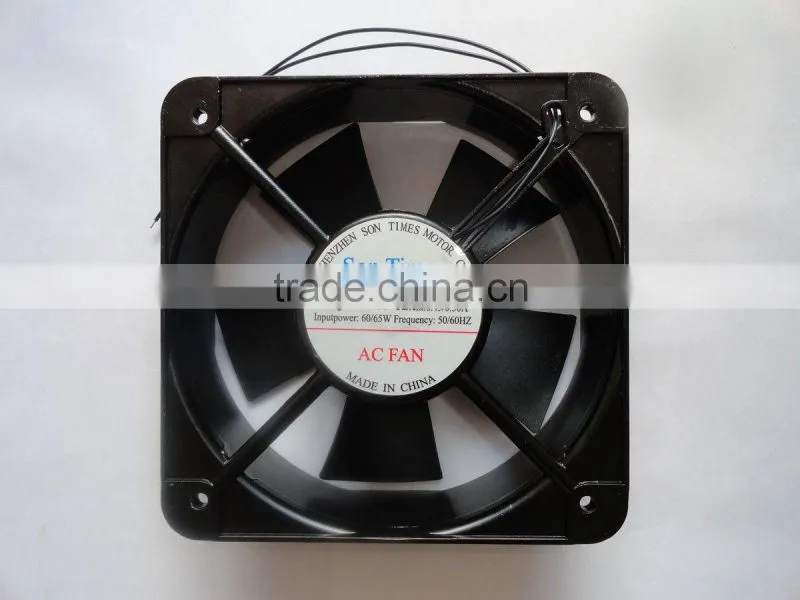

200*60mm Competitive Price ac Fan Axial

Name: 200*60mm Competitive Price ac Fan Axial
Brand: SON TIMES
SKU: 100835571
Availability: InStock

US$ 8 - 10 MOQ: 500 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type AC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST20060HB

Voltage 110/220V

Power 50-77W

Air Volume 335-350CFM

Speed 2300-2500RPM

Certification CE

Specifications

petitive price ac fan axial
2.size:200*200*60mm
3.ball bearing.
4.rated voltage:110/220v
5.large airflow.long life

Frame size(mm)	20020060mm
Bearing type	ball bearing
Rated voltage	115V/50,60HZ, 230V/50,60HZ
Rated speed	2300~2700RPM
Max air flow	450-520CFM
Max pressure	15-17mmH2O
Max noise	57-59dB
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG18,20; UL1007 AWG18,22; UL1061 AWG22
fan blade material	Black PBT (UL94V-0) glass filled
frame material	Aluminium alloy
Weight	1700g
