Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > 120*38mm dc Ps3 Cooling Fan

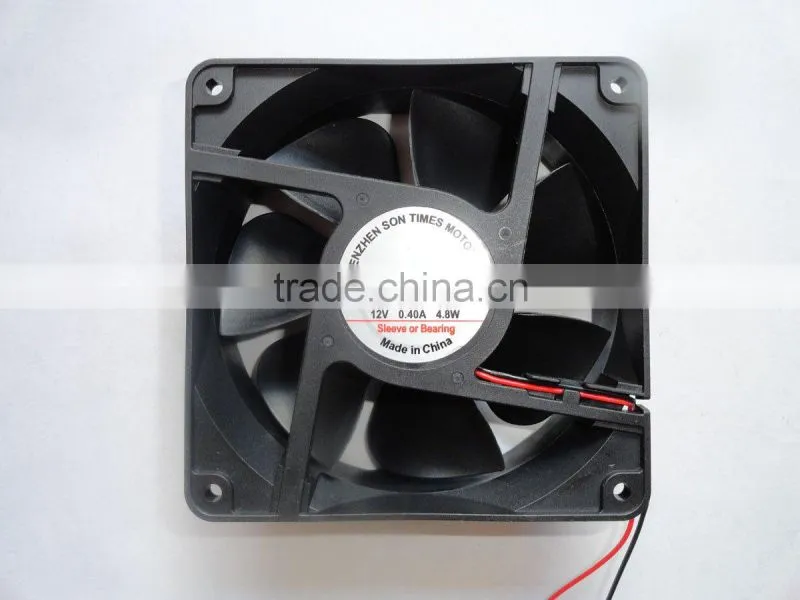

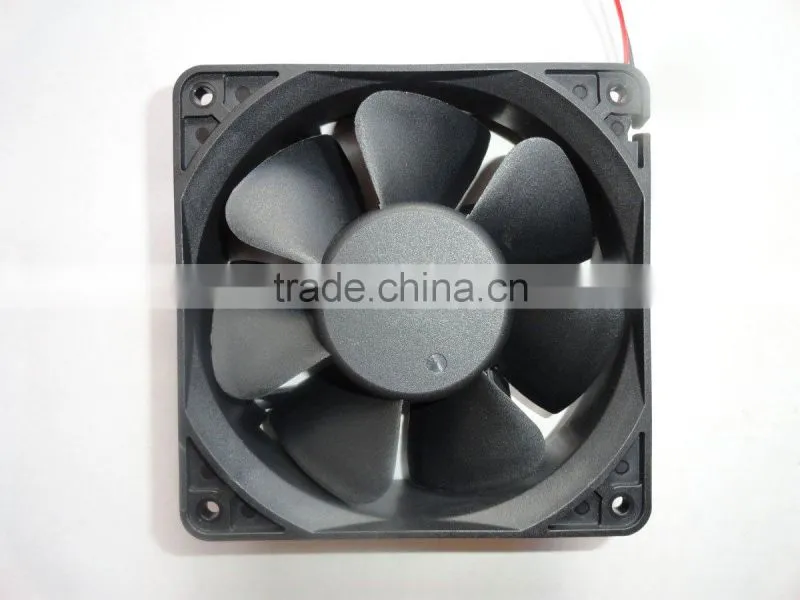

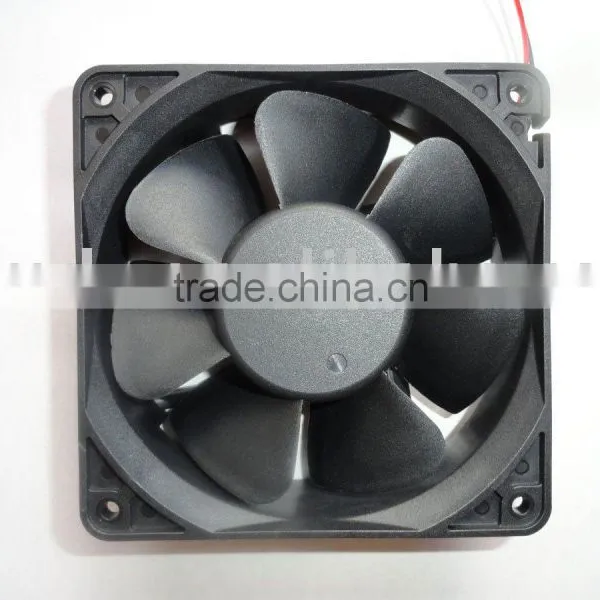

120*38mm dc Ps3 Cooling Fan
US$ 1.5 - 2.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Super High Power 40*28mm Waterproof dc FanUS$ 1 - 2MOQ: 1000 Pieces -
50*15mm Waterproof Cooling Blower FanUS$ 0.5 - 1.5MOQ: 1000 Pieces
-
75*30mm Waterproof dc Fan AxialUS$ 1 - 2MOQ: 1000 Pieces
-
97*33mm Waterproof dc 12v Fan BlowerUS$ 1.1 - 2.5MOQ: 1000 Pieces
-
120*32mm Waterproof dc Blower FanUS$ 1.5 - 3.5MOQ: 1000 Pieces
Electric Current Type
DC
Mounting
Free Standing
Blade Material
Plastic
Place of Origin
Guangdong, China
Brand Name
SON TIMES
Model Number
ST12038HS(B)
Voltage
12/24V
Power
3.24-7.68W
Air Volume
95-120.07CFM
Speed
2400-3000RPM
Certification
CE
Specifications
1.dc ps3 cooling fan2.size:120*120*38mm
3.rated voltage:12/24v
4.ball bearing/sleeve
5.2400-3000RPM,0.09-0.51A
| Frame size(mm) | 120*120*38mm | |
| Bearing type | ball bearing/sleeve | |
| Rated voltage | 12/24v | |
| Rated speed | 2400-3000RPM | |
| Max air flow | 95-120CFM | |
| Max pressure | 0.33-0.42inch-H2O | |
| Max noise | 31-33dBA | |
| Functions | by impedance,FG | |
| Safety approvals | CE ROHS | |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame | |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) | |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |
| Operation temperature | -10~80 degree C(+14~176 degree F) | |
| Storge temperature | -40~75 degree C(-40~167 degree F) | |
| Protection | Motor protection and polarity protection | |
| Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 | |
| fan blade material | Black PBT (UL94V-0) glass filled | |
| frame material | PBT | |
| Weight | 262g |
