24 AWG CCA cat5e function network cable
Characteristics:
UTP Network Cat5e Cabling
pper conductor
2.Insulation : HDPE
3 LSZH PVC Jacket
4.CE certified, fluke test
Specifcation :
1. Inner Conductor : 24 AWG Copper
2. Insulation : High Density Polyethylene (HDPE)
3. Jacket : Low smoke Zero Halogen PVC
4.Thickness of Insulation : 0.91±0.005mm
5.Nominal O.D. : 5.0± 0.2MM
6. manufacturer , certified ISO9001 quality control procss , fast delivery
7. CE certified , RoHS

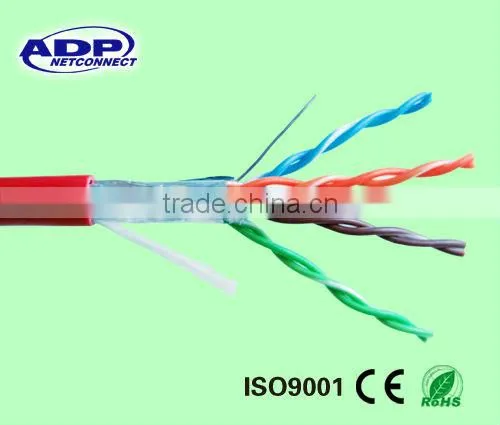

Core Identification:
Pair 1 : Blue , White / Blue
Pair 2 : Orange , White /Orange
Pair 3 : Green , White / Green
Pair 4 : Brown , White /Brown
Packing :
Quantity per box: 305m/box
Out carton size : 350x350x220mm
G.W.: 20.00Kgs / Box
Loading Quantity : 900boxes per 20'ft container
1860boxes per 40'GP container
2170boxes per 40'HQ container
Description
This type of cable is main used in structured cabling for computer networks such as Ethernet , supports a frequency range of up to 150MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet) . It is also used to carry other signals such as telephony and video . UPT CAT5E LAN CABLE 4PR 24awg.
Specifications of cat5e utp lan cable 4pr 24awg 23awg:
| Conductor |
Thick. of Insulation mm |
Nominal O.D mm |
Nominal Weight Kgs/305 box |
| 24 AWG | 0.91± 0.005 | 5.0±0.2 | 9.0 |
Electrical Characteristics of cat5e utp lan cable 4pr 24awg 23awg:
Max . Conductor Resistance:9.2Ω/100m Min . Insulation Elongation:300%
Max . Resistence Unbalance:2.4% Min . Propagation Velocity:0.62Cm/s
MIn . Conductor Elongation:20% Min . Insulation Resistance:7000MΩ/km
Characteristic Umpedance:100 ± 15 Ω
Type: |
0.5MM ,0.48MM,0.45MM,0.4MM,CU/CCA/CCS CAT5E CABLE FLUKE TEST |
|||||||
Standard |
ISO/IEC11801 ANSI/EIA/TIA568-B.2 |
|||||||
Conductor |
Material |
Pure Copper |
||||||
Diameter |
(1/0.50+-0.01mm) |
|||||||
Construction |
4*2*0.50mm,4*2*0.48mm,4*2*0.45mm,4*2*0.4mm |
|||||||
Ripcord |
yes |
|||||||
Dielectric |
Material |
PE new material |
||||||
Insulation thickness |
0.269MM+-0.05mm |
|||||||
Insulation OD |
0.975MM+-0.03mm |
|||||||
Pair |
4pair |
|||||||
Thickness |
0.6mm+-0.1mm |
|||||||
Jacket Nominal O.D |
Overall Diameter |
5.3mm+-0.1mm |
||||||
Suitable for |
indoor |
|||||||
Work Data pass |
>150m |
|||||||
Legend(Surface Ink Print) |
CATEGORY5e UTP CABLE 24AWG 4PAIR ............... As customer order |
|||||||
Rated Temperate |
70c |
|||||||
Packing |
packing |
1000ft/roll..............As customer order |
||||||
Package |
pull easy box, Paper carton |
|||||||
Carton Size |
copper conductor |
|
38*38*46CM |
|
|
|
|
|
Q'TY /CTN |
|
2box/carton |
|
|
|
|||
Skype: begoniachen
more information, please feel free to request. it will be answer within 24 hours.
