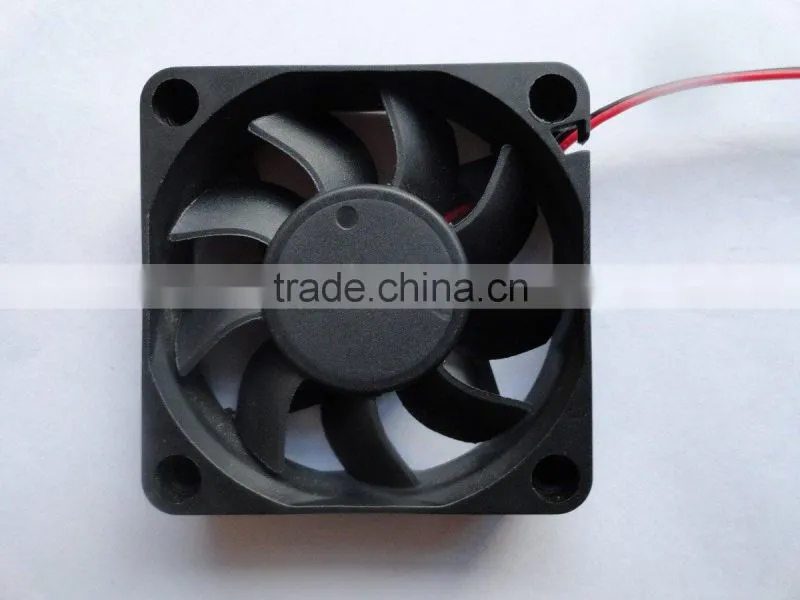

High Temperature Fan 12v dc

Name: High Temperature Fan 12v dc
Brand: SON TIMES
SKU: 100834937
Availability: InStock

US$ 0.84 - 1.5 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST6025HS

Voltage 12V/24V

Power 1.44-2.64W

Air Volume 50-75CFM

Speed 3500-4500RPM

Certification CE

Specifications

1. high temperature fan 12v dc
2.size:60*60*25mm
3.sleeve,ball bearing
4.rated voltage:12v/24v
5.low noise,large airflow

high temperature fan dc 12v

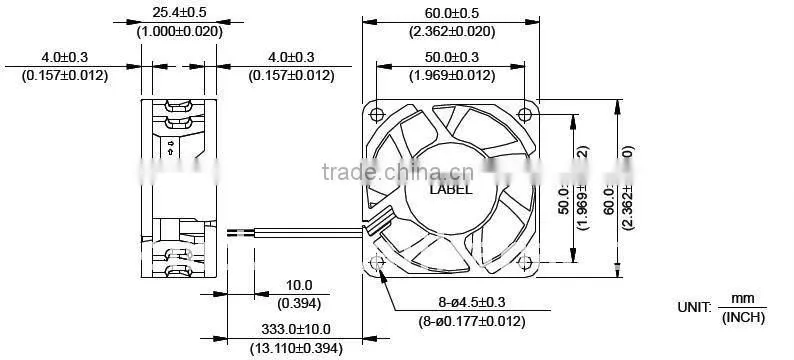

	Frame size(mm)	606025mm
	Bearing type	ball bearing/sleeve
	Rated voltage	12/24v
	Rated speed	3500-4500RPM
	Max air flow	50-75CFM
	Max pressure	0.15-0.26inch-H2O
	Max noise	29-31dBA
	Functions	by impedance,FG
	Safety approvals	CE ROHS
	Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
	Insulation resistance	100M ohm between lead wire and frame(DC 500V)
	Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
	Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
	Operation temperature	-10~80 degree C(+14~176 degree F)
	Storge temperature	-40~75 degree C(-40~167 degree F)
	Protection	Motor protection and polarity protection
	Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
	fan blade material	Black PBT (UL94V-0) glass filled
	frame material	PBT
	Weight	56g
