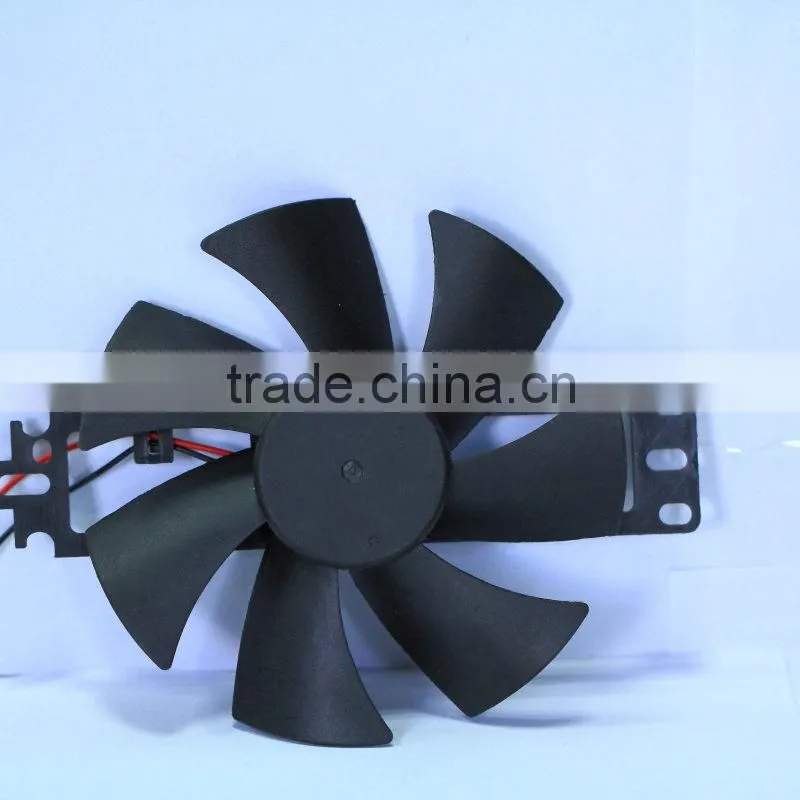

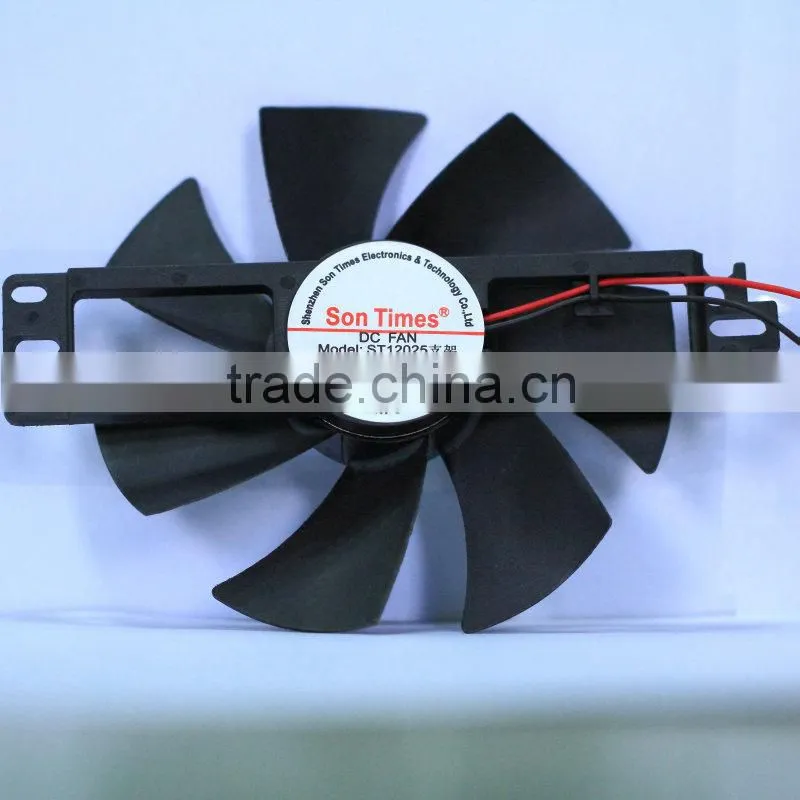

120*25mm Induction Cooker Fan

120*25mm Induction Cooker Fan thumbnail-1
120*25mm Induction Cooker Fan thumbnail-2
120*25mm Induction Cooker Fan photo-1
120*25mm Induction Cooker Fan photo-2
US$ 0.55 - 1.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Son Times Electronics & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Free Standing
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name SON TIMES
Model Number ST12025HS(B)
Voltage 12/24V/48V
Power 1.44-4.32W
Air Volume 60.6-74.06CFM
Speed 1800-2200RPM
Certification CE, ROHS



Product Description

 120*25mm induction cooker fan120*25mm induction cooker fan



Frame size(mm) 120*120*25mm
Bearing type ball bearing/sleeve
Rated voltage 12/24v/48v
Rated speed 1800-2200RPM
Max air flow 75-90CFM
Max pressure 0.14-0.20inch-H2O
Max noise 29-33dBA
Functions by impedance,FG
Safety approvals CE ROHS
Dielectric Strength  5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance 100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature -10~80 degree C(+14~176 degree F)
Storge temperature -40~75 degree C(-40~167 degree F)
Protection Motor protection and polarity protection
Lead wire  UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material Black PBT (UL94V-0) glass filled
frame material PBT





Company Information



       Shenzhen Son Times Electronics and Technology Co., Ltd. was founded in Aug., 2003. We are located in Building 52, Xinxia Industrial Zone, Pinghu Town, Longgang District , Shenzhen City,Guangdong Province in China. Our company specializes in producing and developing AC and DC fans. Our company is one of the few manufactures r in this line that produce both AC and DC fans.

     In our company, the traditional process of making fans has been broken, which has increased working efficiency. Our company adheres to "people oriented, honest management". The products made in our company are excellent in quality and low in price, which are popular at home and abroad.



Our Services



Our Services
  • 1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
  • 2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
  • 3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
  • 4.We provide considerate and meticulous service, and fast on time delivery.
    Our goal: be the best cooling fan manufacturer, even in the world!
