Excellent Quality Small Fan

Name: Excellent Quality Small Fan
Brand: SON TIMES
SKU: 100834845
Availability: InStock

US$ 0.45 - 1.5 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST3010HS

Voltage 5V/ 12V

Power 0.40-0.84W

Air Volume 12-18CFM

Speed 6000-10000RPM

Certification CE

Specifications

1.low noise dc mini fan

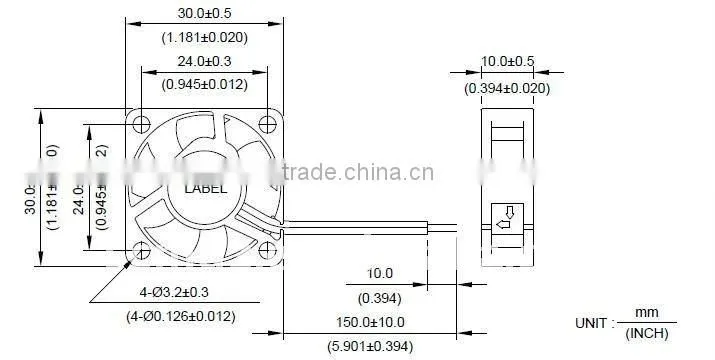

2.size:30*30*10mm
3.bearing type:sleeve,ball bearing
4.rated voltage:5v 12v
5.low noise,long-life

low noise dc mini fan

Frame size(mm)	303010mm
Bearing type	ball bearing/sleeve
Rated voltage	5/12v
Rated speed	8000-10000RPM
Max air flow	12-18CFM
Max pressure	0.07-0.15inch-H2O
Max noise	16-18dBA
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material	Black PBT (UL94V-0) glass filled
frame material	PBT
Weight	8g
