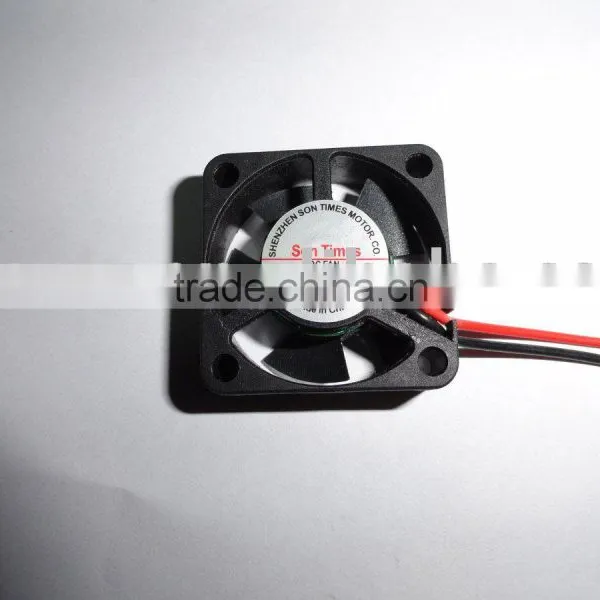

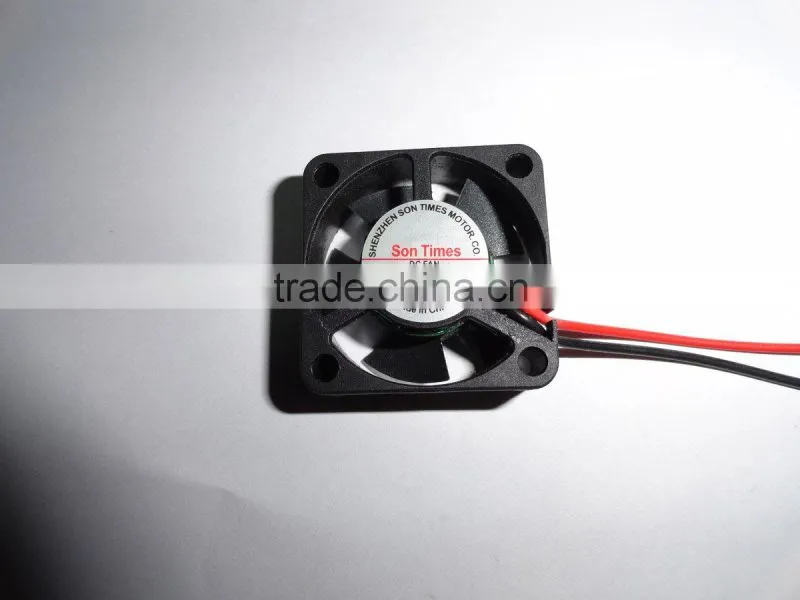

Low Noise dc Fan 5v 12v 30mm

Name: Low Noise dc Fan 5v 12v 30mm
Brand: son times
SKU: 100834673
Availability: InStock

US$ 0.75 - 2.05 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name son times

Model Number ST3010HS(B)

Voltage 5v/12v

Power 0.48-0.76W

Air Volume 12-18CFM

Speed 6000-10000RPM

Certification CE

Specifications

1.low noise dc fan 5v 12v
2.Size:30*30*10mm
3..Sleeve bearing/ball bearing
4.Max airflow:18CFM,5/12v
5.Max noise:28.4db

low noise dc fan 5v 12v

Frame size(mm)	303010mm
Bearing type	hypro bearing.sleeve.ball bearing
Rated voltage	5V
Rated speed	9500RPM
Max air flow	5.6CFM
Max pressure	5.49mmAq
Max noise	28.4dBA
Functions	by impedance,by IC, FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
Plastic material	Motor protection and polarity protection
