12v dc cooling fan for ps3 and computer

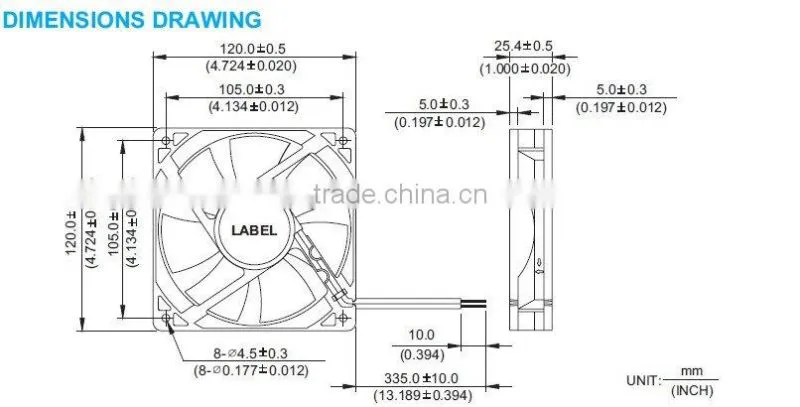

| Frame size(mm) | 120*120*25mm |
| Bearing type | ball.sleeve, |
| Rated voltage | 12v |
| Rated speed | 1500-2500RPM |
| Max air flow | 98.6CFM |
| Max pressure | 4.54mmAq |
| Max noise | 43.3dBA |
| Functions | by impedance,by IC, FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 10M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
| Plastic material | PBT |
1.Home appliance
2. Computer
3.Car industry
4. Office Electrics
5.Medical Equipment
6. UPS Power
7. LED Lighting
8. Kitchen
9.Safety Equipment
10. Telecom
Shenzhen Son Times Electronics and Technology Co., Ltd. was founded in Aug., 2003. We are located in Building 52, Xinxia Industrial Zone, Pinghu Town, Longgang District , Shenzhen City,Guangdong Province in China. Our company specializes in producing and developing AC and DC fans. Our company is one of the few manufactures r in this line that produce both AC and DC fans.
In our company, the traditional process of making fans has been broken, which has increased working efficiency. Our company adheres to "people oriented, honest management". The products made in our company are excellent in quality and low in price, which are popular at home and abroad.
1: I want to get some free samples from your company, can I?
A: Company policy that all customers must pay sample fee and shipping costs, when you place an order, sample fee will be returned to you.
2: We'd like to print our LOGO on the appliances. Can you make it?
A: We provide OEM service which including logo printing, gift box design and carton design. you can also use our Logo "SonTimes“.
3: Can you do OEM?
A: Yes.
4: How to control our products' quality?
A:All products have to go through five checks in the whole process.
--Raw Material Inspection
--Plastic Injection Inspection
--Motor production Inspection
--Assembling Line Inspection
--AQL Sampling
5: How about the Delivery Time?
A: 2-30 working days after the receipt of deposit and confirmation on all designs based of normal condition.
6. What can I do if we can not find the suitable fan model in the fan list?
A: Please contact us for customized fans.
- 1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
- 2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
- 3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
-
4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!
