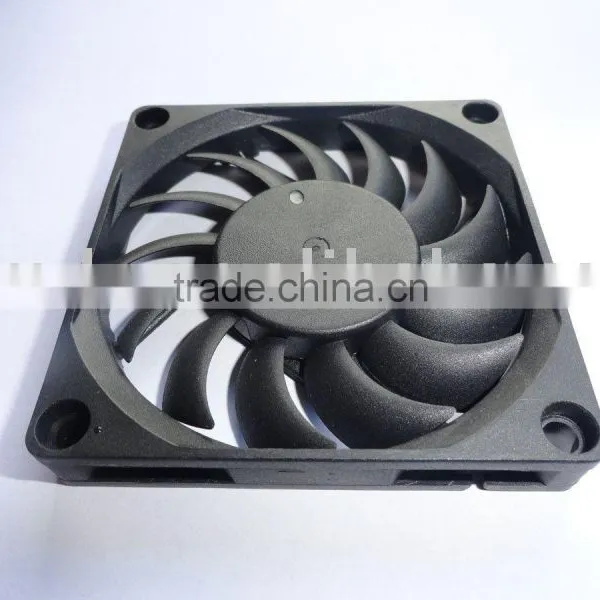

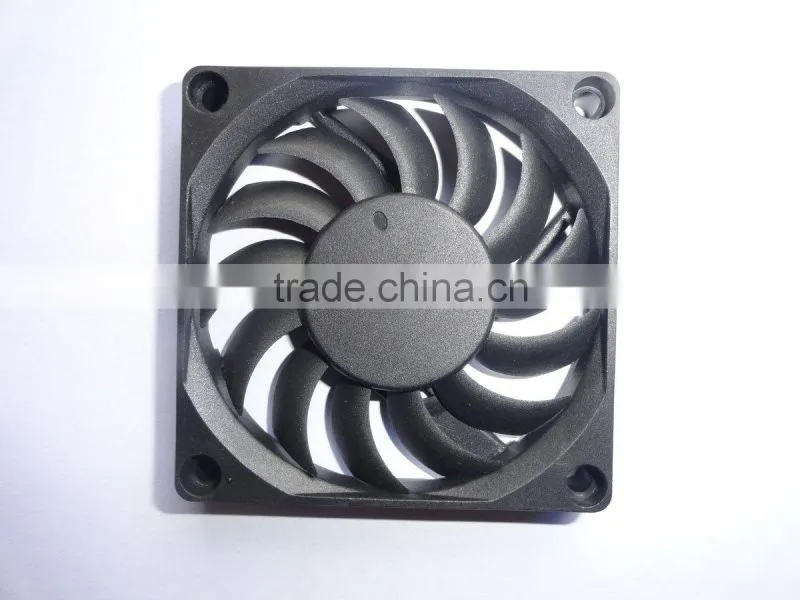

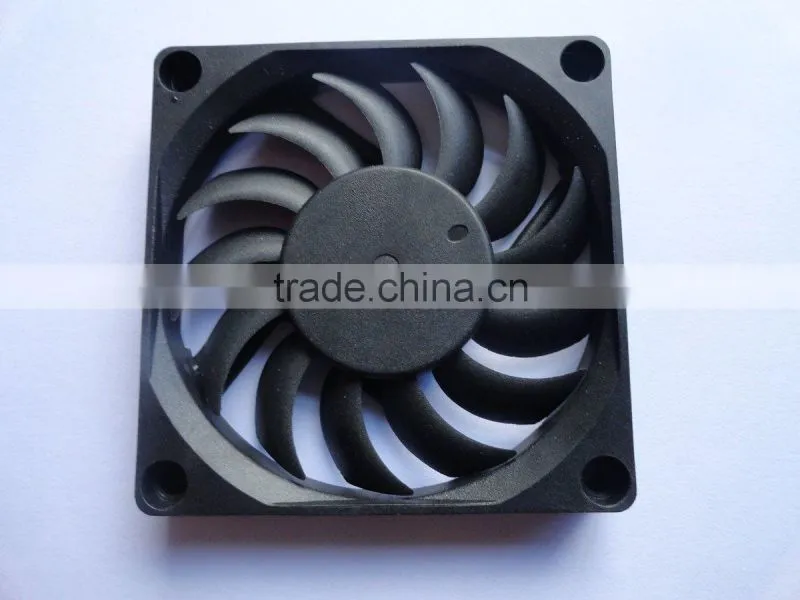

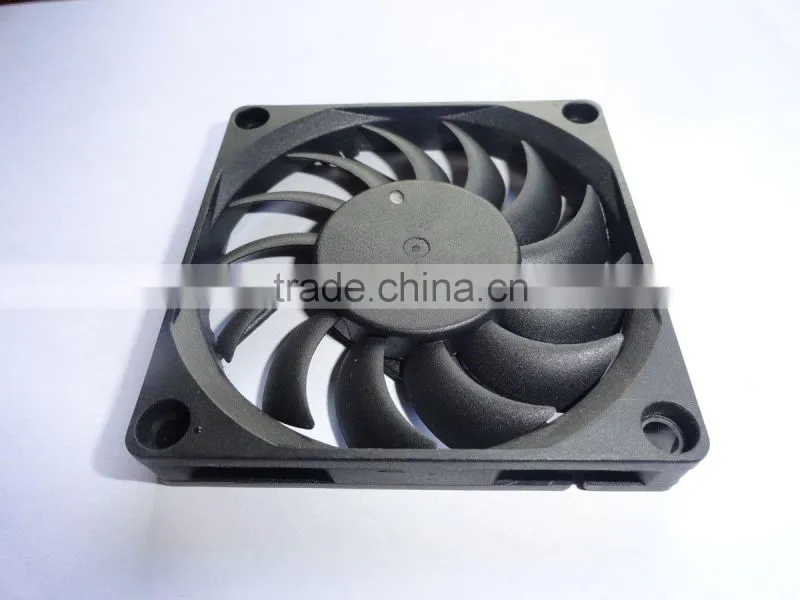

Quiet Energy -saving Axial dc Fan
US$ 0.4 - 0.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v dc Cooling Fan for Ps3 and ComputerUS$ 0.6 - 2MOQ: 1000 Pieces -
ST5015HB Waterproof dc Brushless Blower FanUS$ 1 - 1.5MOQ: 1000 Pieces
-
Computer dc Cooling Fan 12vUS$ 0.3 - 1MOQ: 1000 Pieces
-
Excellent Quality DC Brushless FanUS$ 0.25 - 1.5MOQ: 1000 Pieces
-
Long -life .large Airflow Ps3 Cooling FanUS$ 0.3 - 0.5MOQ: 1000 Pieces
Electric Current Type
DC
Mounting
Free Standing
Blade Material
Plastic
Place of Origin
Guangdong, China
Brand Name
SON TIMES
Model Number
ST7010HS
Voltage
12V
Power
1.68-2.64w
Air Volume
50CFM
Speed
2600-4200RPM
Certification
CE
Specifications

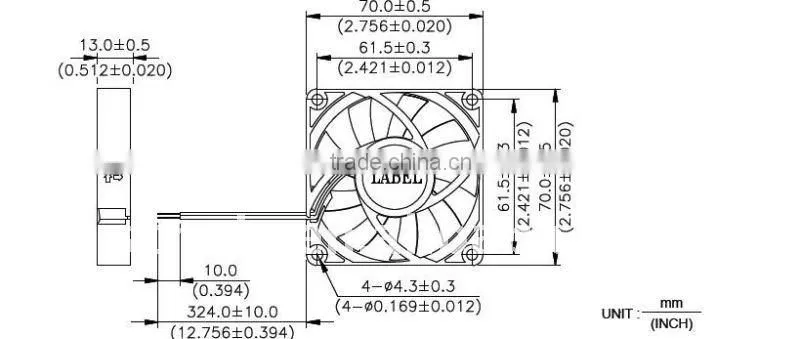

1.quiet energy-saving axial dc fan2.size;70*70*10MM
3.,large airflow.energy-saving.
4.rated voltage:12v
5.sleeve bearing
quiet energy-saving dc fan
| Frame size(mm) | 70*70*10mm |
| Bearing type | sleeve |
| Rated voltage | 12v |
| Rated speed | 2600-4200RPM |
| Max air flow | 50CFM |
| Max pressure | 4.66mmAq |
| Max noise | 18dBA |
| Functions | by IC, by IC with FG,by IC with RD,VS+RD,PWM+FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 10M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 7000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
| Plastic material | PBT |
