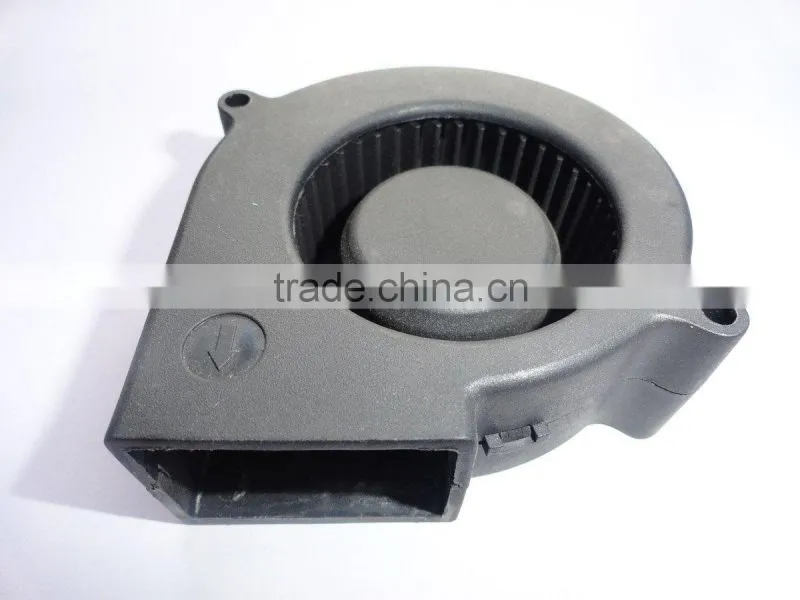

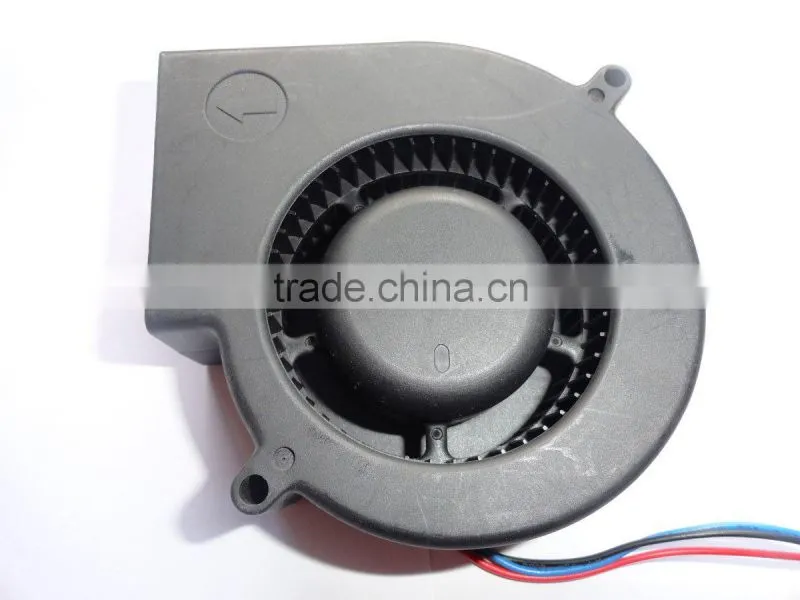

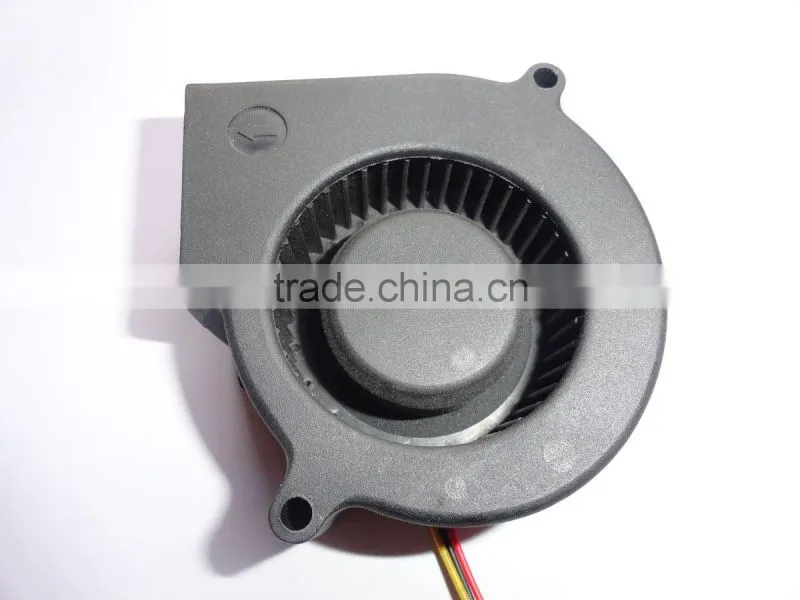

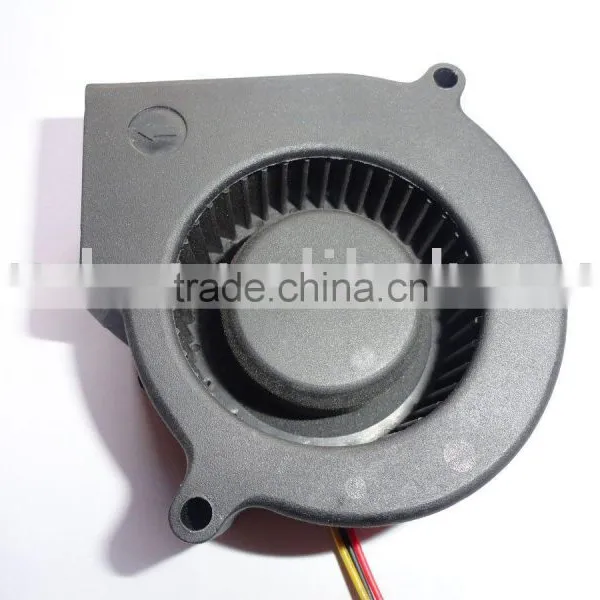

ST5015HB waterproof dc brushless blower fan
USD $1 - $1.5
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
Electric Current Type: | DC | Mounting: | Free Standing | Blade Material: | Plastic |
Place of Origin: | Guangdong, China | Brand Name: | SON TIMES | Model Number: | ST5015HB |
Voltage: | 5v 12v 24v | Power: | 1.65-1.92w | Air Volume: | 25-35CFM |
Speed: | 3500-5500RPM | Certification: | CE |
Product Description
Specifications
1. waterproof dc brushless blower fan2.size:50*50*15mm
3.long-life,waterproof
4.ball bearing
5.rated voltage:5v 12v 24v
Frame size(mm) | 50*50*15mm | |
Bearing type | ball bearing/sleeve | |
Rated voltage | 5v 12v 24v | |
Rated speed | 3500-5500RPM | |
Max air flow | 25-35CFM | |
Max pressure | 0.28-0.46inch-H2O | |
Max noise | 27-30dB | |
Functions | by impedance,FG | |
Safety approvals | CE ROHS | |
Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame | |
Insulation resistance | 100M ohm between lead wire and frame(DC 500V) | |
Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |
Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |
Operation temperature | -10~80 degree C(+14~176 degree F) | |
Storge temperature | -40~75 degree C(-40~167 degree F) | |
Protection | Motor protection and polarity protection | |
Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 | |
fan blade material | Black PBT (UL94V-0) glass filled | |
frame material | PBT | |
Weight | 30g | |
