Specifications

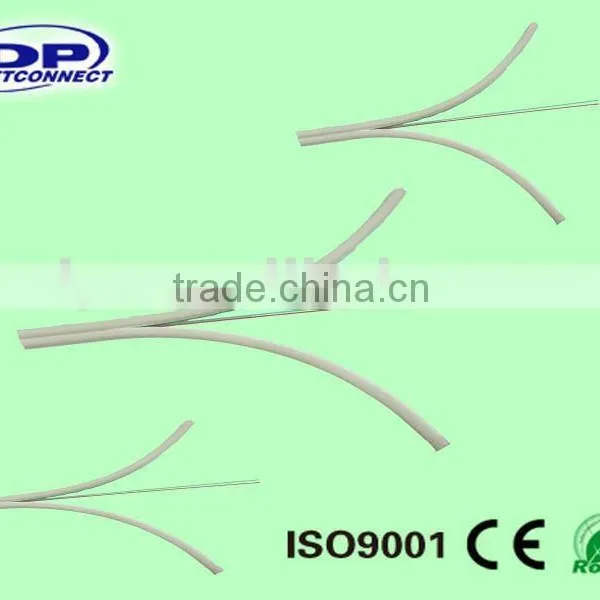

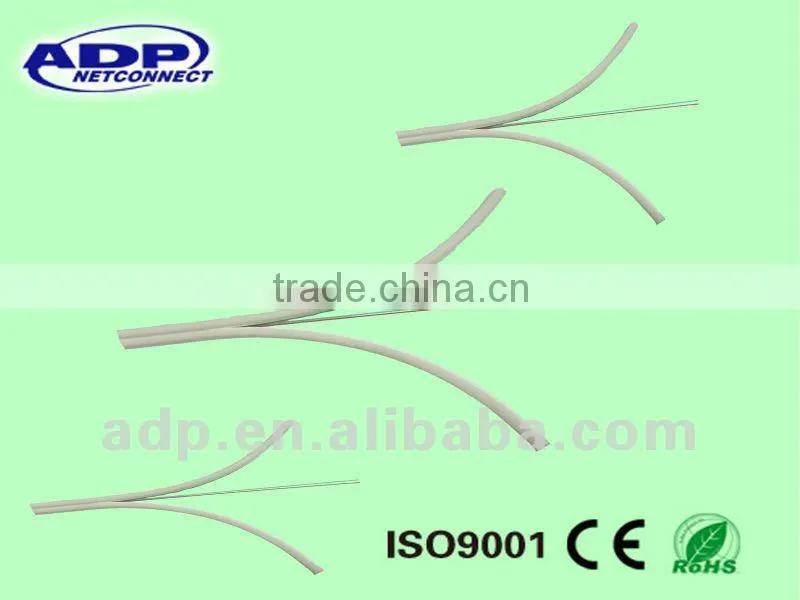

ADP drop Indoor FTTH Fiber optic cableButterfly lead-in cable for FTTH
factory price LSZH PE
G.657 single mode
ADP drop Indoor FTTH Fiber optic cable G.657 fiber
Description:
The Fiber, Eighter single-mode or multi-mode are positioned in a loose tube made of high modulus plastic, the tube is filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and waterlight. Two parallel steel wires are placed a the sides of cable. The cable is completed with PE.
Charactoristics:
- high bandwidth and excellent communication transmission property;
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber ;
- Single steel wire as the additional strength member ensures good performance of tensile strength;
- Simple structure, light weight and high practicability;
- Novel flute design, easily strip and splice, simplify the installation and maintenance;
- Low smoke, zero halogen and flame retardant sheath.
- support the internet , catv and telephone 3 in 1
- flexible network construction reduce the cost of installation.
-
Support more network increment service in future
Technical Parameters
Fiber Count
Cable Diameter
mmCable Weight
kg/kmTensile Strength
Long/Short Term
NCrush Resistance
Long/Short Term
N/100mmBending Radius
Static
/Dynamic
mm1
(2.0±0.2)×(3.0±0.2)
8
30/60
300/1000
15/30
2
(2.0±0.2)×(3.4±0.2)
8.5
30/60
300/1000
15/30
1
(2.0±0.2)×(3.8±0.2)
9
30/60
300/1000
15/30
4
(2.0±0.2)×(4.0±0.2)
10
30/60
300/1000
15/30
Storage/Operating Temperature : -20°C to + 60°C
