new type fiber optic cable with copper power wire
Description
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Characteristics
Good flexibility and mechanical properties
Opto and electricity integrated, fully save pipeline resources
Electric and optical cable maintain relatively independent structure, easy to import,export and link when installation
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs
Larger operating temperature range
Larger construction temperature range
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission
Technology advantages
Perfect design for transmission lines, highly effect for electricity saving.
Opto and electricity integrated, conveys electric energy and information at the same time, and keep monitoring wire lines
Optical fiber compounded in the wire, preventing fiber broken and split accidents by ground lightning
Preventing cable suffered corrosion, ruinning or fiber broken accidents caused by field strength.
Additional load brings no hidden danger for original lines
Application Field
Telecommunications network
Construction of communication base stations in villages, remote areas in cities and towns
Residential areas and buildings FTTH
Security monitoring project
Others occasion which information together with electric power at the same time
Standards
Stretching, crushing, impacting, repeated bending, torsion, winding and loss complies with YD / T 901-2001.
Optical Characteristics
G.652 |
50/125 |
62.5/125 |
||
Maximum attenuation |
@850nm |
|
3.5dB/km |
3.5dB/km |
@1300nm |
|
1.5dB/km |
1.5dB/km |
|
@1310nm |
0.45dB/km |
|
|
|
@1550nm |
0.30dB/km |
|
|
|
Typical attenuation |
@850nm |
|
3.0dB/km |
3.0dB/km |
@1300nm |
1.0dB/km |
1.0dB/km |
||
@1310nm |
0.40dB/km |
|
|
|
@1550nm |
0.25dB/km |
|
|
|
Minimum bandwidth |
@850nm |
|
400MHz·km |
160MHz·km |
@1300nm |
|
800MHz·km |
500MHz·km |
Technical Parameters

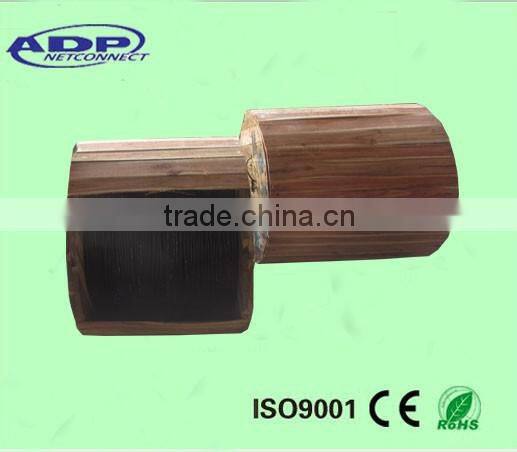

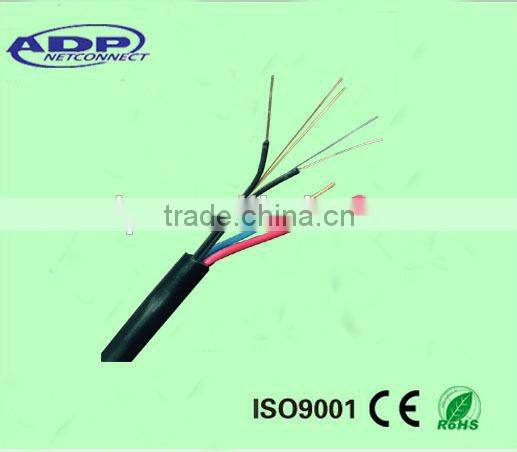

Cable image
Shenzhen ADP Cables Co.,Ltd
MS Joan Xia
Skype: sales17joan
Mob: 86 13543268433
Send Inquiry to This Supplier
